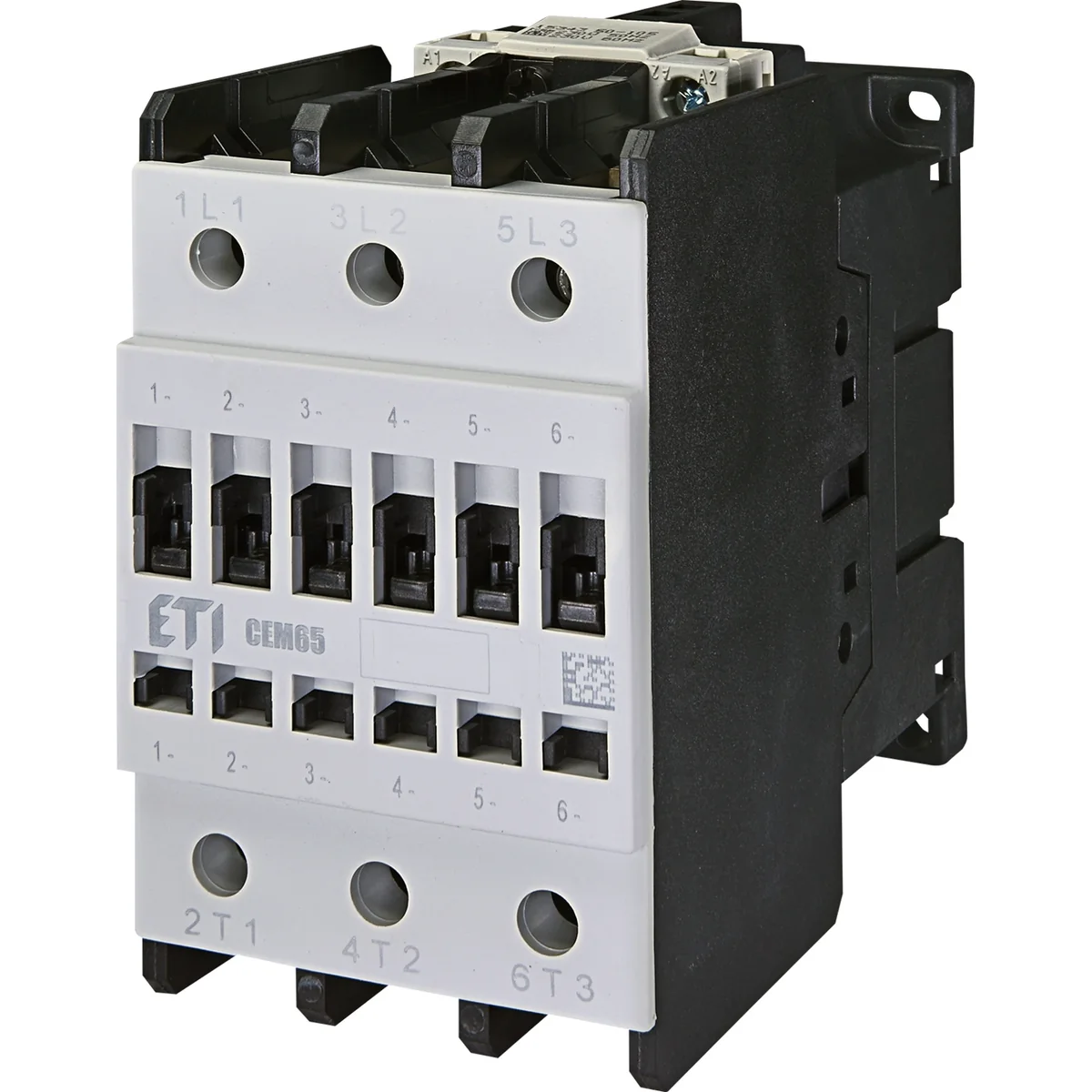

CEM65.00-24V-DC air contactor 004649200
local index:
ATA051ETIP
Catalog No:
004649200
EAN code:
7890355109755
Manufacturer:
ETI POLAM
Number of poles: 3
Rated insulation voltage [V]: 1000
Working temperature [°C]: from -25 to +55
Price:
422,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
These contactors are used for remote switching on and off of electric motors and other electric energy receivers up to 160 kW (for U=400V cat. AC3).
Advantages:
< ul>Technical data
-
Number of poles3
-
Working temperature [°C]from -25 to +55
-
Compliance with standardsIEC/EN 60 947, DIN VDE 0660, UL, CSA
-
Rated insulation voltage [V]1000
-
TypeCEM65.00-24V DC
-
PKWIU27.12.23.0
Other technical data
-
Rated control supply voltage DC24 ... 24 V
-
Rated operation current Ie at AC-1, 400 V110 A
-
Rated operation power at AC-3, 400 V30 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitFrame clamp
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V65 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally open contacts as main contact3
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
