el12 Electrical apparatus contactors AC contactors

CEM50.11-230-50/60Hz air contactor 004648133

local index:
ATA060ETIP
Catalog No:
004648133
EAN code:
7890355108673

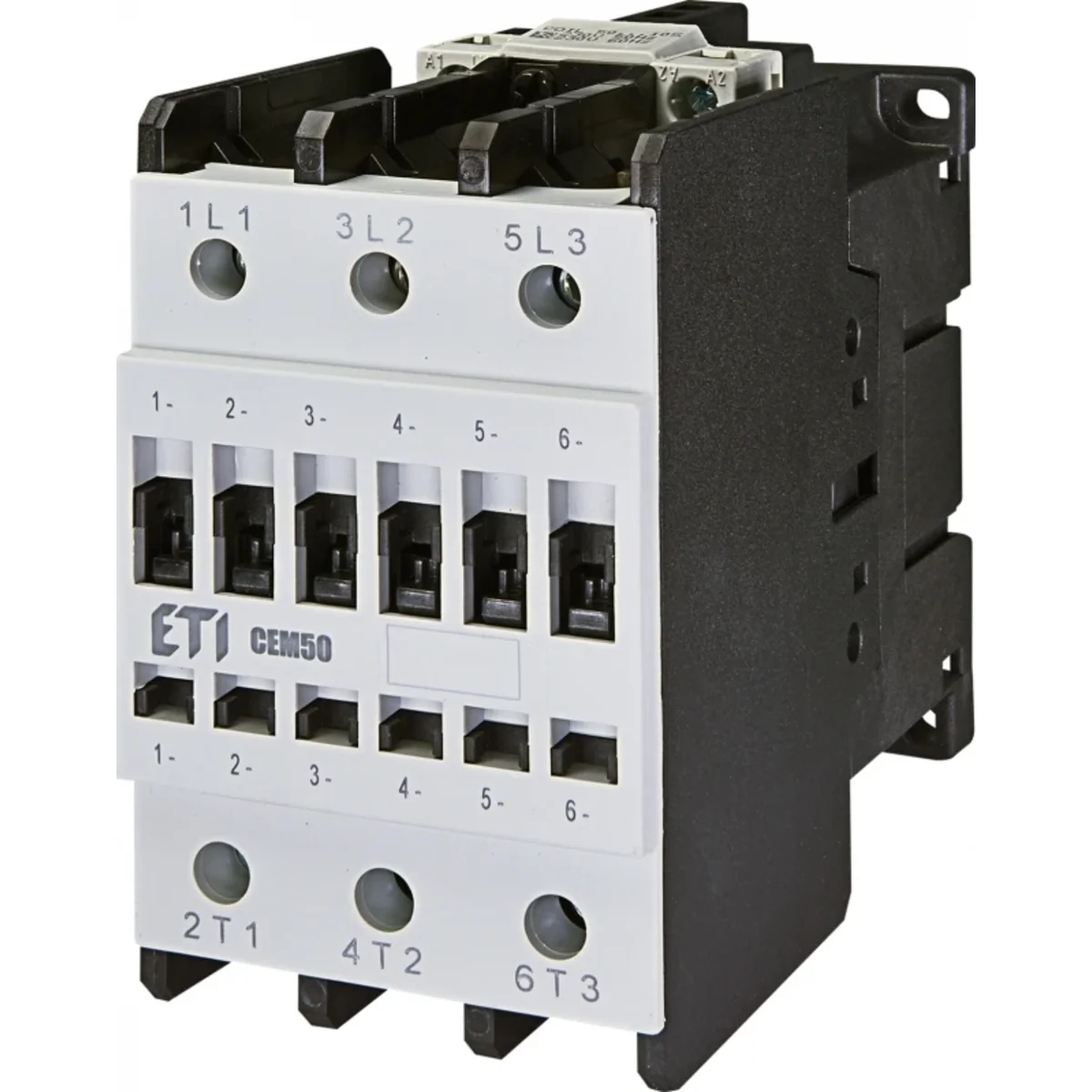

CEM50.11-230-50/60Hz air contactor
CEM50.11-230-50/60Hz air contactor

Click on the photo to enlarge

Manufacturer: ETI POLAM
Number of poles: 3
Rated insulation voltage [V]: 1000
Working temperature [°C]: from -25 to +55
See full description
Price:
116,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Files to download

Product description

These contactors are used for remote switching on and off of electric motors and other electricity receivers with a power of up to 160 kW (for U=400V cat. AC3).

Advantages:

< ul>
  •  possibility of attaching auxiliary contacts, mechanical interlock and surge arresters,
  •  mounting on a TH35 rail or with screws,
  •   ;very good switching parameters, high mechanical and electrical durability,
  •  universal auxiliary contacts suitable for all contactors.

    • Technical data

    • Number of poles
      3
    • Working temperature [°C]
      from -25 to +55
    • Compliance with standards
      IEC/EN 60 947, DIN VDE 0660, UL, CSA
    • Rated insulation voltage [V]
      1000
    • Type
      CEM50.11-230-50/60Hz
    • PKWIU
      27.12.23.0

    Other technical data

    • Rated control supply voltage AC 50 Hz
      230 ... 230 V
    • Voltage type for actuating
      AC
    • Rated operation current Ie at AC-3, 400 V
      50 A
    • Modular version
      No
    • Number of auxiliary contacts as normally closed contact
      1
    • Number of normally open contacts as main contact
      3
    • Rated control supply voltage AC 60 Hz
      230 ... 230 V
    • Rated operation current Ie at AC-1, 400 V
      80 A
    • Rated operation power at AC-3, 400 V
      22 kW
    • Number of auxiliary contacts as normally open contact
      1
    • Type of electrical connection of main circuit
      Frame clamp
