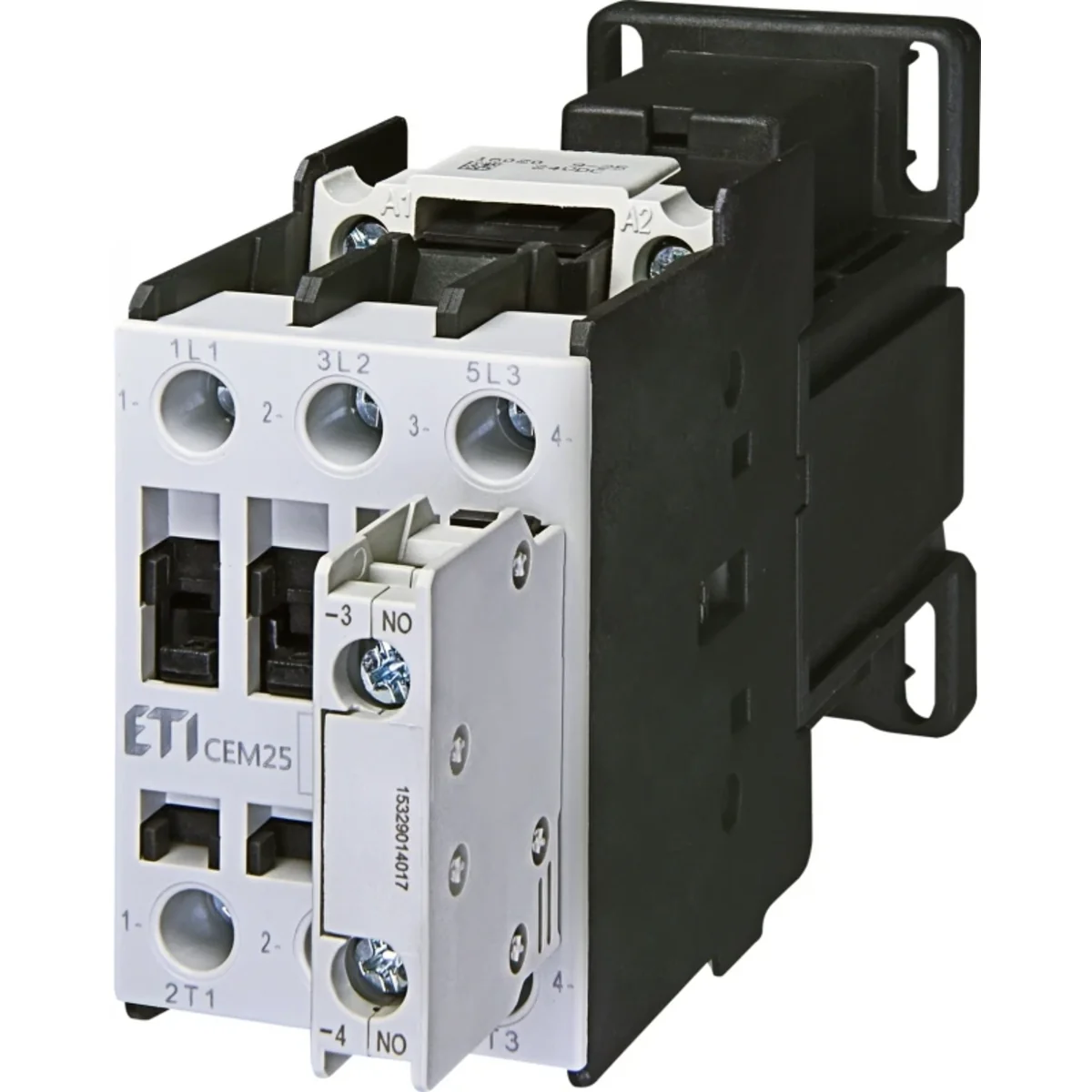

CEM25.10-24V-DC air contactor 004645220
Lokaler Index:
ATA023ETIP
Katalognummer:
004645220
EAN-Code:
7890355109571
Hersteller:
ETI POLAM
Number of poles: 3
Rated insulation voltage [V]: 690
Working temperature [°C]: from -25 to +55
Preis:
67,53 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
These contactors are used for remote switching on and off of electric motors and other electric energy receivers up to 160 kW (for U=400V cat. AC3).
Advantages:
< ul>Technische Daten
-
Number of poles3
-
Working temperature [°C]from -25 to +55
-
Compliance with standardsIEC/EN 60 947, DIN VDE 0660, UL, CSA
-
Rated insulation voltage [V]690
-
TypeCEM25.10-24VDC
-
PKWIU27.12.23.0
Weitere technische Daten
-
Rated control supply voltage DC24 ... 24 V
-
Rated operation current Ie at AC-1, 400 V45 A
-
Rated operation power at AC-3, 400 V11 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitFrame clamp
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V25 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally open contacts as main contact3
Hersteller-Details
-
HerstellerETI Polam Sp. z o.o.
-
Adresse06-100 Pułtusk Jana Pawła II 18 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Sztuka | |
| Menge | 1 stk. | 1 stk. |
| Gewicht (kg) | 0,499 | - |
