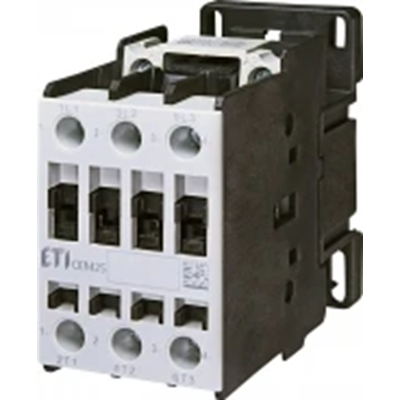

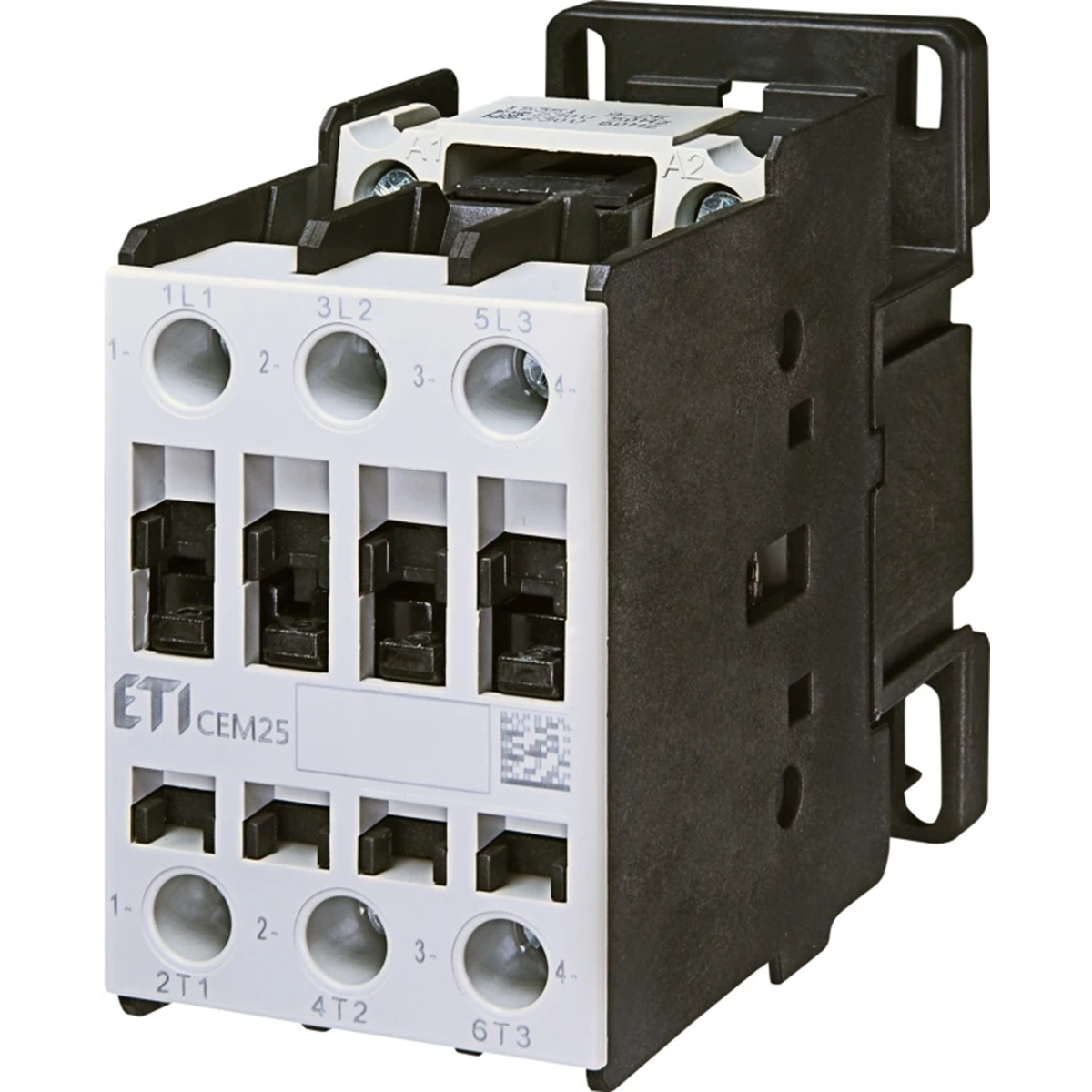

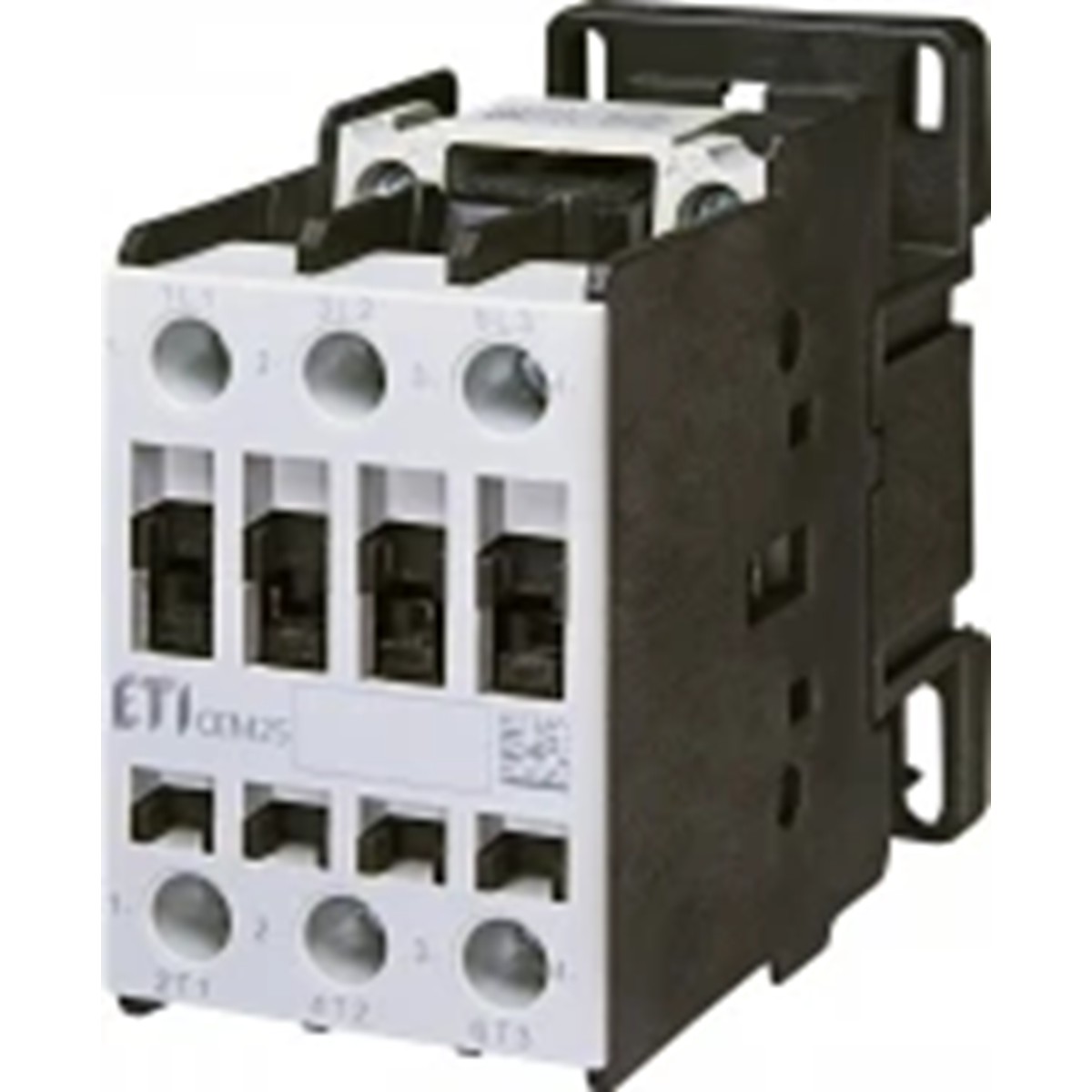

CEM25.10-24V-50/60Hz air contactor 004645120
local index:
ATA031ETIP
Catalog No:
004645120
EAN code:
7890355108338
Manufacturer:
ETI POLAM
Rated voltage [V]: 24
Price:
42,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
These contactors are used for remote switching on and off of electric motors and other electric energy receivers up to 160 kW (for U=400V cat. AC3).
Advantages:
< ul>Technical data
-
Rated voltage [V]24
-
PKWIU27.12.23.0
Other technical data
-
Rated control supply voltage AC 50 Hz24 ... 24 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V25 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally open contacts as main contact3
-
Rated control supply voltage AC 60 Hz24 ... 24 V
-
Rated operation current Ie at AC-1, 400 V45 A
-
Rated operation power at AC-3, 400 V11 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitFrame clamp
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
