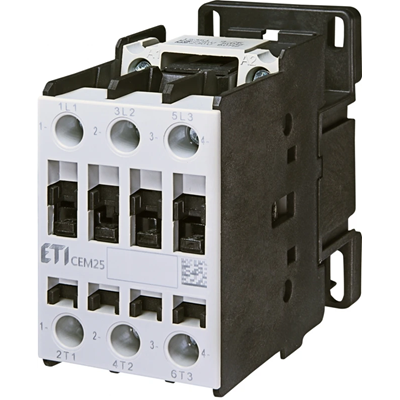

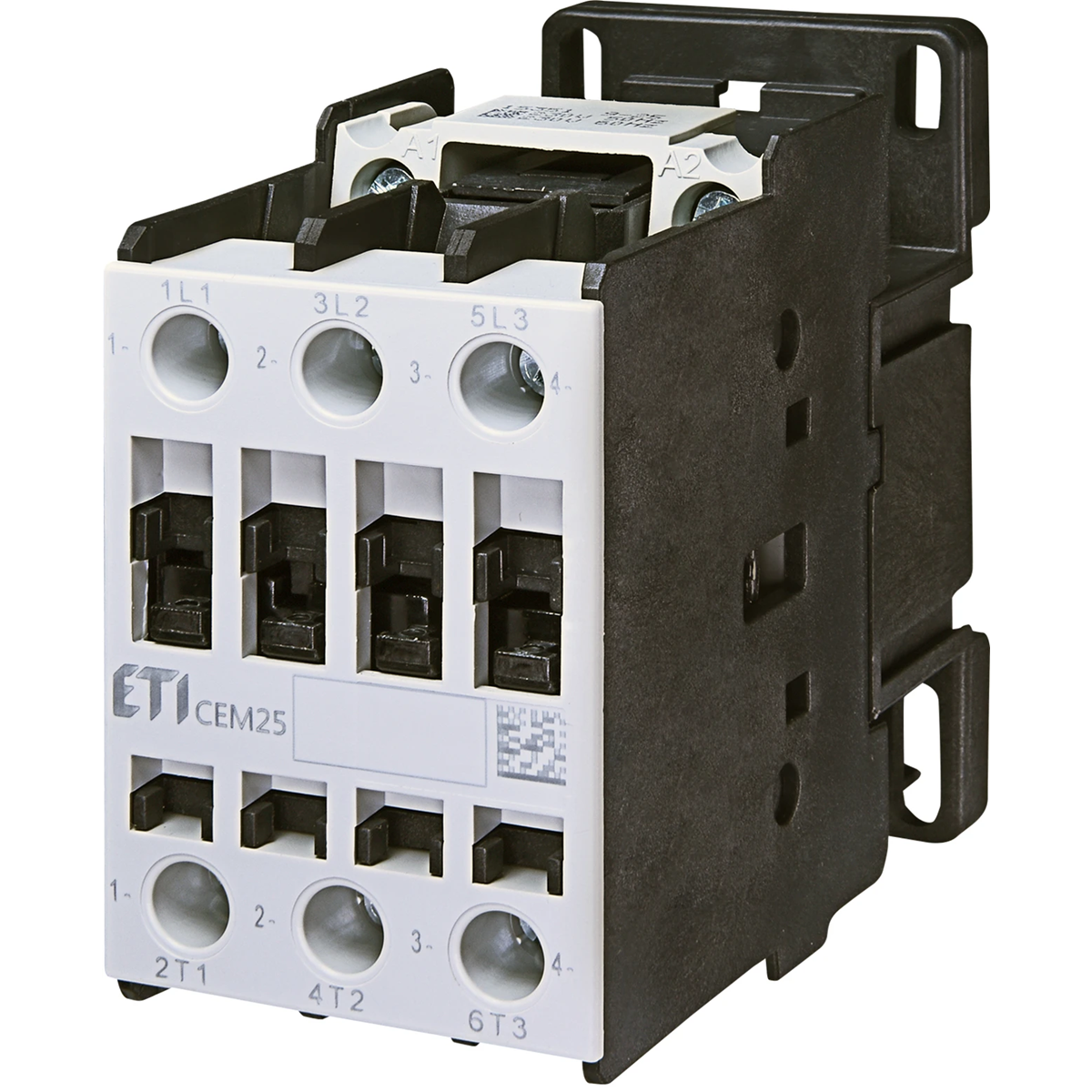

CEM25.01-230-50/60Hz air contactor 004645113
local index:
ATA055ETIP
Catalog No:
004645113
EAN code:
7890355108277
Manufacturer:
ETI POLAM
Number of poles: 3
Rated insulation voltage [V]: 690
Working temperature [°C]: from -25 to +55
Price:
42,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
These contactors are used for remote switching on and off of electric motors and other electricity receivers with a power of up to 160 kW (for U=400V cat. AC3).
Advantages:
< ul>Technical data
-
Number of poles3
-
Working temperature [°C]from -25 to +55
-
Compliance with standardsIEC/EN 60 947, DIN VDE 0660, UL, CSA
-
Rated insulation voltage [V]690
-
TypeCEM25.01-230-50/60Hz
-
PKWIU27.12.23.0
Other technical data
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V25 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally open contacts as main contact3
-
Rated control supply voltage AC 60 Hz230 ... 230 V
-
Rated operation current Ie at AC-1, 400 V45 A
-
Rated operation power at AC-3, 400 V11 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitFrame clamp
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
