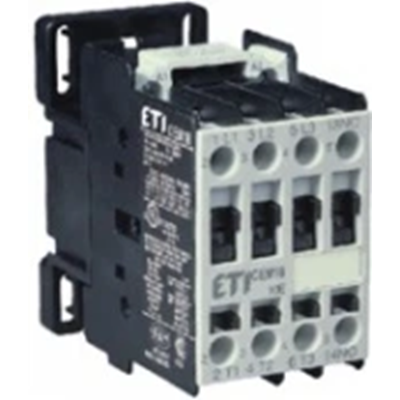

Name: CEM18.10-500-50/60Hz air contactor
Brand: ETI POLAM
SKU: ATA030ETIP
Price: 31.48 PLN

These contactors are used for remote switching on and off of electric motors and other electricity receivers with a power of up to 160 kW (for U=400V cat. AC3).

Advantages:

< ul>

possibility of attaching auxiliary contacts, mechanical interlock and surge arresters,

mounting on a TH35 rail or with screws,

;very good switching parameters, high mechanical and electrical durability,

universal auxiliary contacts suitable for all contactors.

Rated voltage [V]

500

PKWIU

27.12.23.0

Other technical data

Rated control supply voltage AC 50 Hz

500 ... 500 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

18 A
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally open contacts as main contact

3

Rated control supply voltage AC 60 Hz

500 ... 500 V
Rated operation current Ie at AC-1, 400 V

32 A
Rated operation power at AC-3, 400 V

7.5 kW
Number of auxiliary contacts as normally open contact

1
Type of electrical connection of main circuit

Frame clamp

CEM18.10-500-50/60Hz air contactor 004644126
