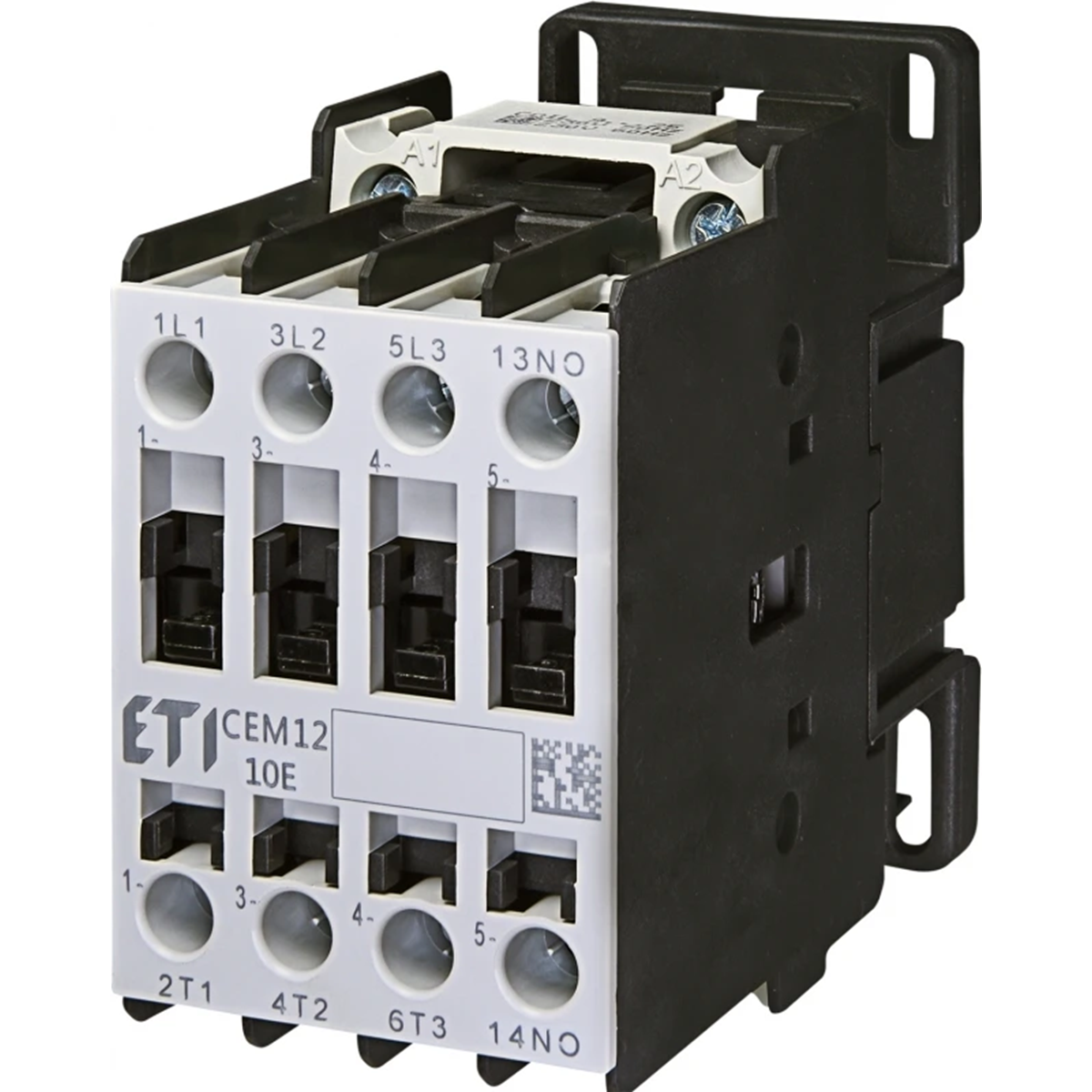

Click on the photo to enlarge

ETI POLAM

CEM12.10-42V-50/60Hz air contactor 004643125

local index:
ATA015ETIP
Catalog No:
004643125
EAN code:
5904722972919
Price:
25,90 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

These contactors are used for remote switching on and off of electric motors and other electric energy receivers up to 160 kW (for U=400V cat. AC3).

Advantages:

< ul>
  •  possibility of attaching auxiliary contacts, mechanical interlock and surge arresters,
  •  mounting on a TH35 rail or with screws,
  •   ;very good switching parameters, high mechanical and electrical durability,
  •  universal auxiliary contacts suitable for all contactors.
  • Technical data

    • Number of poles
      3
    • Working temperature [°C]
      from -25 to +55
    • Compliance with standards
      IEC/EN 60 947, DIN VDE 0660, UL, CSA
    • Rated insulation voltage [V]
      690
    • Type
      CEM12.10-42V-50/60Hz

    Other technical data

    • Rated control supply voltage AC 50 Hz
      42 ... 42 V
    • Voltage type for actuating
      AC
    • Rated operation current Ie at AC-3, 400 V
      12 A
    • Modular version
      no
    • Number of auxiliary contacts as normally closed contact
      0
    • Number of normally closed contacts as main contact
      0
    • Rated control supply voltage AC 60 Hz
      42 ... 42 V
    • Rated operation current Ie at AC-1, 400 V
      25 A
    • Rated operation power at AC-3, 400 V
      5.5 kW
    • Number of auxiliary contacts as normally open contact
      1
    • Type of electrical connection of main circuit
      Frame clamp
    • Number of normally open contacts as main contact
      3

    Catalog cards, diagrams, certificates
