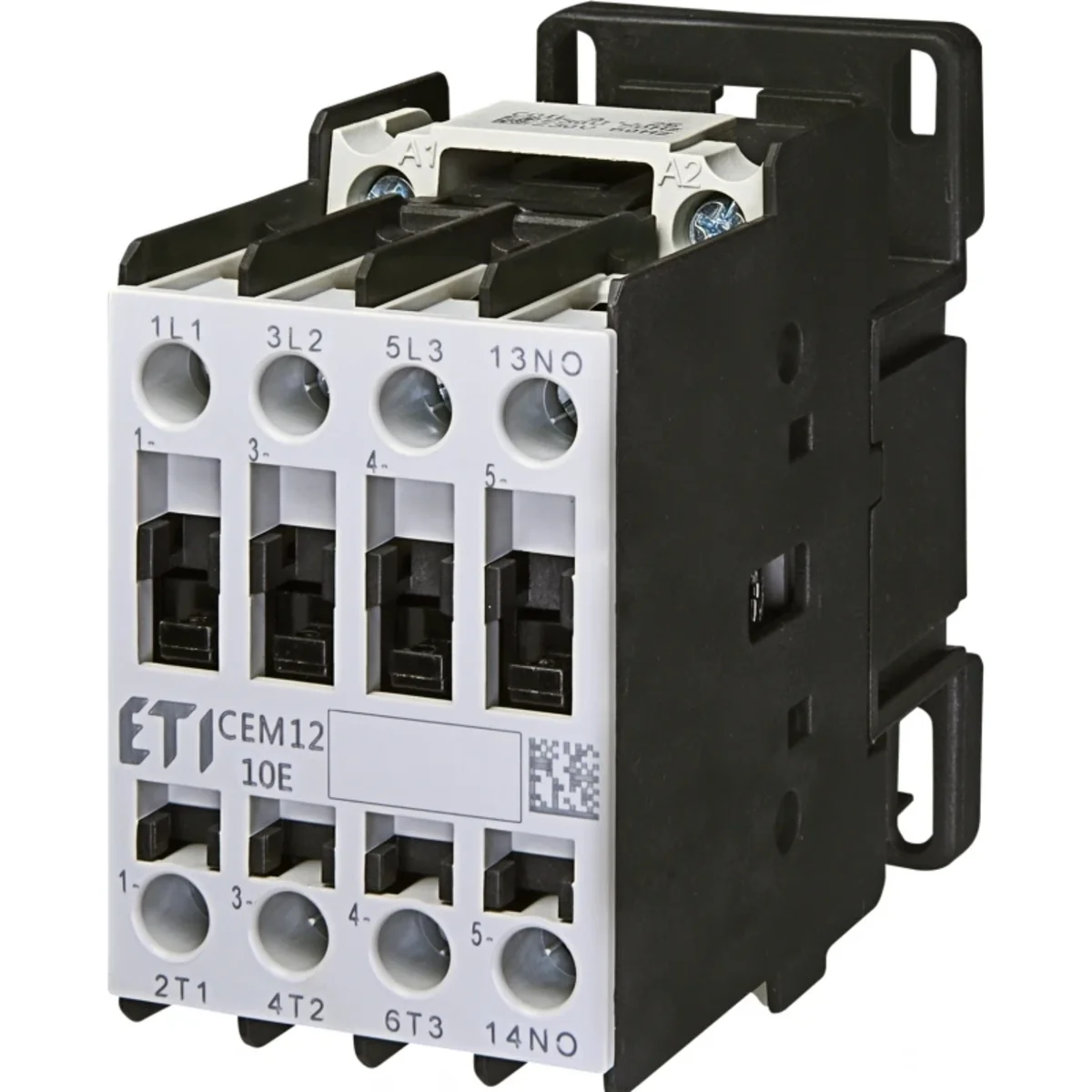

CEM12.10-400-50/60Hz air contactor 004643124
local index:
ATA032ETIP
Catalog No:
004643124
EAN code:
7890355108048
Manufacturer:
ETI POLAM
Rated voltage [V]: 400
Price:
25,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
These contactors are used for remote switching on and off of electric motors and other electric energy receivers up to 160 kW (for U=400V cat. AC3).
Advantages:
< ul>Technical data
-
Rated voltage [V]400
-
PKWIU27.12.23.0
Other technical data
-
Rated control supply voltage AC 50 Hz400 ... 400 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V12 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz400 ... 400 V
-
Rated operation current Ie at AC-1, 400 V25 A
-
Rated operation power at AC-3, 400 V5.5 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitFrame clamp
-
Number of normally open contacts as main contact3
