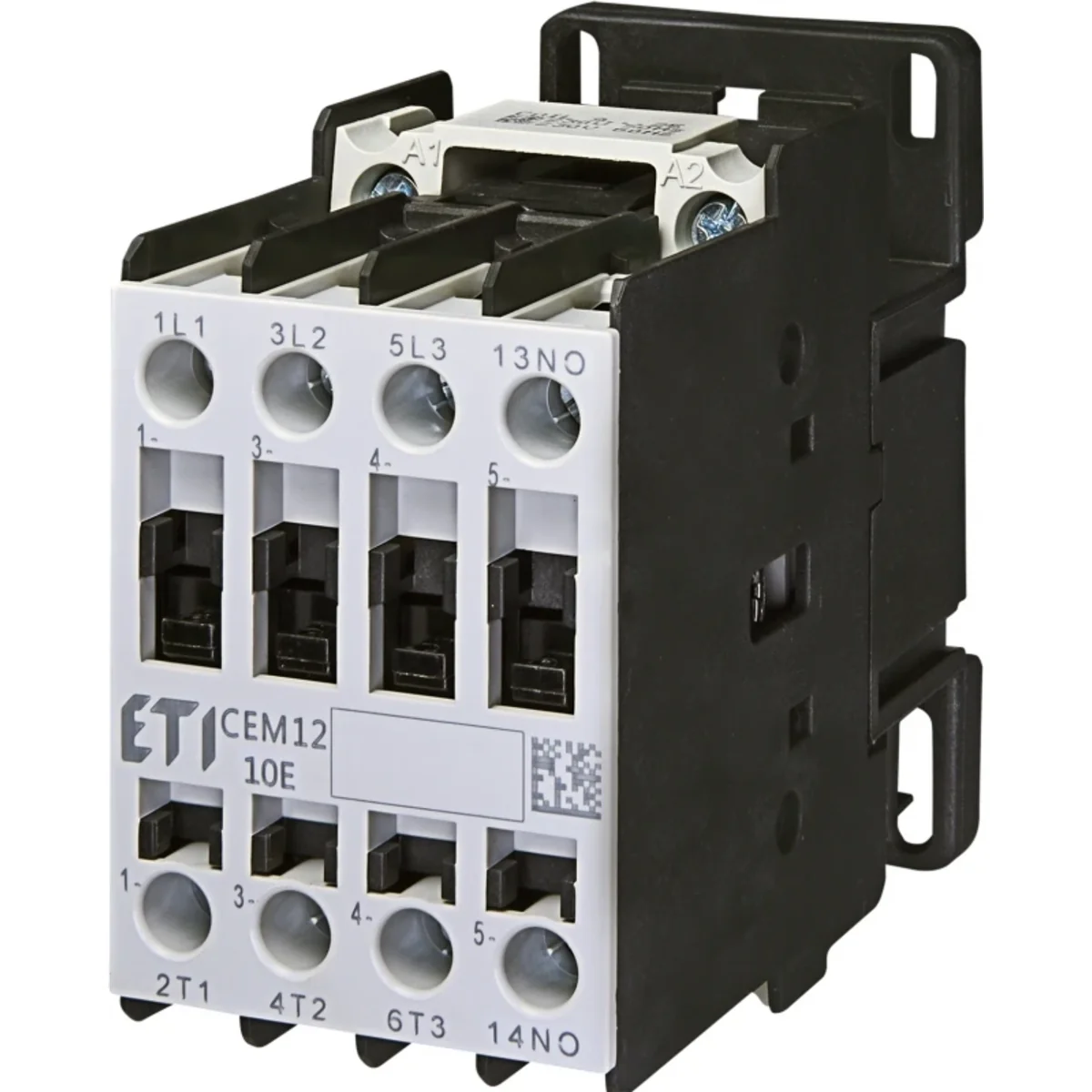

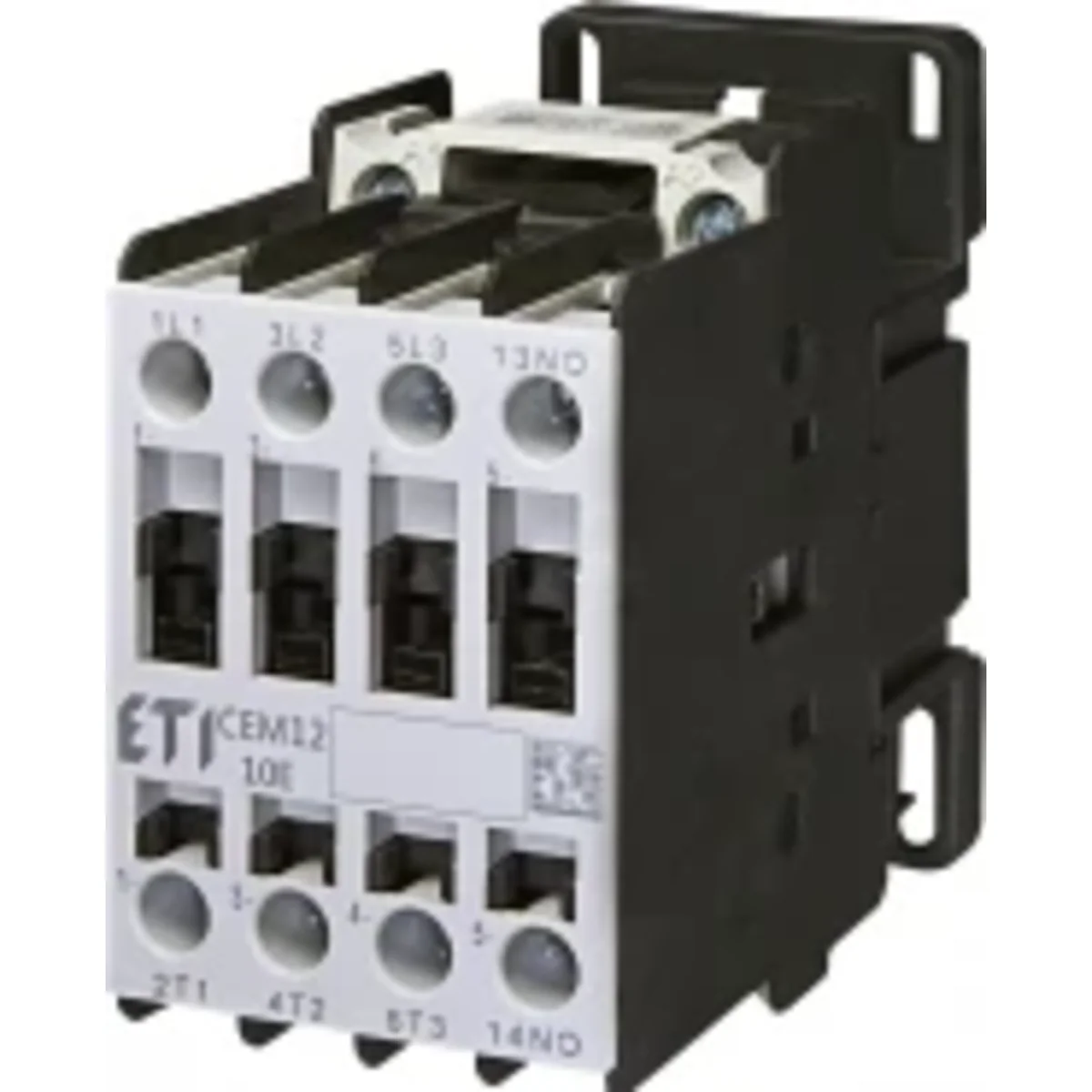

CEM12.10-230V-50/60Hz air contactor 004643123
local index:
ATA035ETIP
Catalog No:
004643123
EAN code:
7890355108024
Price:
25,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
These contactors are used for remote switching on and off of electric motors and other electricity receivers with a power of up to 160 kW (for U=400V cat. AC3).
Advantages:
< ul>Technical data
-
Number of auxiliary contacts NO1
-
Power [kW]22
-
PKWIU27.12.23.0
-
Number of poles3
-
Coil voltage [V]230
Other technical data
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V12 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz230 ... 230 V
-
Rated operation current Ie at AC-1, 400 V25 A
-
Rated operation power at AC-3, 400 V5.5 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitFrame clamp
-
Number of normally open contacts as main contact3
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
