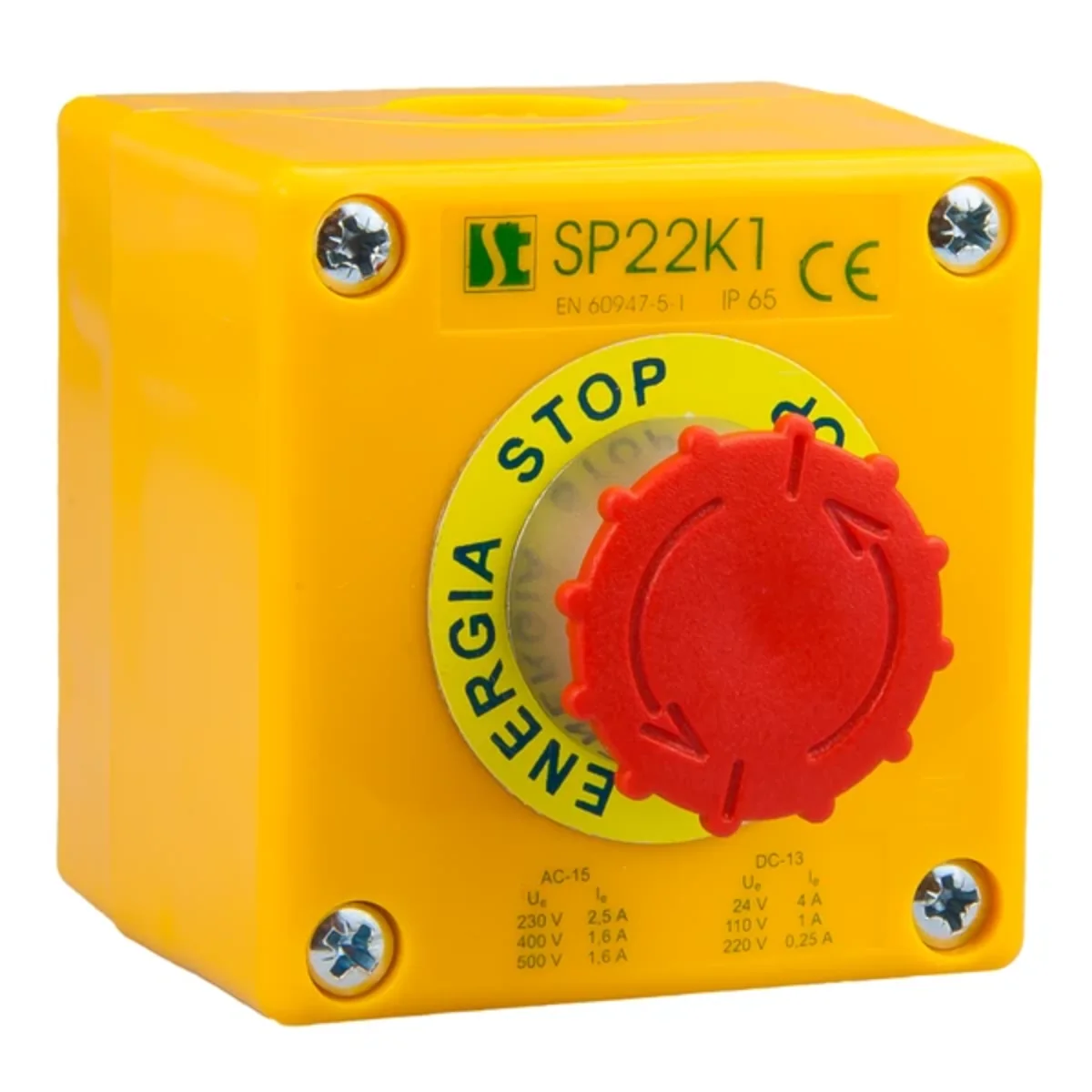

Cassette with rotary safety button 1 NC contact IP65 yellow 1x M20 gland SP22K1\05-1

local index:
AKS073SPAM
Catalog No:
SP22K1\05-1
EAN code:
5907723064539
Manufacturer: SPAMEL
Color: Yellow
Housing material: Plastic
Level of security: IP65
Price:
22,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 36 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cassette with rotary safety button 1 NC contact IP65 yellow 1x M20 gland

Technical data

  • Color
    Yellow
  • Level of security
    IP65
  • Housing material
    Plastic
  • Accurate color
    Yellow

Other technical data

  • Number of command positions
    1
  • Number of indicator lights
    0
  • Number of selector switches
    1
  • Suitable for emergency stop
    Yes
  • Rated control supply voltage DC
    24 ... 220 V
  • Housing material
    Plastic
  • Number of contacts as normally closed contact
    1
  • Degree of protection (IP)
    IP65
  • Number of push buttons
    1
  • Number of key switches
    0
  • Number of mushroom-shaped push-buttons
    1
  • Rated control supply voltage AC 50 Hz
    230 ... 500 V
  • Colour housing cover
    Grey
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
