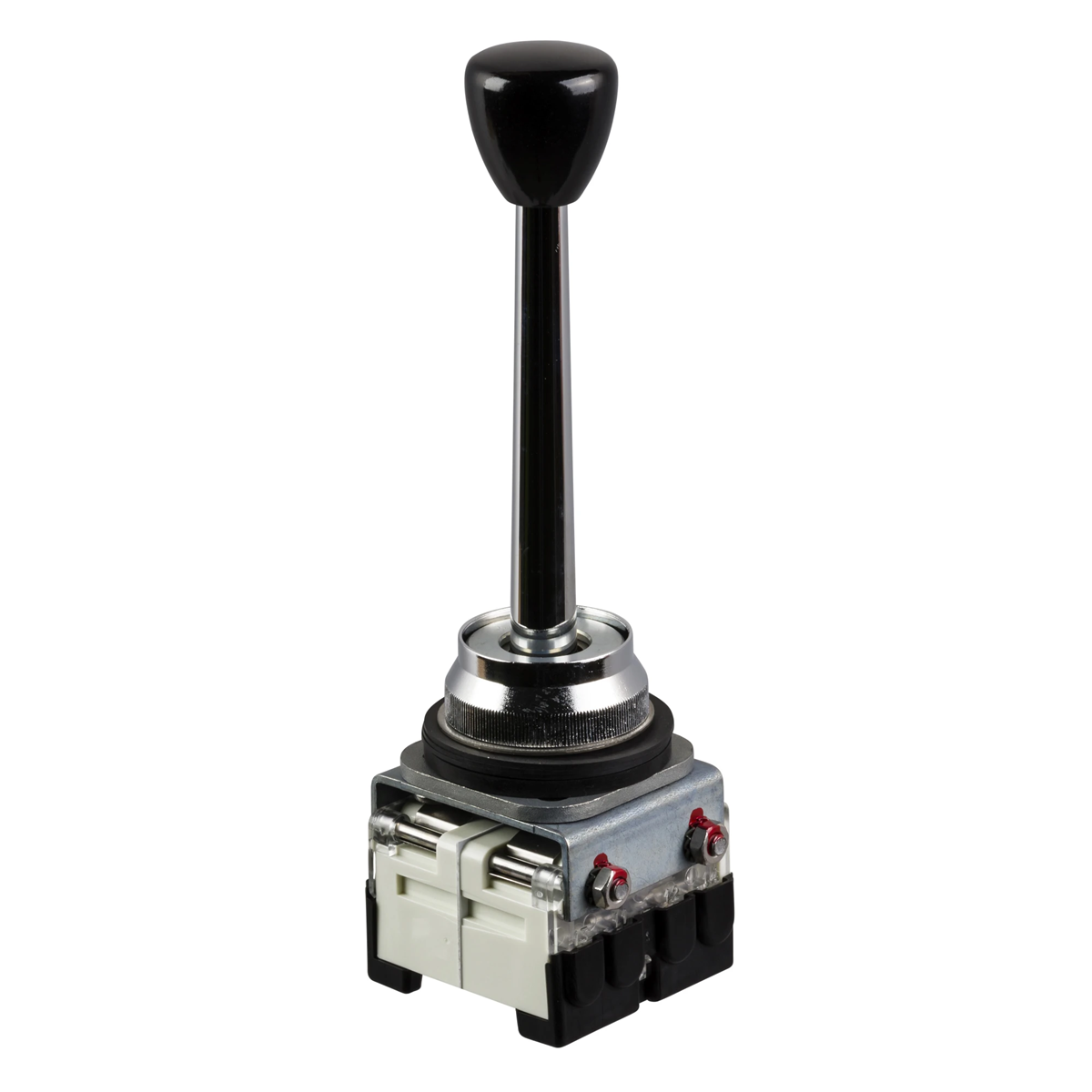

Bidirectional manipulator OZ 118mm XD2AL201

local index:
AKS3H9SCHN
Catalog No:
XD2AL201
EAN code:
3389110348705
Manufacturer: SCHNEIDER ELECTRIC
Height [mm]: 161
Price:
328,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Bidirectional manipulator OZ 118mm

Technical data

  • Height [mm]
    161
  • PKWIU
    27.11.61.0

Other technical data

  • Rated operation current Ie at AC-21, 400 V
    10 A
  • Joy stick length
    118 mm
  • Number of normally open contacts per actuation direction
    0
  • Number of make-and-break contacts per direction
    0
  • Locking in 0-position
    No
  • Analogue output signal configurable
    No
  • Material front ring
    Metal
  • Degree of protection (IP)
    IP40
  • Centre mounting, hole diameter
    30 mm
  • Number of actuation directions
    2
  • Number of normally closed contacts per actuation direction
    0
  • With retraction in 0-position
    No
  • Coder
    No
  • With front ring
    Yes
  • Colour front ring
    Chrome
  • Degree of protection (NEMA)
    Other
