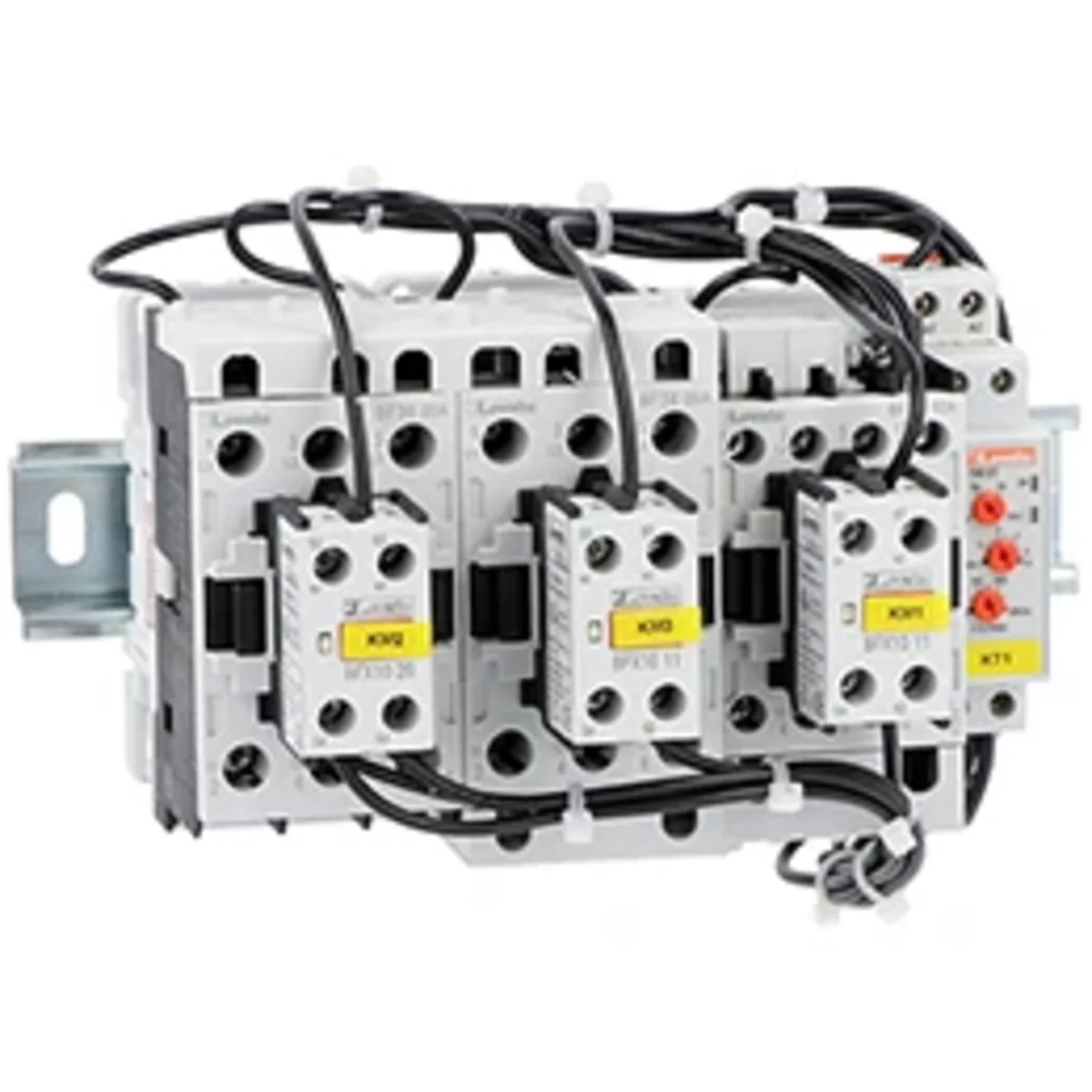

BFA03870230 Star-delta starter (30kW), assembled, without housing, starting time up to 12 seconds and a maximum of 30 starts per hour, max. operating current 60A. Coil voltage 230VAC 50/60Hz BFA03870230
Místní index:
ATR001LOVA
Katalogové číslo.:
BFA03870230
EAN kód:
8013975173220
Výrobce:
LOVATO
Cena:
1 813,27 zł
gross / kusů.
(včetně DPH 23%)
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout
Dotaz na výrobek
Technické údaje
-
PKWIU27.12.31.0
Další technické údaje
-
Type of motor starterStar-delta starter
-
Rated control supply voltage AC 50 Hz0 ... 230 V
-
Voltage type for actuatingAC
-
Rated operation power at AC-3, 400 V30 kW
-
Rated operation current at AC-3, 400 V60 A
-
Number of auxiliary contacts as normally closed contact0
-
Temperature compensated overload protectionNo
-
Type of electrical connection for auxiliary- and control current circuitScrew connection
-
With transformerNo
-
External reset possibleNo
-
Degree of protection (IP)IP65
-
Supporting protocol for TCP/IPNo
-
Supporting protocol for CANNo
-
Supporting protocol for ASINo
-
Supporting protocol for Data-HighwayNo
-
Supporting protocol for SUCONETNo
-
Supporting protocol for PROFINET IONo
-
Supporting protocol for SERCOSNo
-
Supporting protocol for EtherNet/IPNo
-
Supporting protocol for DeviceNet SafetyNo
-
Supporting protocol for PROFIsafeNo
-
Supporting protocol for other bus systemsNo
-
Height90 mm
-
With short-circuit releaseNo
-
Rated control supply voltage AC 60 Hz0 ... 230 V
-
Rated operation power at AC-3, 230 V, 3-phase15 kW
-
Rated operation current Ie60 A
-
Number of auxiliary contacts as normally open contact0
-
Ambient temperature, upper operating limit60 °C
-
Type of electrical connection of main circuitScrew connection
-
Rail mounting possibleNo
-
Suitable for emergency stopNo
-
With fuseNo
-
Degree of protection (NEMA)Other
-
Supporting protocol for PROFIBUSNo
-
Supporting protocol for INTERBUSNo
-
Supporting protocol for ModbusNo
-
Supporting protocol for DeviceNetNo
-
Supporting protocol for LONNo
-
Supporting protocol for PROFINET CBANo
-
Supporting protocol for Foundation FieldbusNo
-
Supporting protocol for AS-Interface Safety at WorkNo
-
Supporting protocol for INTERBUS-SafetyNo
-
Supporting protocol for SafetyBUS pNo
-
Width198 mm
-
Depth135 mm
Podrobnosti o výrobci
-
VýrobceLOVATO ELECTRIC S.P.A.
-
Adresa24020 GORLE (Bergamo) Via Don E. Mazza 12 Włochy
-
E-mail
Velkoobjemová balení
| Typ obalu | Sztuka |
| Množství | 1 kusů. |
| Hmotnost (kg) | 1,780 |
| Šířka (m) | 0,133 |
| Délka (m) | 0,200 |
| Hloubka (m) | 0,155 |
