ETI POLAM

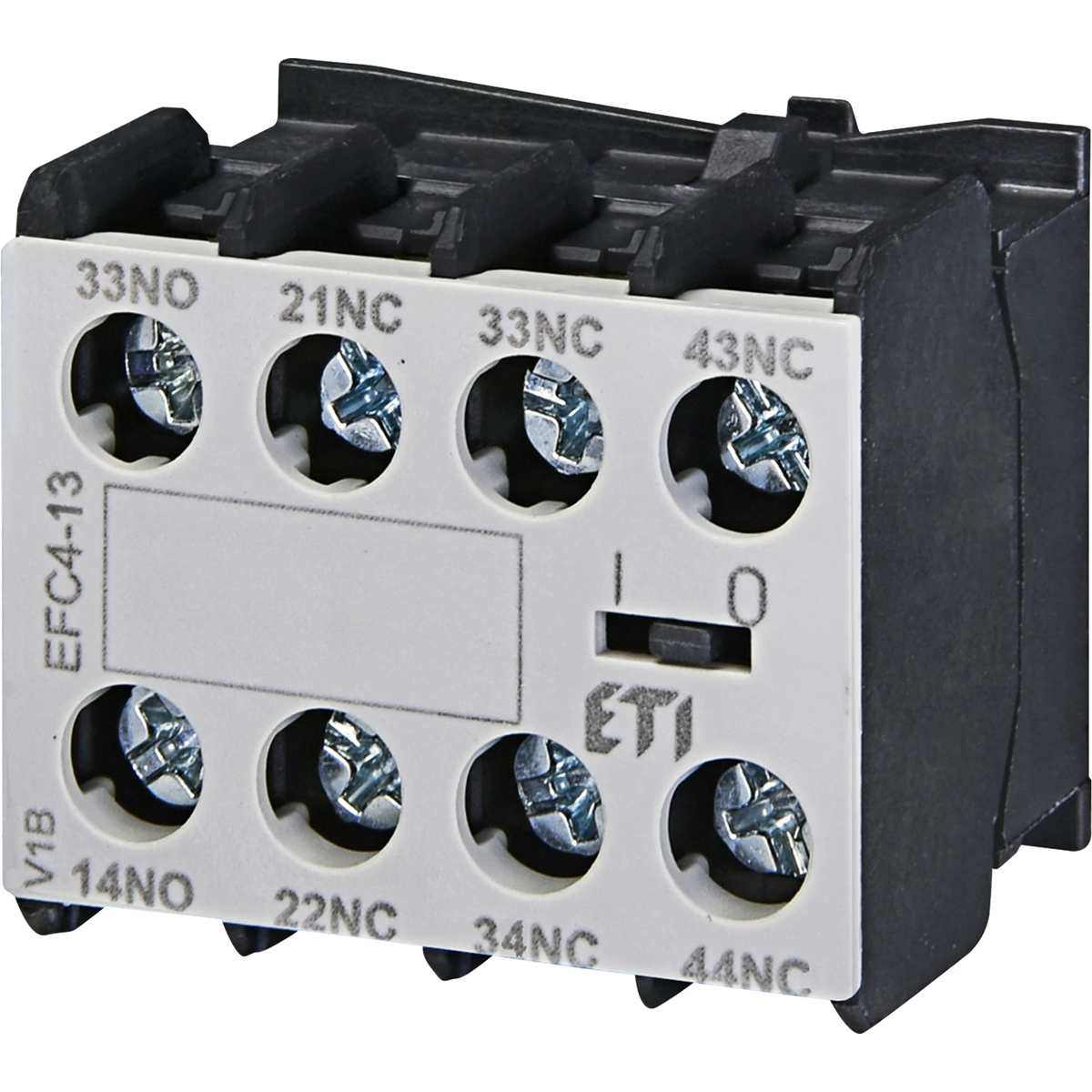

Auxiliary contacts EFC4-13 004641547

local index:
ATC009ETIP
Catalog No:
004641547
EAN code:
7890355553435
Price:
14,91 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Application - Miniature auxiliary contactors are designed to create complex control, regulation and automation systems. Due to their small dimensions, they allow you to reduce the amount of space needed in the switchgear. Additional time relays (on-delay, off-delay, star/delta relay) enable simple functions. Miniature motor contactors are designed for remote control and protection (together with thermal relays) of electric motors and other receivers, the power of which does not exceed 7.5 kW (at voltage 400 and AC3 operation).

Advantages:
→ AC-3 operating type up to 16A load.
→ Making contactors for AC and DC in the same size, which makes it easier to design and use.
→ Rated insulation voltage - 690.
→ Low power consumption and low power losses (heating) allow them to be controlled directly (without a relay) by a PLC.
→ wide range of accessories, compact design and quick mounting on a TH35 rail and on a printed circuit board.
→ Protection against accidental touch - IP20 rating

Technical data

  • Depth [mm]
    40
  • Weight [g]
    40
  • Width [mm]
    35
  • Height [mm]
    35

Other technical data

  • Number of contacts as normally open contact
    1
  • Rated operation current Ie at AC-15, 230 V
    10 A
  • Mounting method
    Front fastening
  • Number of contacts as normally closed contact
    3
  • Type of electric connection
    Screw connection

See other products in the category: Parts for contactors
