Auxiliary Contact for Miniature Circuit Breaker 6A 1Z+1R MZ201

Name: Auxiliary Contact for Miniature Circuit Breaker 6A 1Z+1R
Brand: HAGER
SKU: ATC001HAGE
Price: 24.24 PLN
Availability: InStock

local index:

ATC001HAGE

Catalog No:

MZ201

EAN code:

3250614562013

Auxiliary Contact for Miniature Circuit Breaker 6A 1Z+1R

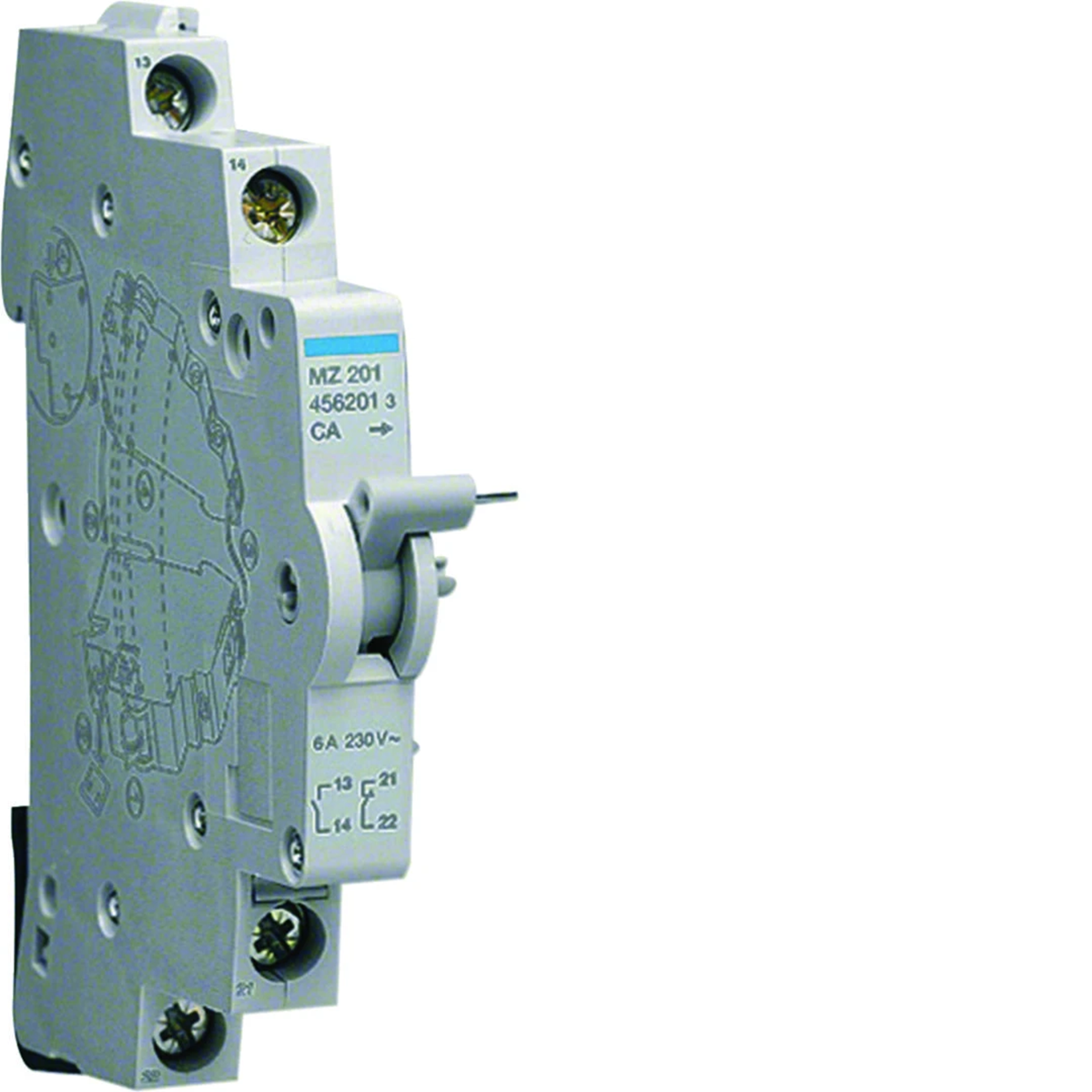

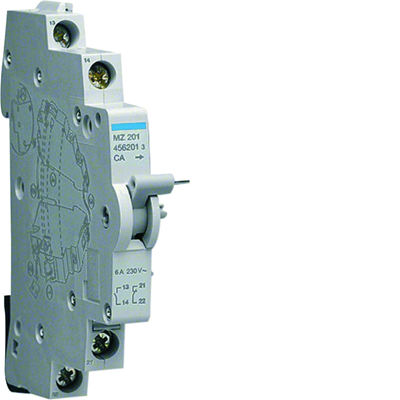

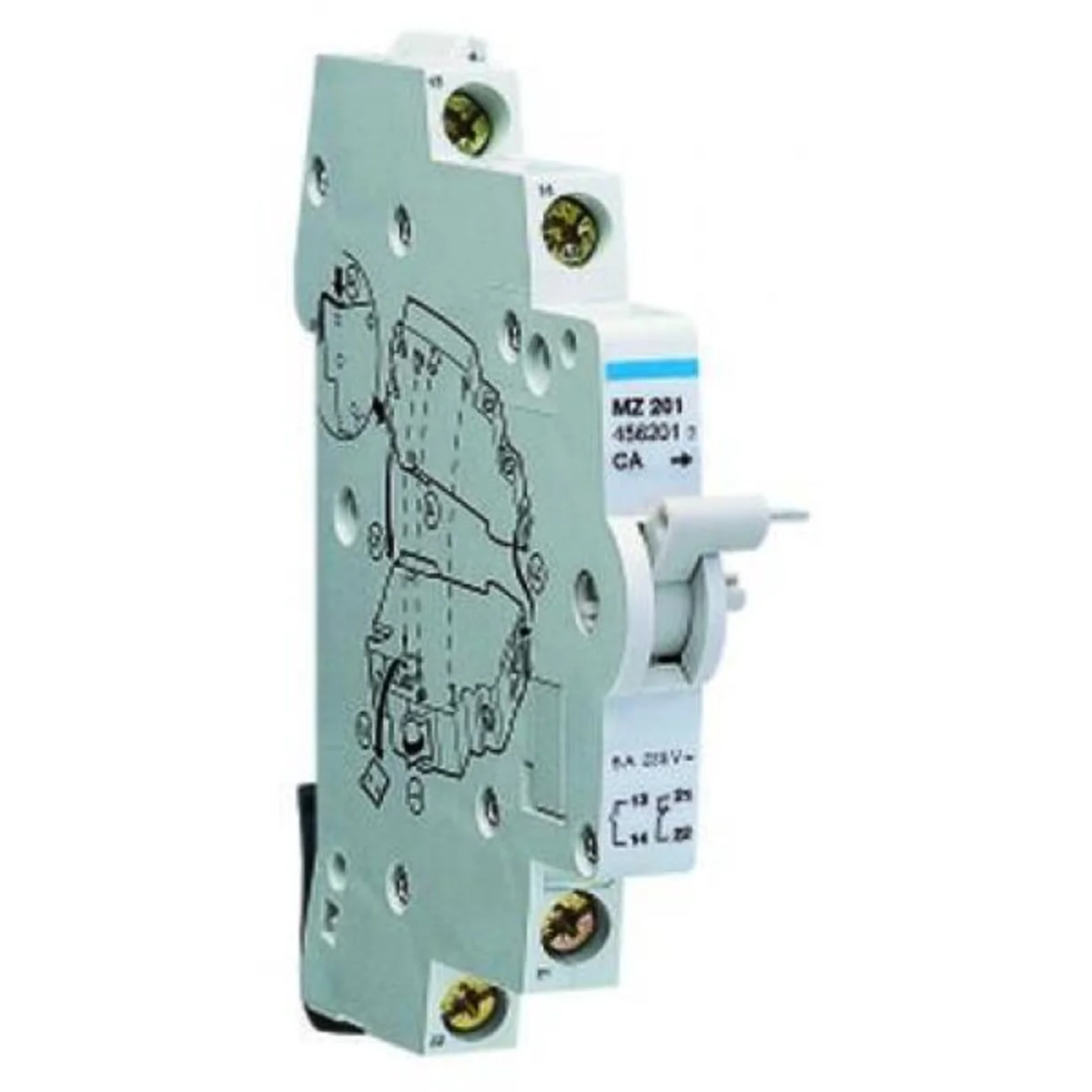

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 40

Number of modules: 0.5

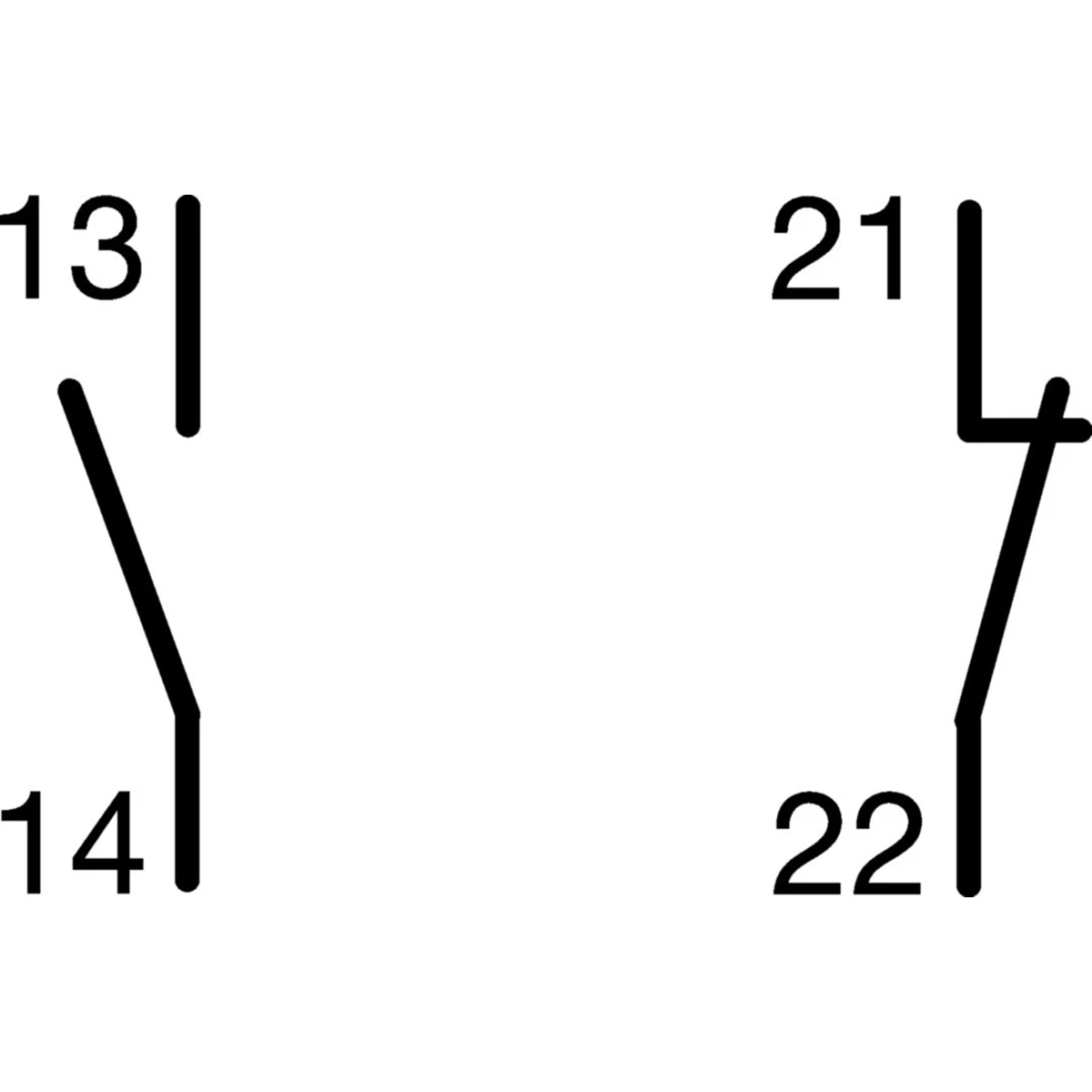

Number of contacts: 0NO 1NC

See full description

Price:

24,24 €

gross / pcs.

(including VAT 23%)

Accessible 19 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Auxiliary switch CA 6 A/230 V AC - signaling in case of tripping due to overload, short-circuit or differential current, during manual opening of the circuit breaker as well as remote tripping by means of shunt or undervoltage release

Technical data

Depth [mm]

40
Number of contacts

0NO 1NC
Rated voltage [V]

230
Width [mm]

9.5
Number of modules

0.5

Number of modules

0.5
Number of NC contacts

1
Rated insulation voltage [V]

4000
Height [mm]

80
PKWIU

27.12.23.0

Other technical data

Device fitting

Earth leakage circuit breaker and miniature circuit breaker (MCB)
Rated switch current

6 A
Voltage type for actuating

AC

Montowane fabrycznie

No
Rated voltage

415 V

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	108 pcs.	2592 pcs.
Weight (kg)	0,048	0,055	6,285	175,800
Width (m)	0,016	0,080	0,315	0,800
Length (m)	0,087	0,025	0,215	1,220
Depth (m)	0,069	0,095	0,365	1,200
