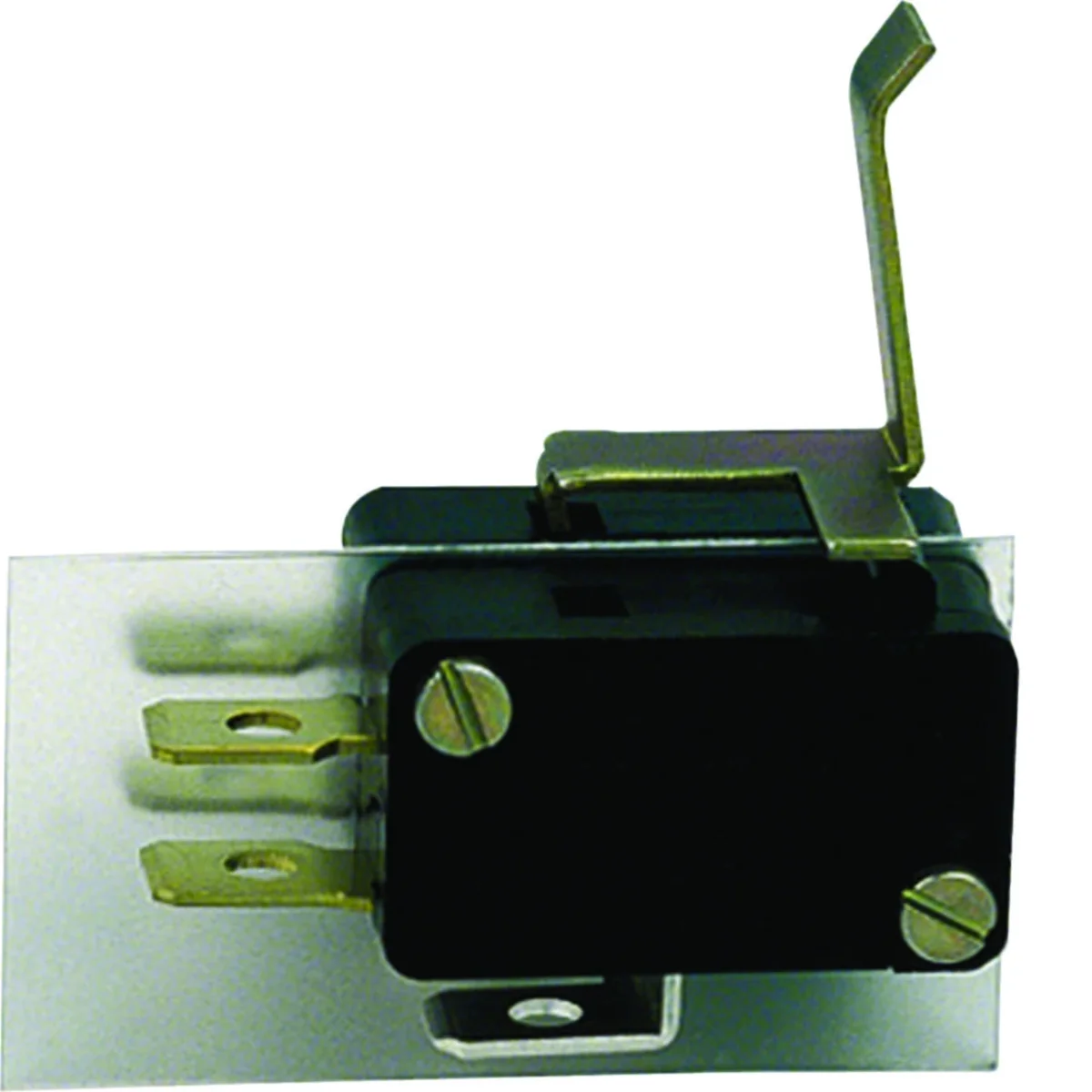

Auxiliary contact for load breakers 125-630A 1NO+1NC HZ023

local index:
ATC006HAGE
Catalog No:
HZ023
EAN code:
3250613360238
Manufacturer: HAGER
Number of contacts: 1NO 1NC
Rated current [A]: 16
Contact type: 1 switch
Price:
49,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Auxiliary contact for load switches:

  • 125-630A
  • 2x 1NC+R
  • front mounting
  • connection type: fast-on terminal

Technical data

  • Number of contacts
    1NO 1NC
  • Contact type
    1 switch
  • Rated switching voltage [V]
    250
  • Rated current [A]
    16
  • Connection type
    Fast-on clamp
  • PKWIU
    27.33.13.0

Other technical data

  • Number of contacts as change-over contact
    0
  • Number of contacts as normally closed contact
    1
  • Type of electric connection
    Flat plug-in connection
  • Number of contacts as normally open contact
    1
  • Rated operation current Ie at AC-15, 230 V
    5 A
  • Mounting method
    Front fastening

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 29 pcs. 696 pcs.
Weight (kg) 0,028 0,032 1,015 47,360
Width (m) 0,110 0,090 0,185 0,800
Length (m) 0,020 0,030 0,115 1,050
Depth (m) 0,150 0,120 0,245 1,200
