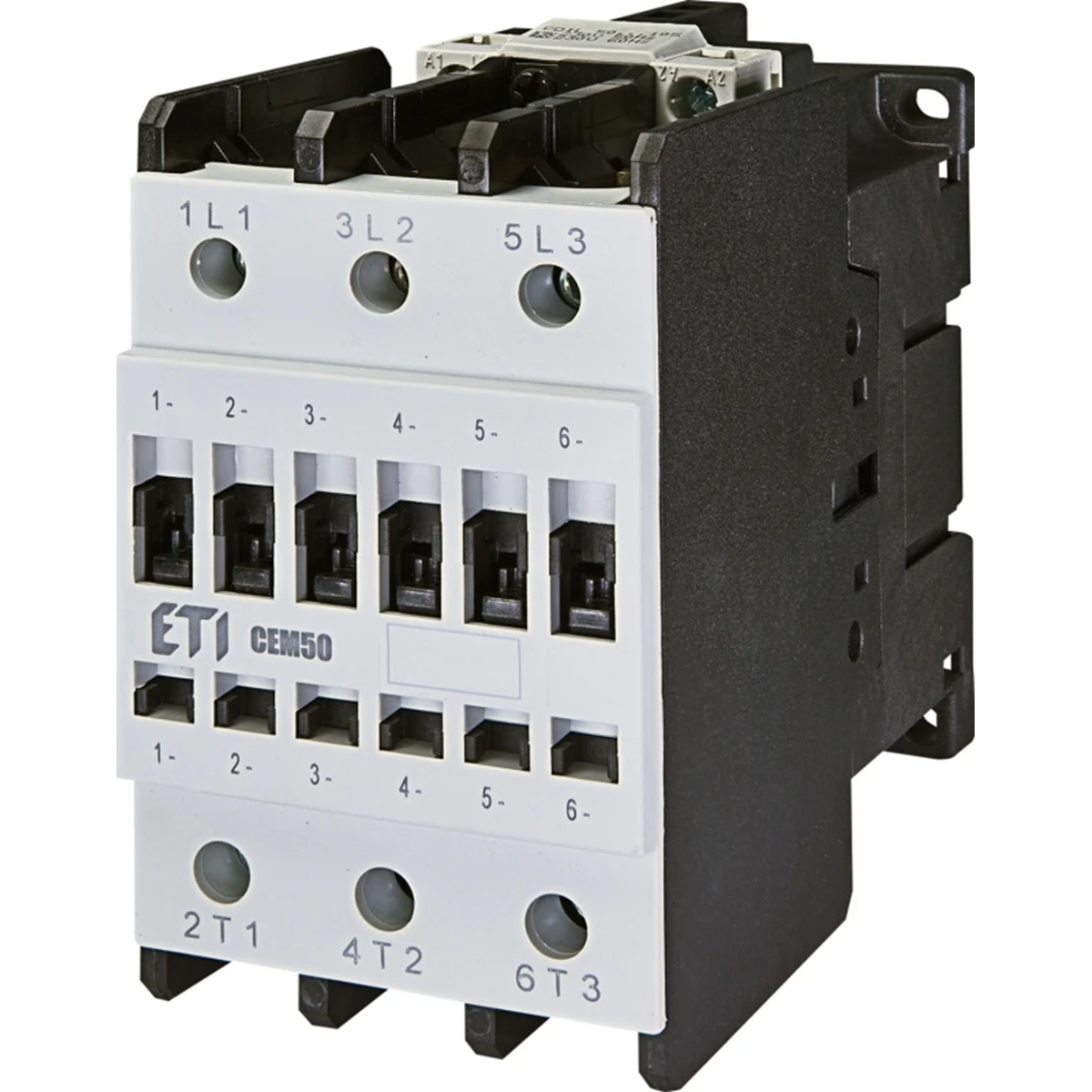

Air contactor CEM50.00-24V-50/60Hz 004648100
local index:
ATA014ETIP
Catalog No:
004648100
EAN code:
7890355108635
Manufacturer:
ETI POLAM
Number of poles: 3
Rated insulation voltage [V]: 1000
Working temperature [°C]: from -25 to +55
Price:
110,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
These contactors are used for remote switching on and off of electric motors and other electricity receivers with a power of up to 160 kW (for U=400V cat. AC3).
Advantages:
< ul>Technical data
-
Number of poles3
-
Working temperature [°C]from -25 to +55
-
Compliance with standardsIEC/EN 60 947, DIN VDE 0660, UL, CSA
-
Rated insulation voltage [V]1000
-
TypeCEM50.00-24V-50/60Hz
-
PKWIU27.12.23.0
Other technical data
-
Rated control supply voltage AC 50 Hz24 ... 24 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V50 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally open contacts as main contact3
-
Rated control supply voltage AC 60 Hz24 ... 24 V
-
Rated operation current Ie at AC-1, 400 V80 A
-
Rated operation power at AC-3, 400 V22 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitFrame clamp
