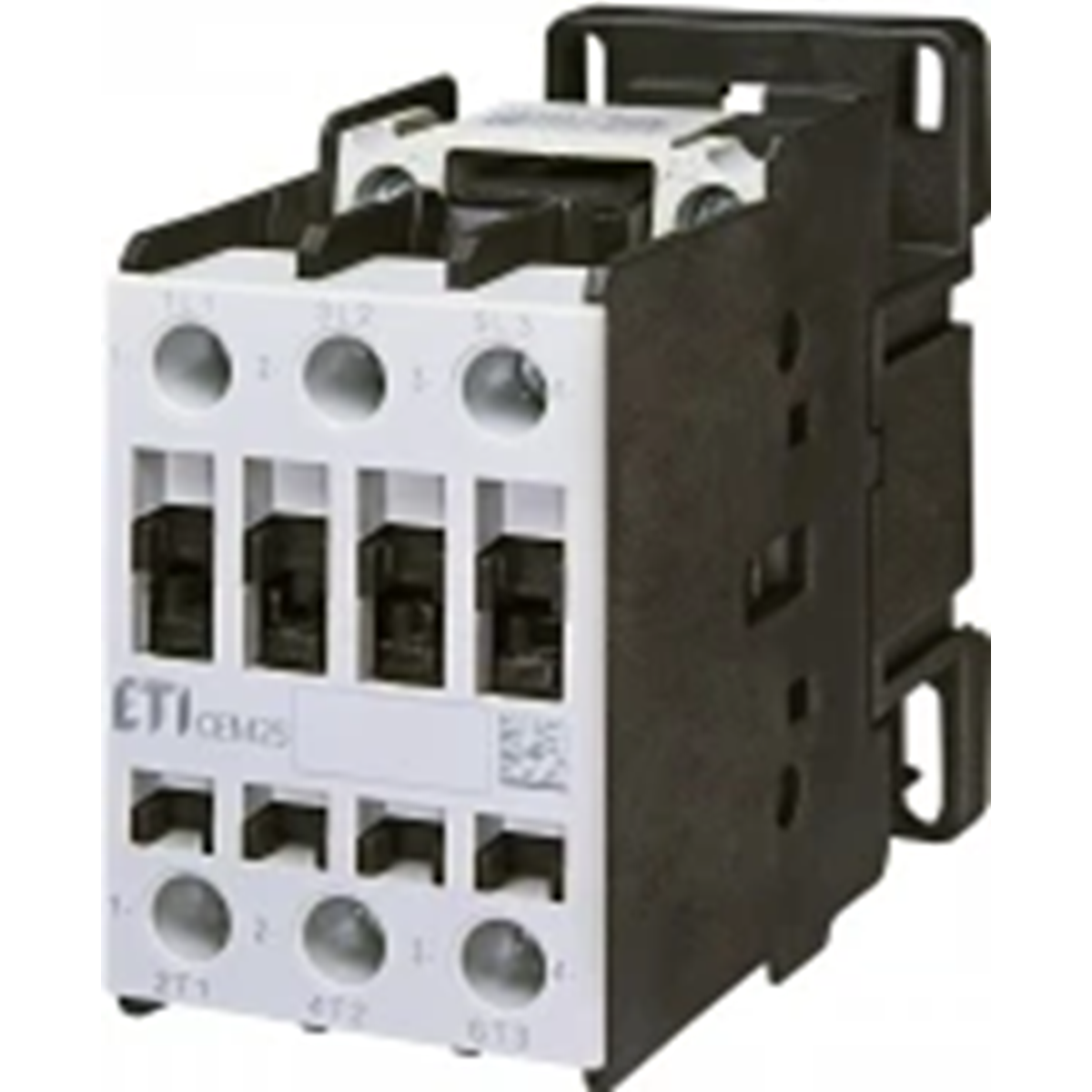

Air contactor CEM25.00-24V-50/60Hz 004645100

local index:
ATA029ETIP
Catalog No:
004645100
EAN code:
7890355108239
Manufacturer: ETI POLAM
Number of poles: 3
Rated insulation voltage [V]: 690
Working temperature [°C]: from -25 to +55
Price:
38,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

These contactors are used for remote switching on and off of electric motors and other electric energy receivers up to 160 kW (for U=400V cat. AC3).

Advantages:

< ul>
  •  possibility of attaching auxiliary contacts, mechanical interlock and surge arresters,
  •  mounting on a TH35 rail or with screws,
  •   ;very good switching parameters, high mechanical and electrical durability,
  •  universal auxiliary contacts suitable for all contactors.
  • Technical data

    • Number of poles
      3
    • Working temperature [°C]
      from -25 to +55
    • Compliance with standards
      IEC/EN 60 947, DIN VDE 0660, UL, CSA
    • Rated insulation voltage [V]
      690
    • Type
      CEM25.00-24V-50/60Hz
    • PKWIU
      27.12.23.0

    Other technical data

    • Rated control supply voltage AC 50 Hz
      24 ... 24 V
    • Voltage type for actuating
      AC
    • Rated operation current Ie at AC-3, 400 V
      25 A
    • Modular version
      no
    • Number of auxiliary contacts as normally closed contact
      0
    • Number of normally open contacts as main contact
      3
    • Rated control supply voltage AC 60 Hz
      24 ... 24 V
    • Rated operation current Ie at AC-1, 400 V
      45 A
    • Rated operation power at AC-3, 400 V
      11 kW
    • Number of auxiliary contacts as normally open contact
      0
    • Type of electrical connection of main circuit
      Frame clamp
