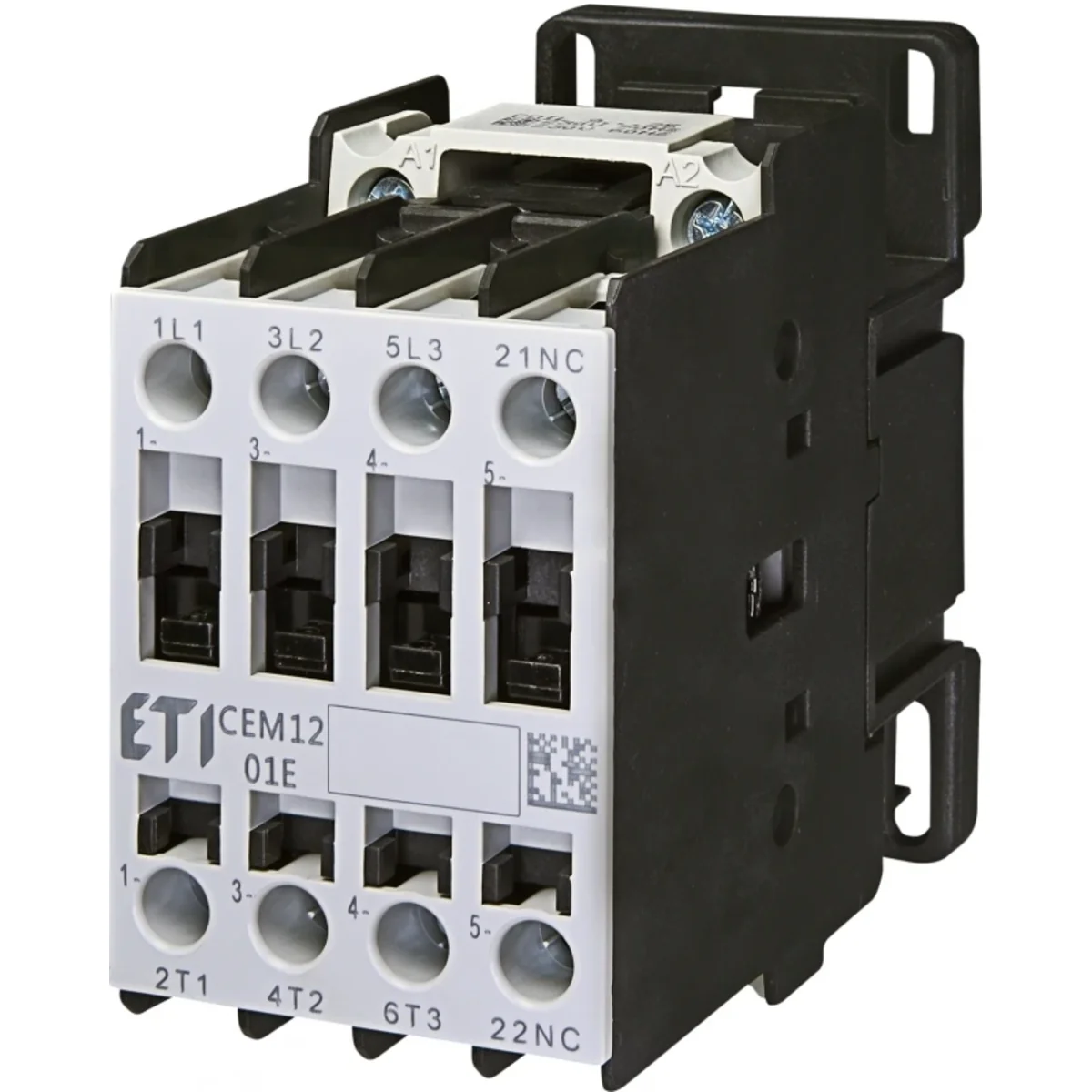

Air contactor CEM12.01-24V-50/60Hz 004643110
local index:
ATA019ETIP
Catalog No:
004643110
EAN code:
7890355108086
Manufacturer:
ETI POLAM
Number of poles: 3
Rated insulation voltage [V]: 690
Working temperature [°C]: from -25 to +55
Price:
25,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
These contactors are used for remote switching on and off of electric motors and other electric energy receivers up to 160 kW (for U=400V cat. AC3).
Advantages:
< ul>Technical data
-
Number of poles3
-
Working temperature [°C]from -25 to +55
-
Compliance with standardsIEC/EN 60 947, DIN VDE 0660, UL, CSA
-
Rated insulation voltage [V]690
-
TypeCEM12.01-24V-50/60Hz
-
PKWIU27.12.23.0
Other technical data
-
Rated control supply voltage AC 50 Hz24 ... 24 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V12 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz24 ... 24 V
-
Rated operation current Ie at AC-1, 400 V25 A
-
Rated operation power at AC-3, 400 V5.5 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitFrame clamp
-
Number of normally open contacts as main contact3
