Electrical apparatus
Motor circuit breakers
Motor circuit breakers for rail mounting
Acti9 P25M-6.3 motor circuit breaker 21108
local index:
ASN059SCHN
Catalog No:
21108
EAN code:
3303430211082
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Height [mm]:
89
See full description
Price:
135,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description

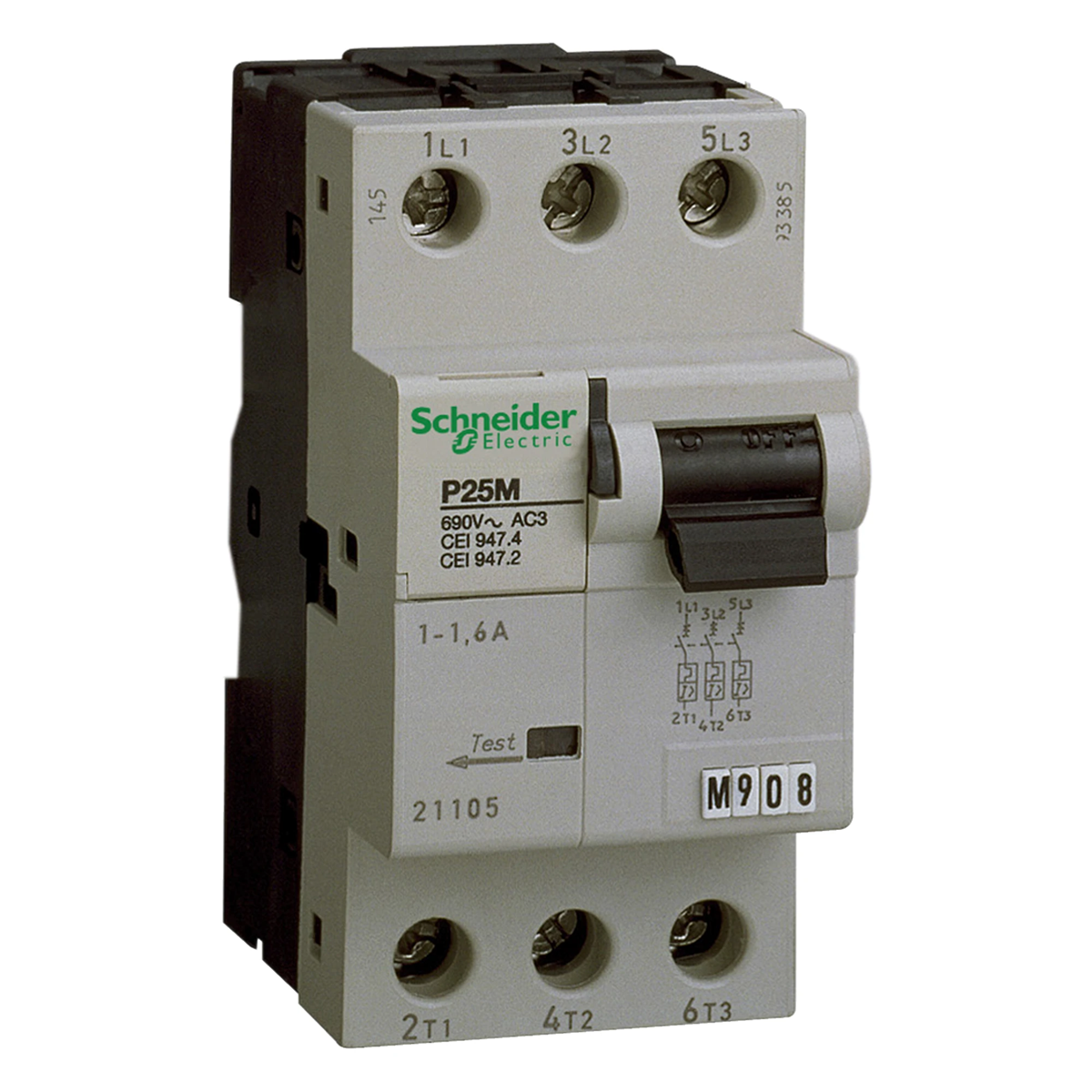

Acti9 P25M-6.3 motor circuit breaker
Technical data
Height [mm]
89
PKWIU
27.12.22.0
Other technical data
Release characteristic
K
Number of protected poles
3
Rated voltage
400 V
Rated impulse withstand voltage Uimp
6 kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
100 kA
Frequency
50 ... 60 Hz
Over voltage category
3
Additional equipment possible
Yes
Built-in depth
44 mm
Ambient temperature during operating
-20 ... 60 °C
Connectable conductor cross section solid-core
1 ... 6 mm²
Number of poles (total)
3
Rated current
6.3 A
Rated insulation voltage Ui
690 V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
100 kA
Voltage type
AC
Concurrently switching neutral conductor
No
Pollution degree
3
Width in number of modular spacings
2.5
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 ... 6 mm²
Files to download
1442059_01A55.pdf
