Electrical apparatus
contactors
AC contactors

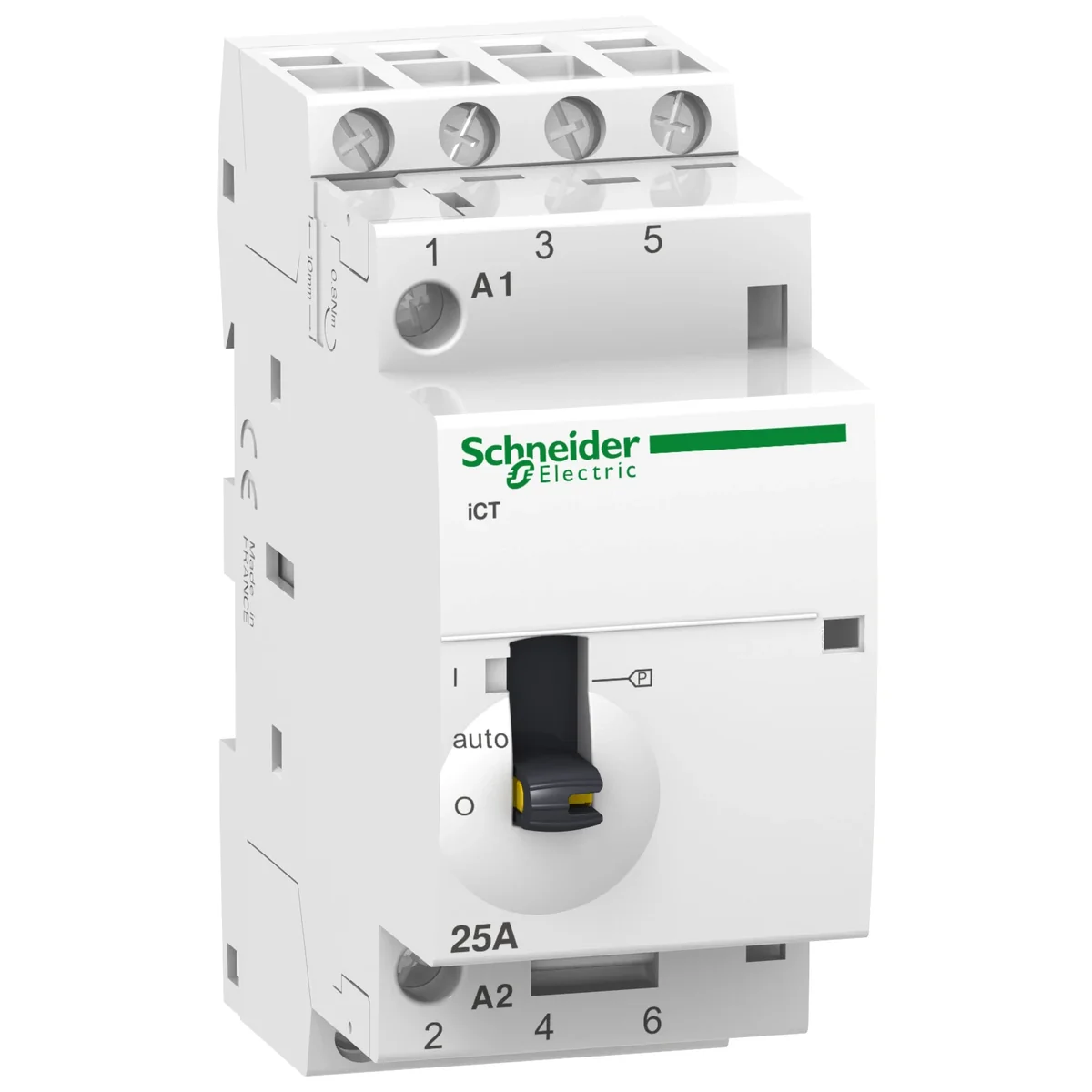

Acti9 iCT50r25-40-230 modular contactor 25A 4NO 50/60Hz 220/240VAC A9C21834
local index:
ATA198SCHN
Catalog No:
A9C21834
EAN code:
3606480375347
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]:
220/240
See full description
Price:
70,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Acti9 iCT50r25-40-230 modular contactor 25A 4NO 50/60Hz 220/240VAC
Technical data
AC control voltage [V]
220/240
PKWIU
27.12.24.0
Other technical data
Rated operating voltage
400 ... 400 V
Kategoria użytkowania
7
Voltage type (operating voltage)
AC
Number of contacts as normally open contact
4
Max. incandescent lamp load
8550 W
Max. load fluorescent lamp (Duo circuit)
7200 VA
Slider for hand switch
Yes
Additional equipment possible
Yes
Rated operation current
25 A
Rated excitation voltage
220 ... 240 V
Voltage type (excitation voltage)
AC
Number of contacts as normally closed contact
0
Max. load fluorescent lamp
3600 VA
Max. load fluorescent lamp (parallel compensated)
3600 VA
Built-in depth
43.5 mm
Degree of protection (IP)
IP20
Files to download
PEP ecopassport SCHN-00144-V02.01-EN_1.pdf
HD_EU declaration of conformity - Acti9 iCT - FD16022301C.pdf
