Acti9 iCT50-16-40-24 modular contactor 16A 4NO 50Hz 24 VAC A9C22114

local index:
ATM004SCHN
Catalog No:
A9C22114
EAN code:
3606480096952
Manufacturer: SCHNEIDER ELECTRIC
AC control voltage [V]: 24
Price:
60,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

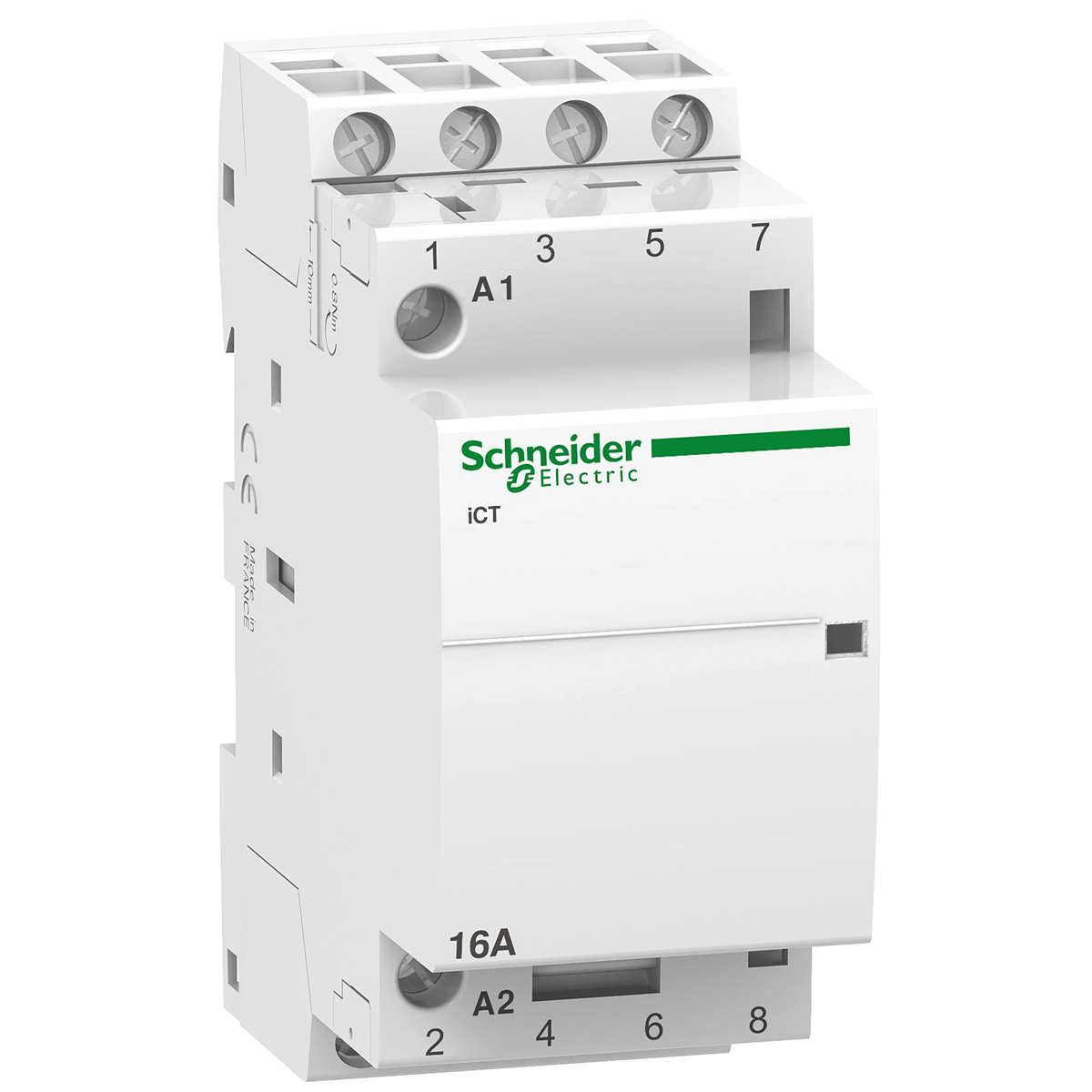

Acti9 iCT50-16-40-24 modular contactor 16A 4NO 50Hz 24 VAC

Technical data

  • AC control voltage [V]
    24
  • PKWIU
    27.12.24.0

Other technical data

  • Rated operating voltage
    400 ... 400 V
  • Kategoria użytkowania
    7
  • Voltage type (operating voltage)
    AC
  • Number of contacts as normally open contact
    4
  • Max. incandescent lamp load
    6000 W
  • Max. load fluorescent lamp (Duo circuit)
    4500 VA
  • Slider for hand switch
    No
  • Additional equipment possible
    Yes
  • Rated operation current
    16 A
  • Rated excitation voltage
    24 ... 24 V
  • Voltage type (excitation voltage)
    AC
  • Number of contacts as normally closed contact
    0
  • Max. load fluorescent lamp
    2550 VA
  • Max. load fluorescent lamp (parallel compensated)
    2400 VA
  • Built-in depth
    43.5 mm
  • Degree of protection (IP)
    IP20
