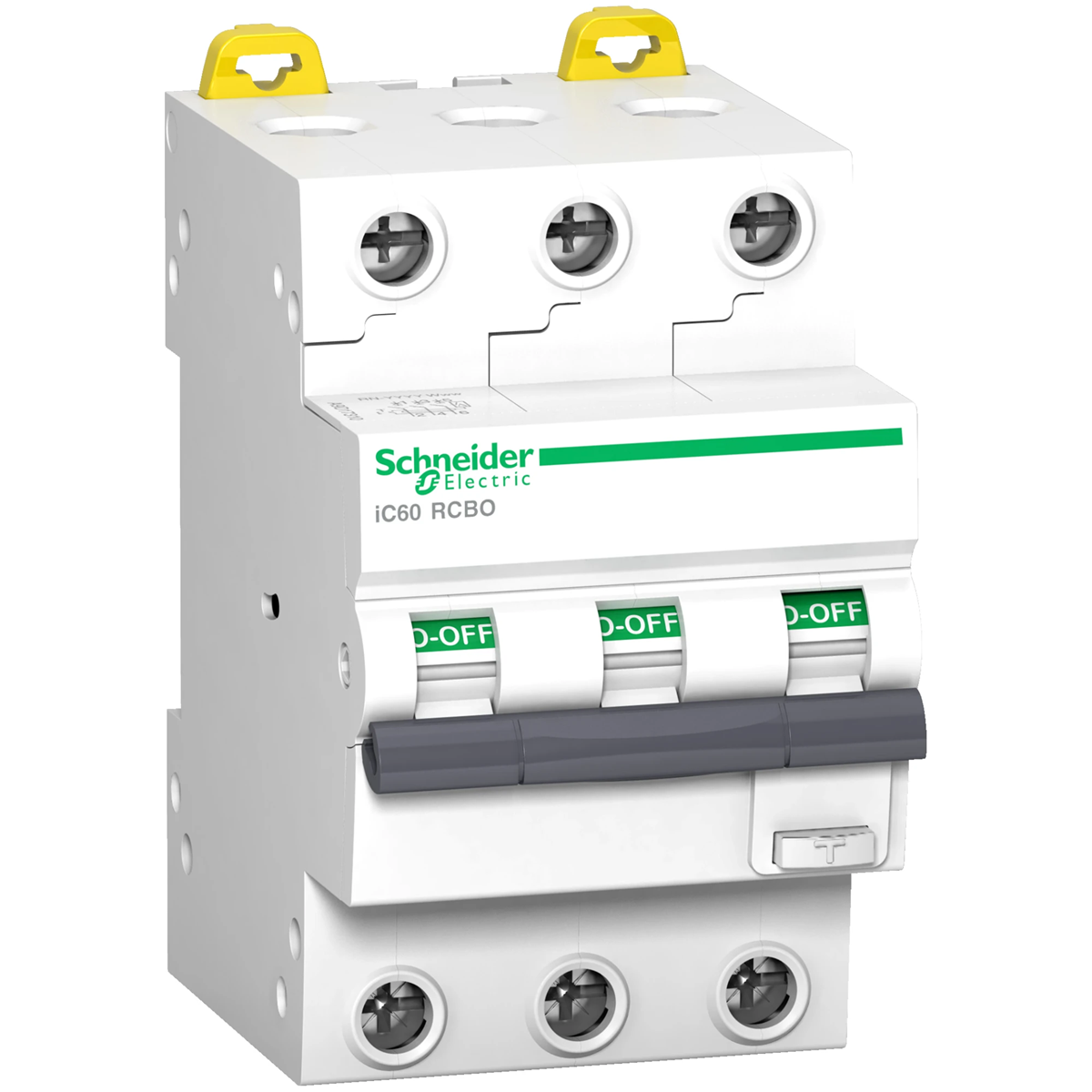

Acti9 iC60 3P 16A C characteristic 10000A/15kA 30 mA type A residual current circuit breaker A9D17316
Lokaler Index:
ARP034SCHN
Katalognummer:
A9D17316
EAN-Code:
3606481157942
Hersteller:
SCHNEIDER ELECTRIC
Number of poles: 3
Preis:
307,07 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Residual current circuit breaker Acti9 iC60 3P 16A characteristic C 10000A/15kA 30 mA type A
Technische Daten
-
Number of poles3
-
PKWIU27.12.23.0
Weitere technische Daten
-
Number of poles (total)3
-
Rated voltage400 V
-
Rated impulse withstand voltage Uimp4 kV
-
Rated fault current0.03 A
-
Current limiting class1
-
Rated short-circuit breaking capacity according to IEC 60947-215 kA
-
Disconnection characteristicUndelayed
-
Voltage typeAC
-
Release characteristicC
-
With interlocking deviceNo
-
Pollution degree2
-
Width in number of modular spacings3
-
Flush-mounted installationNo
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Number of protected poles3
-
Rated insulation voltage Ui500 V
-
Rated current16 A
-
Leakage current typeA
-
Rated short-circuit breaking capacity according to EN 6100910 kA
-
Rated short-circuit breaking capacity Icn according to EN 61009-110 kA
-
Surge current capacity0.25 kA
-
Frequency50 Hz
-
Concurrently switching neutral conductorNo
-
Over voltage category3
-
Ambient temperature during operating-25 ... 40 °C
-
Built-in depth45 mm
-
Anti-nuisance tripping versionNo
-
Connectable conductor cross section solid-core1 ... 35 mm²
