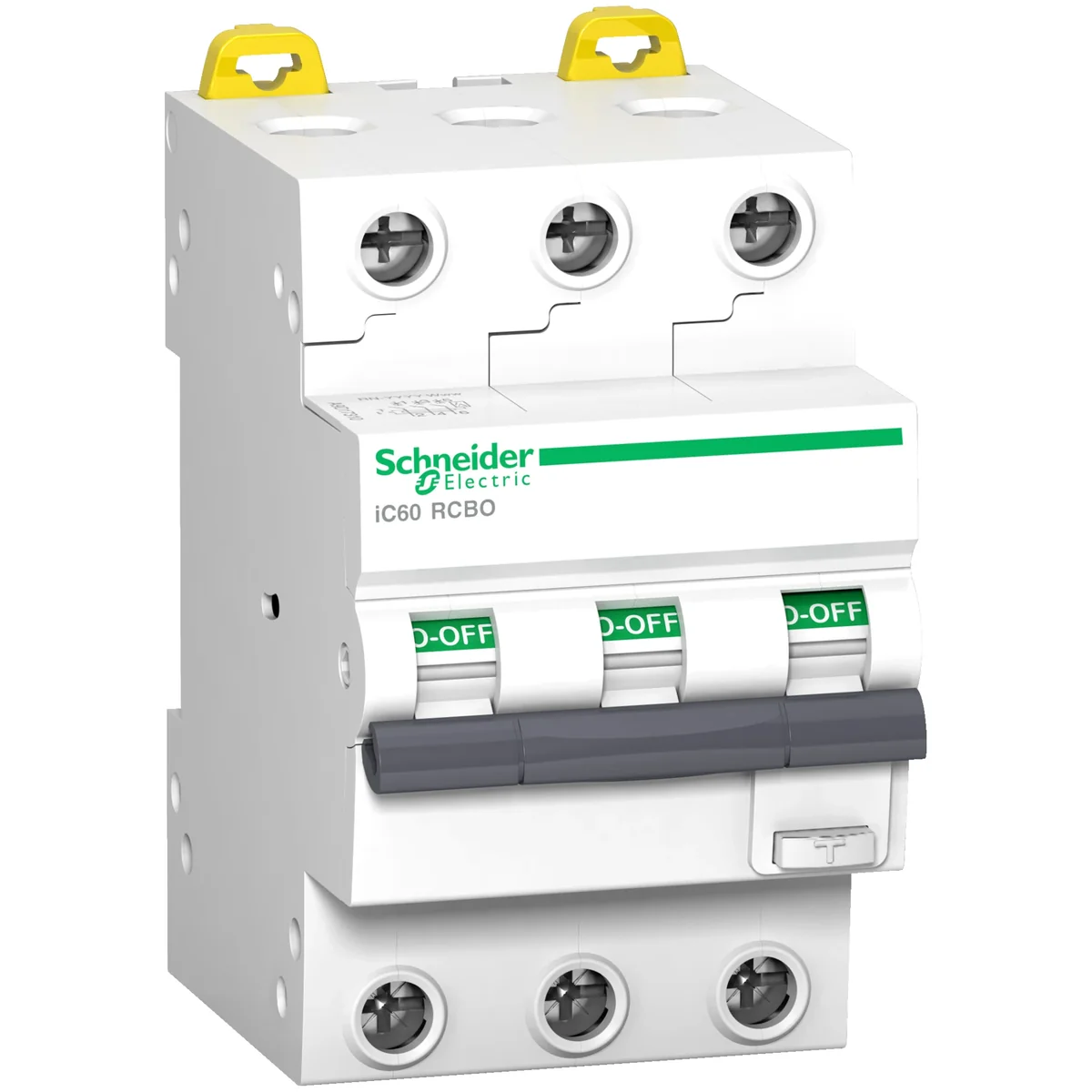

Acti9 iC60 3P 16A C characteristic 10000A/15kA 30 mA type A residual current circuit breaker A9D17316

local index:
ARP034SCHN
Catalog No:
A9D17316
EAN code:
3606481157942
Manufacturer: SCHNEIDER ELECTRIC
Number of poles: 3
Price:
300,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Residual current circuit breaker Acti9 iC60 3P 16A characteristic C 10000A/15kA 30 mA type A

Technical data

  • Number of poles
    3
  • PKWIU
    27.12.23.0

Other technical data

  • Number of poles (total)
    3
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    1
  • Rated short-circuit breaking capacity according to IEC 60947-2
    15 kA
  • Disconnection characteristic
    Undelayed
  • Voltage type
    AC
  • Release characteristic
    C
  • With interlocking device
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    3
  • Anti-nuisance tripping version
    No
  • Connectable conductor cross section solid-core
    1 ... 35 mm²
  • Number of protected poles
    3
  • Rated insulation voltage Ui
    500 V
  • Rated current
    16 A
  • Leakage current type
    A
  • Rated short-circuit breaking capacity according to EN 61009
    10 kA
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    10 kA
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 40 °C
  • Built-in depth
    45 mm
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
