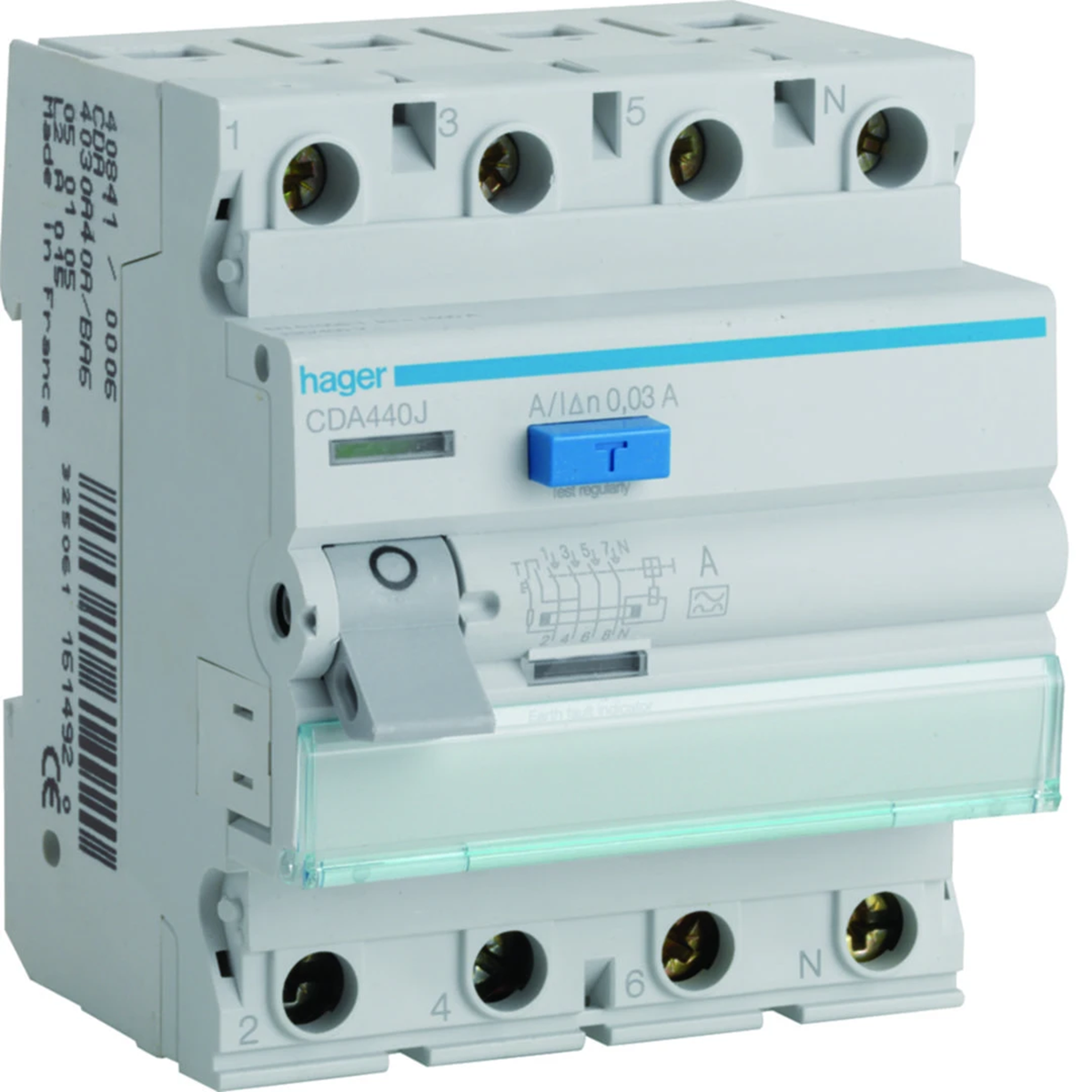

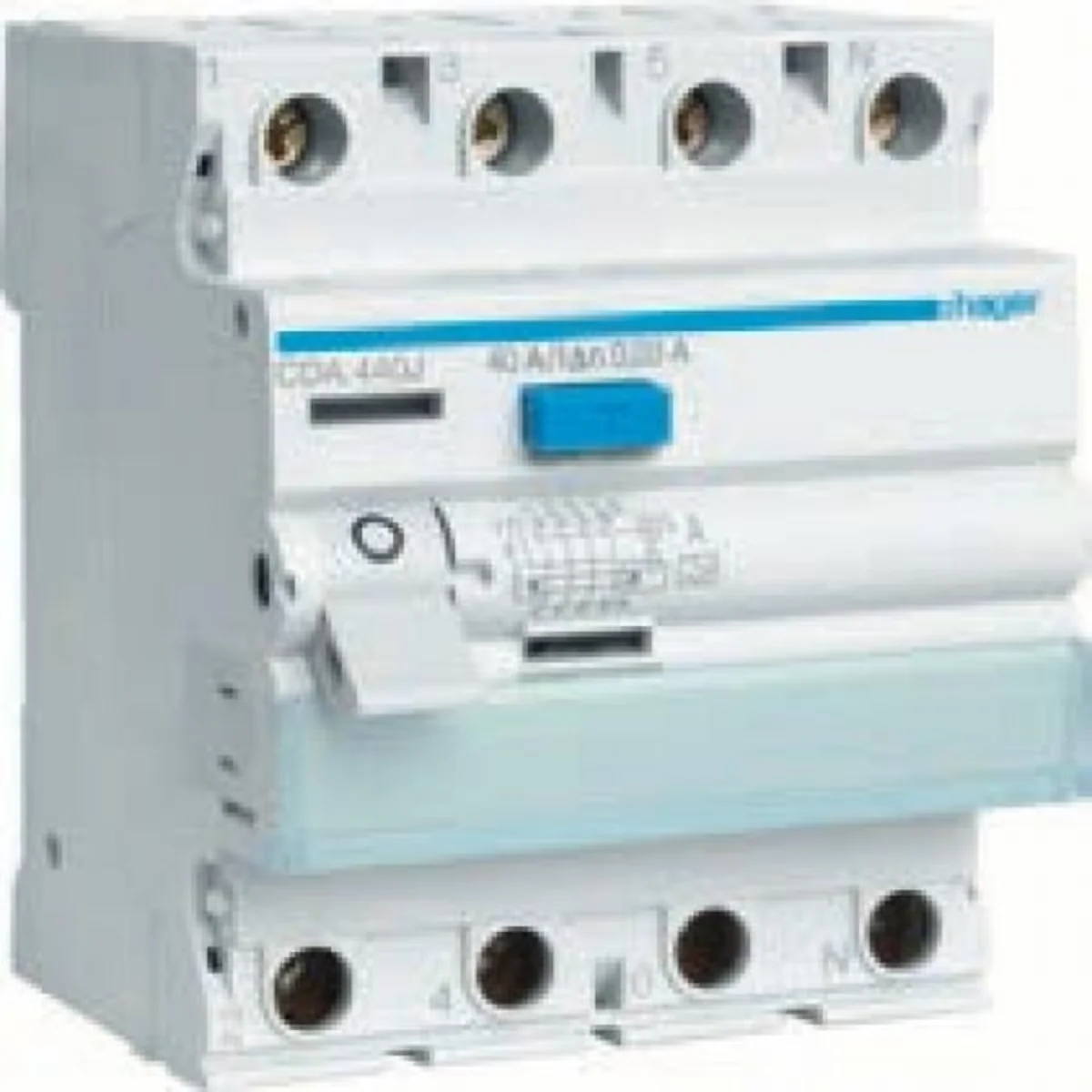

4P 40A/30mA type A residual current device CDA440J

local index:
ARP002HAGE
Catalog No:
CDA440J
EAN code:
3250611619529
Manufacturer: HAGER
Depth [mm]: 70
Number of modules: 4
Number of poles: 4
Price:
82,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 25 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Residual Current Circuit Breakers Type A
• residual current circuit breakers with high and medium sensitivity, residual currents A (sinusoidal alternating and pulsating current with a DC component),
• rated operational voltage: 230/400 V AC - two-pole circuit breaker, 400 V AC - four-pole circuit breaker,
• rated operating differential current in the range from 10 mA to 500 mA,
• rated making and breaking capacity (Im): 1500 A,
• rated short-circuit current  conventional (Inc): the value depends on the rated current of the short-circuit protection protecting the residual current device,
• optical actuation indicator (circuit breaker opening/closing and circuit breaker tripping due to differential current),
• wide range of accessories,
• possibility of connection using vertical and horizontal comb busbars,
• cage terminals:
- circuit breakers with a rated current of 16 ÷ 63 A: wire up to 25 mm2, stranded wire up to 16 mm2
- circuit breakers with a rated current of 125 A: wire up to 50 mm2, stranded wire up to 35 mm2,
• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.

Technical data

  • Depth [mm]
    70
  • Number of poles
    4
  • Rated insulation voltage [V]
    900
  • Rated current [A]
    40
  • Width [mm]
    70
  • Height [mm]
    83
  • PKWIU
    27.12.23.0
  • Number of modules
    4
  • Rated voltage [V]
    230
  • Differential current [mA]
    thirty
  • Power dissipation [W]
    11.8
  • Trigger type
    AND
  • Number of modules
    4

Other technical data

  • Number of poles
    4
  • Rated current
    40 A
  • Rated insulation voltage Ui
    500 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    6 kA
  • With interlocking device
    No
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 40 °C
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Rated voltage
    400 V
  • Rated fault current
    30 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    A
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    70 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,333 0,334 12,390 320,360
Width (m) 0,070 0,078 0,315 0,800
Length (m) 0,085 0,078 0,232 1,078
Depth (m) 0,073 0,095 0,362 1,200
