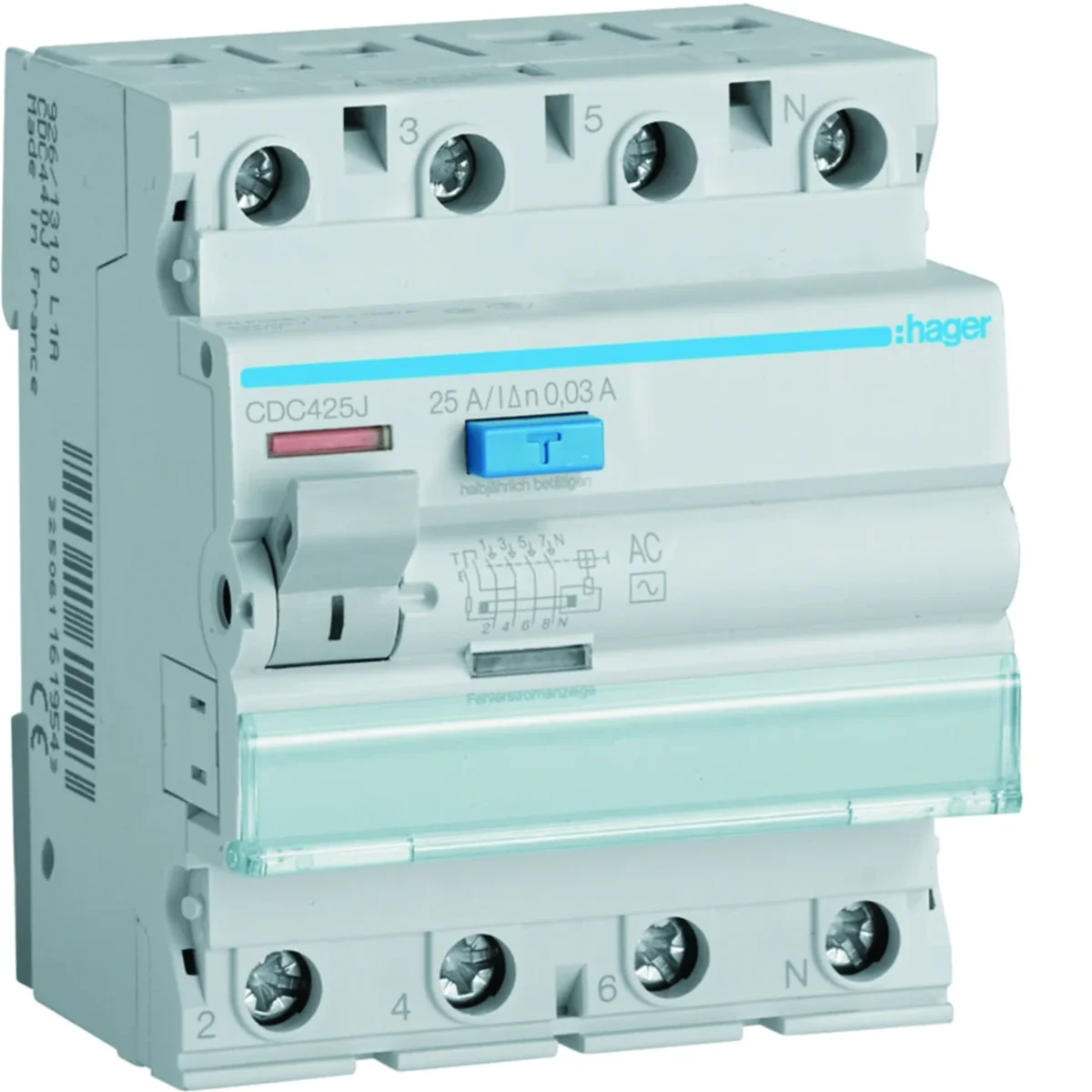

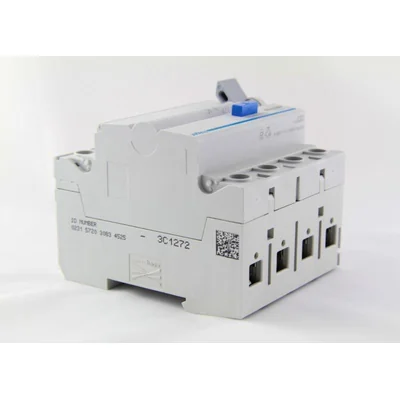

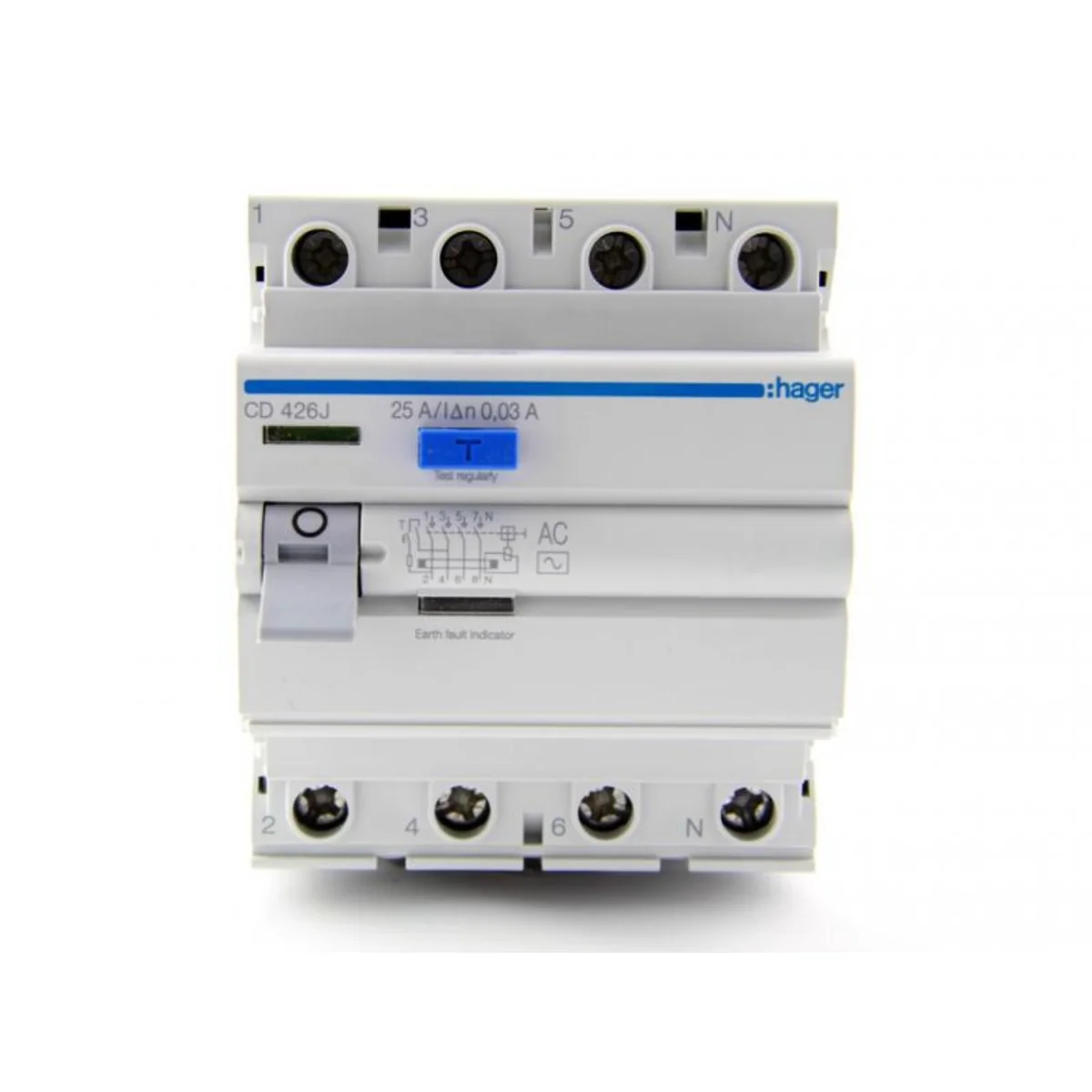

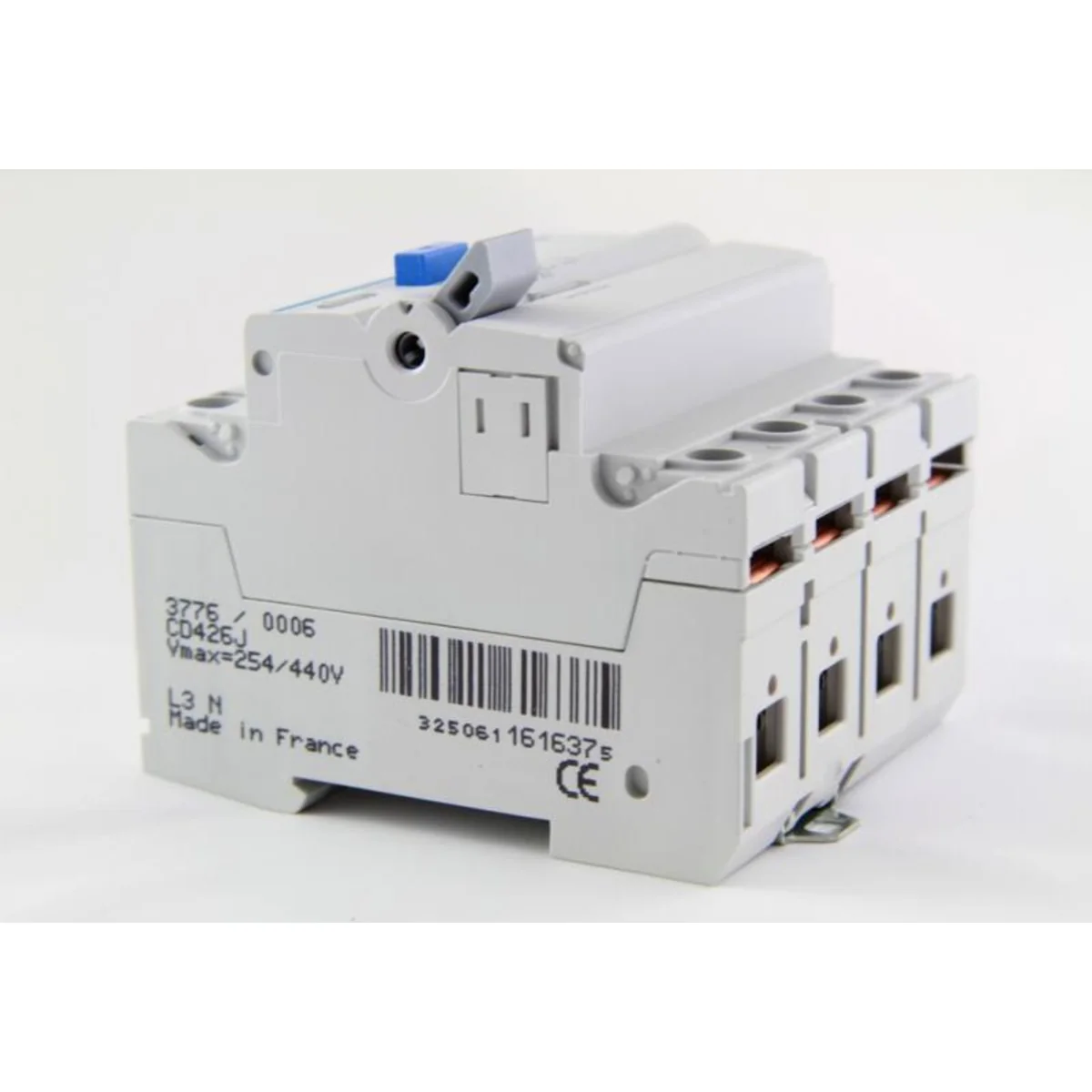

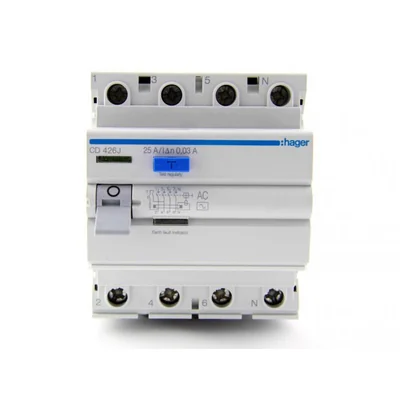

4P, 25A, 30mA residual current device CDC425J

local index:
ARP223HAGE
Catalog No:
CDC425J
EAN code:
3250611619512
Manufacturer: HAGER
Depth [mm]: 70
Number of modules: 4
Number of poles: 4
Price:
39,96 €
gross / pcs.
(including VAT 23%)
Last lowest price: 39,96 € gross
Base price: 86,87 € gross -54%
Delivery in 3h
Accessible 118 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


The purpose of the residual current device is to protect people, animals and objects in direct or indirect contact with electricity. RCDs also provide fire protection because they monitor the condition of the insulation and disconnect the power supply when leakage currents occur. In the event of an earth fault, when the short-circuit current exceeds the sensitivity of the residual current device, the device automatically switches off the damaged part of the electrical installation within 0.2 seconds. It has an actuation indicator and an optical ON/OFF status indicator. Possibility of adding additional equipment. Ambient temperature from -25 to +40°C.

Technical data

  • Depth [mm]
    70
  • Number of poles
    4
  • Rated insulation voltage [V]
    900
  • Rated current [A]
    25
  • Power dissipation [W]
    4.6
  • Height [mm]
    83
  • Number of modules
    4
  • PKWIU
    27.12.23.0
  • Number of modules
    4
  • Operating voltage [V]
    230/400
  • Differential current [mA]
    thirty
  • Level of security
    IP40
  • Width [mm]
    70
  • Short-circuit switching capacity [kA]
    6
  • Breakdown voltage [V]
    900

Other technical data

  • Number of poles
    4
  • Rated current
    25 A
  • Rated insulation voltage Ui
    500 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    6 kA
  • With interlocking device
    No
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 40 °C
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Rated voltage
    400 V
  • Rated fault current
    30 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    70 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,320 0,332 12,376 320,024
Width (m) 0,070 0,080 0,318 0,800
Length (m) 0,085 0,077 0,234 1,086
Depth (m) 0,073 0,095 0,368 1,200
