2P 40A/300mA RCD Type AC RCCB CFC240J

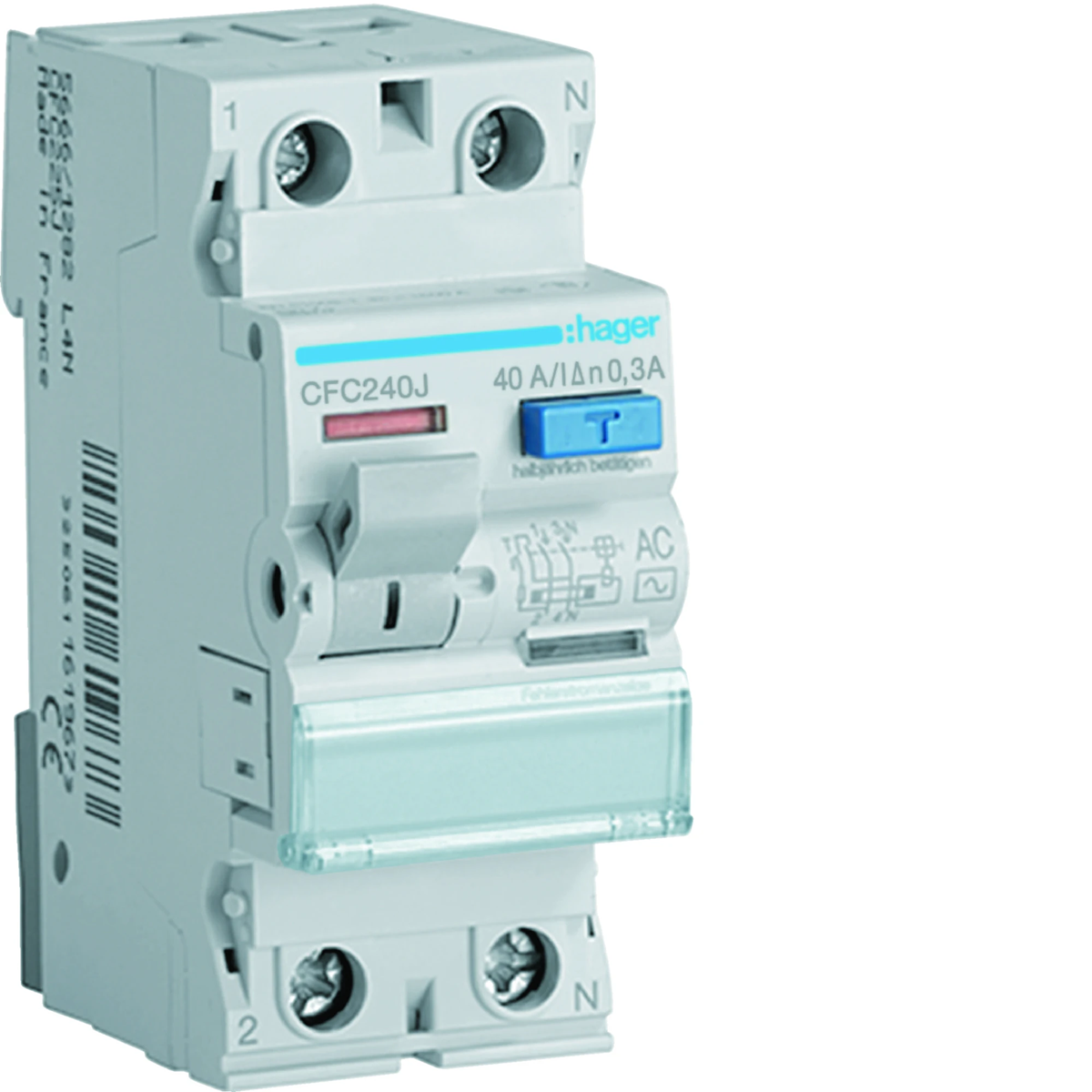

Name: 2P 40A/300mA RCD Type AC RCCB
Brand: HAGER
SKU: ARP021HAGE
Price: 66.04 PLN

local index:

ARP021HAGE

Catalog No:

CFC240J

EAN code:

3250611619680

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 70

Number of poles: 2

Differential current [mA]: 300

See full description

Price:

66,04 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Modular devices protecting against electric shock - as a means of supplementary protection (protection against indirect contact) in the event of damage or ineffectiveness of basic protection measures.

Technical data

Depth [mm]

70
Differential current [mA]

300
Width [mm]

35
Height [mm]

83
PKWIU

27.12.23.0

Number of poles

2
Rated current [A]

40
Trigger type

AC
Number of modules

2

Other technical data

Number of poles

2
Rated current

40 A
Rated insulation voltage Ui

500 V
Mounting method

DIN rail
Selective protection

No
Short-circuit breaking capacity (Icw)

6 kA
With interlocking device

No
Additional equipment possible

Yes
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 40 °C
Connectable conductor cross section multi-wired

1 ... 16 mm²

Rated voltage

230 V
Rated fault current

300 A
Rated impulse withstand voltage Uimp

4 kV
Leakage current type

AC
Short-time delayed tripping

No
Surge current capacity

0.25 kA
Frequency

50 Hz
Degree of protection (IP)

IP20
Built-in depth

70 mm
Pollution degree

2
Connectable conductor cross section solid-core

1 ... 25 mm²

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	60 pcs.	1440 pcs.
Weight (kg)	0,180	0,195	12,035	311,840
Width (m)	0,035	0,080	0,310	0,800
Length (m)	0,085	0,040	0,210	1,050
Depth (m)	0,073	0,100	0,360	1,200
