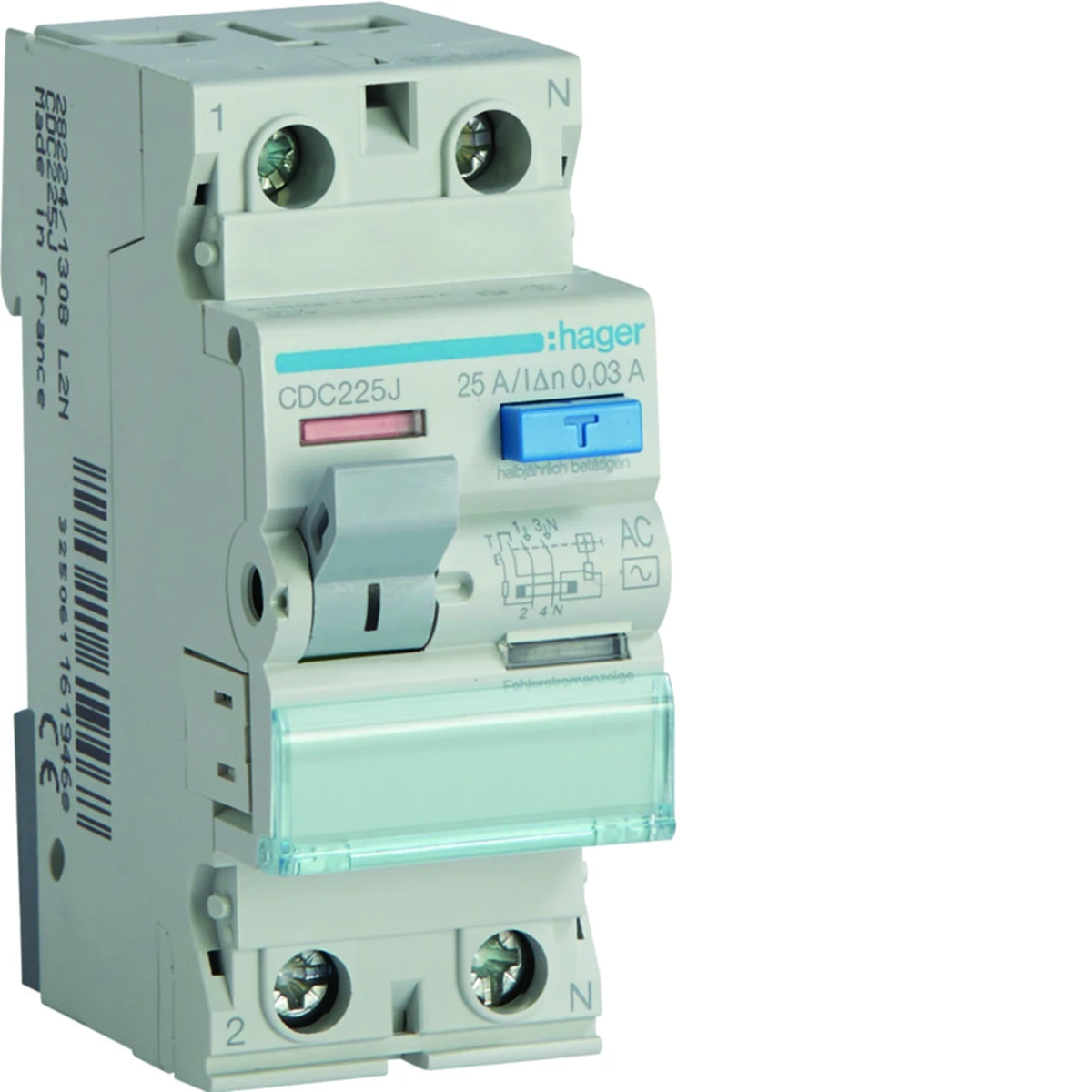

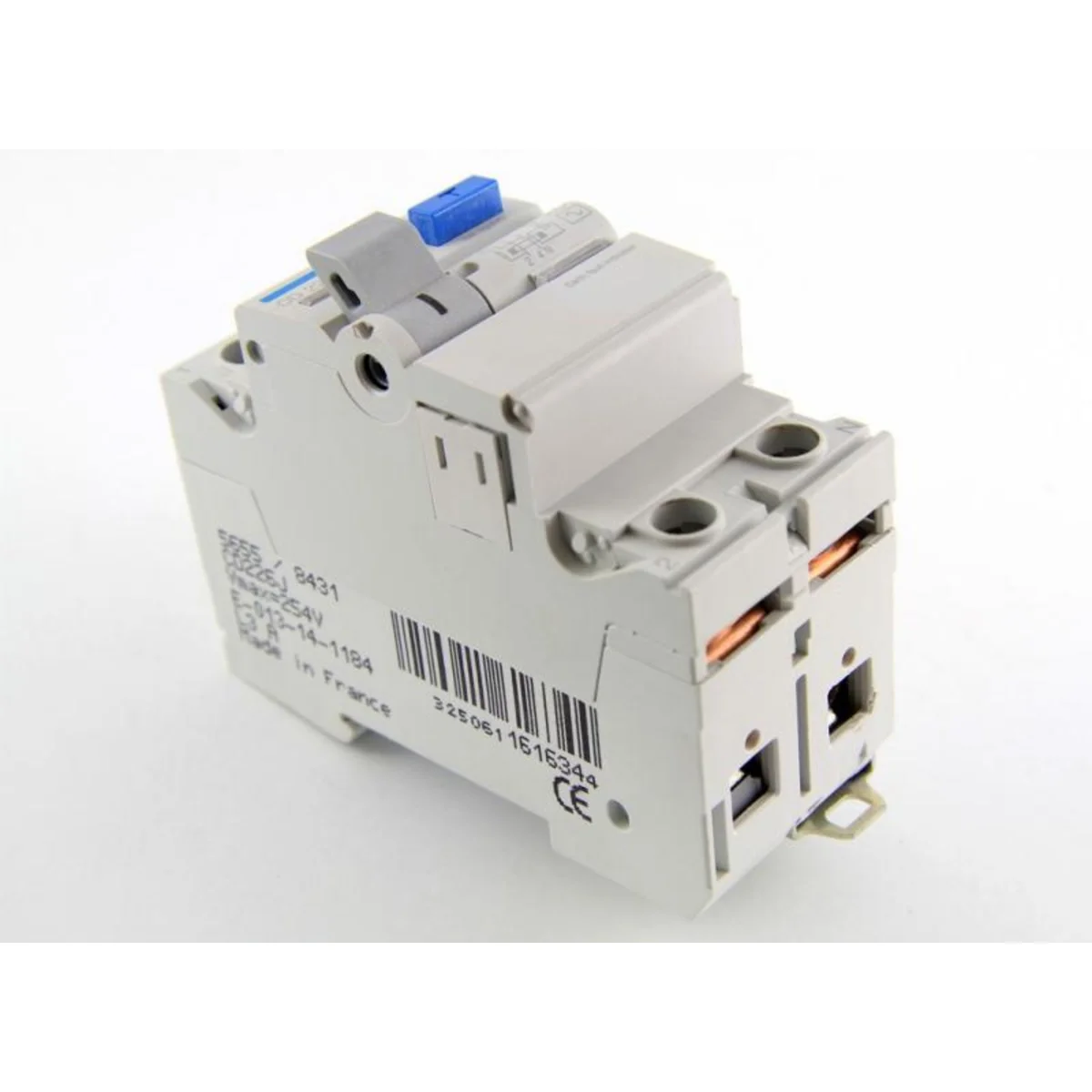

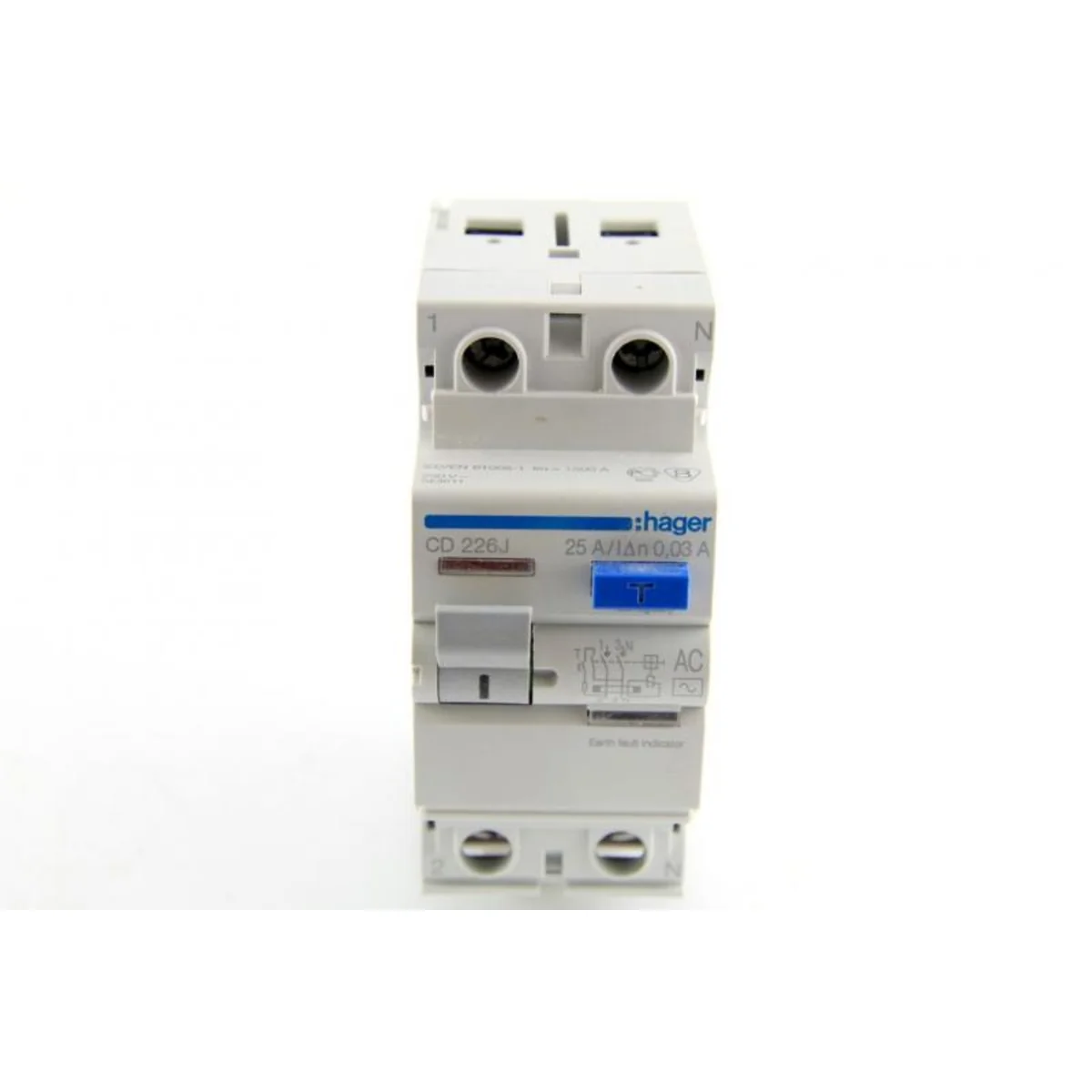

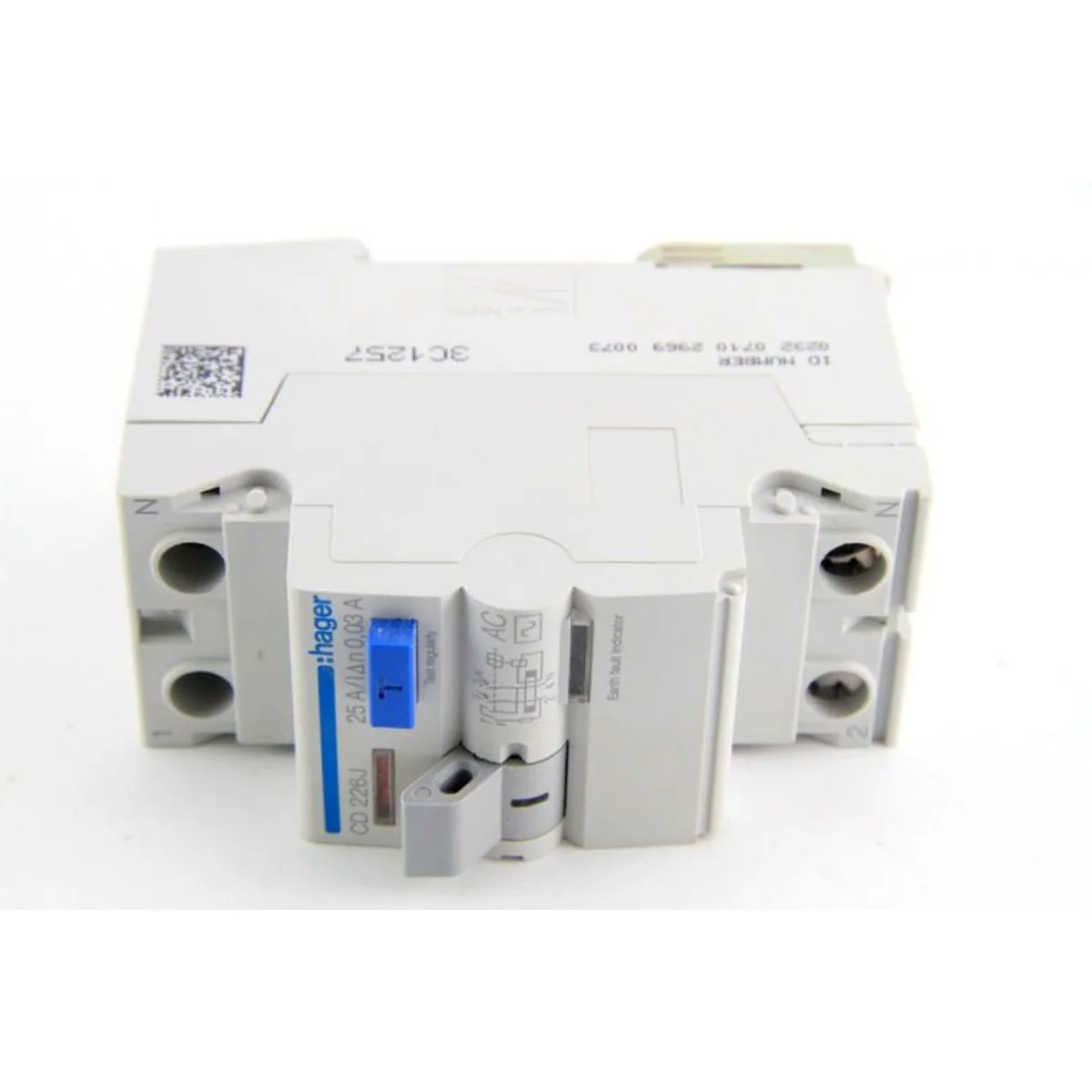

2P, 25A, 30mA residual current device CDC225J

local index:
ARP024HAGE
Catalog No:
CDC225J
EAN code:
3250611619468
Manufacturer: HAGER
Depth [mm]: 70
Number of modules: 2
Number of poles: 2
Price:
30,61 €
gross / pcs.
(including VAT 23%)
Last lowest price: 30,61 € gross
Base price: 66,56 € gross -54%
Delivery in 3h
Accessible 170 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


RCDs Type AC

• RCDs with high and medium sensitivity, AC residual currents (sinusoidal alternating current),

• Rated operational voltage: 230/400 V AC - two-pole circuit breaker, 400 V AC - four-pole circuit breaker,

• rated residual operating current in the range from 10 mA to 500 mA,

• making capacity and breaking (Im): 1500 A,

• nominal short-circuit current (Inc): the value depends on the rated current of the short-circuit protection protecting the RCD,

• optical indicator of operating (opening/closing of the circuit breaker and tripping of the circuit breaker due to residual current),

• wide range of accessories,

• possibility of connection using vertical and horizontal comb busbars,

• cage terminals:

   - circuit breakers with a rated current of 16 ÷ 63 A: wire up to 25 mm2, stranded wire up to 16 mm2

   - circuit breakers with a rated current of 80 ÷ 125 A: wire up to 50 mm2, stranded wire up to 35 mm2,

• degree of protection: IP2X for terminals, IP40 for the device built into the switchgear.



Technical data

  • Depth [mm]
    70
  • Number of poles
    2
  • Differential current [mA]
    thirty
  • Power dissipation [W]
    2.5
  • Height [mm]
    83
  • Breakdown voltage [V]
    500
  • Number of modules
    2
  • Rated insulation voltage [V]
    500
  • Rated current [A]
    25
  • Width [mm]
    35
  • Number of modules
    2
  • PKWIU
    27.12.23.0

Other technical data

  • Number of poles
    2
  • Rated current
    25 A
  • Rated insulation voltage Ui
    500 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    6 kA
  • With interlocking device
    Yes
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    2
  • Ambient temperature during operating
    -25 ... 40 °C
  • Connectable conductor cross section multi-wired
    1 ... 16 mm²
  • Rated voltage
    230 V
  • Rated fault current
    30 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    70 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,186 0,195 12,080 312,920
Width (m) 0,035 0,080 0,320 0,800
Length (m) 0,085 0,045 0,215 1,050
Depth (m) 0,073 0,100 0,360 1,200
