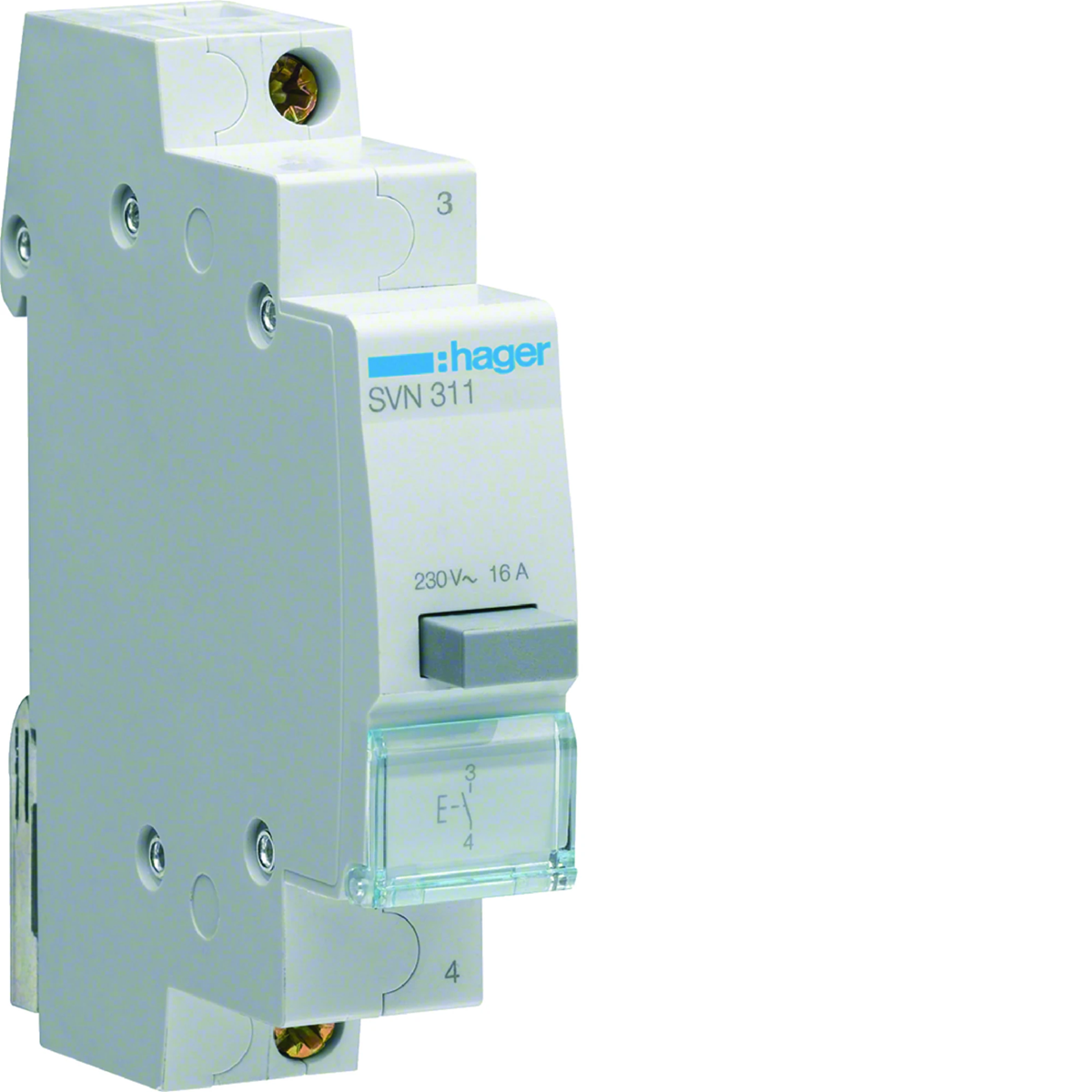

1NO control button SVN311

local index:
AKS144HAGE
Catalog No:
SVN311
EAN code:
3250615721754
Manufacturer: HAGER
Depth [mm]: 66
Number of modules: 1
Rated voltage [V]: 230
Price:
13,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Button 16A, 1Z.

Technical data

  • Depth [mm]
    66
  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Height [mm]
    83
  • PKWIU
    27.33.11.0
  • Number of modules
    1
  • Rated insulation voltage [V]
    4000
  • Width [mm]
    17.5
  • Number of modules
    1

Other technical data

  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    0
  • Switching voltage
    230 V
  • With signal lamp
    No
  • Colour button
    Grey
  • Built-in depth
    66 mm
  • Number of contacts as normally open contact
    1
  • Switching current
    16 A
  • Voltage type
    AC
  • Max. lamp power
    0 W
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 12 pcs. 144 pcs. 3456 pcs.
Weight (kg) 0,680 8,665 230,960
Width (m) 0,095 0,310 0,800
Length (m) 0,080 0,225 1,050
Depth (m) 0,225 0,365 1,200
