1930/GLASSERIE Button for switch and signaling device E10 with bell symbol white 1227

Name: 1930/GLASSERIE Button for switch and signaling device E10 with bell symbol white
Brand: BERKER
SKU: AKS006BERK
Price: 17.88 PLN

local index:

AKS006BERK

Catalog No:

1227

EAN code:

4011334212713

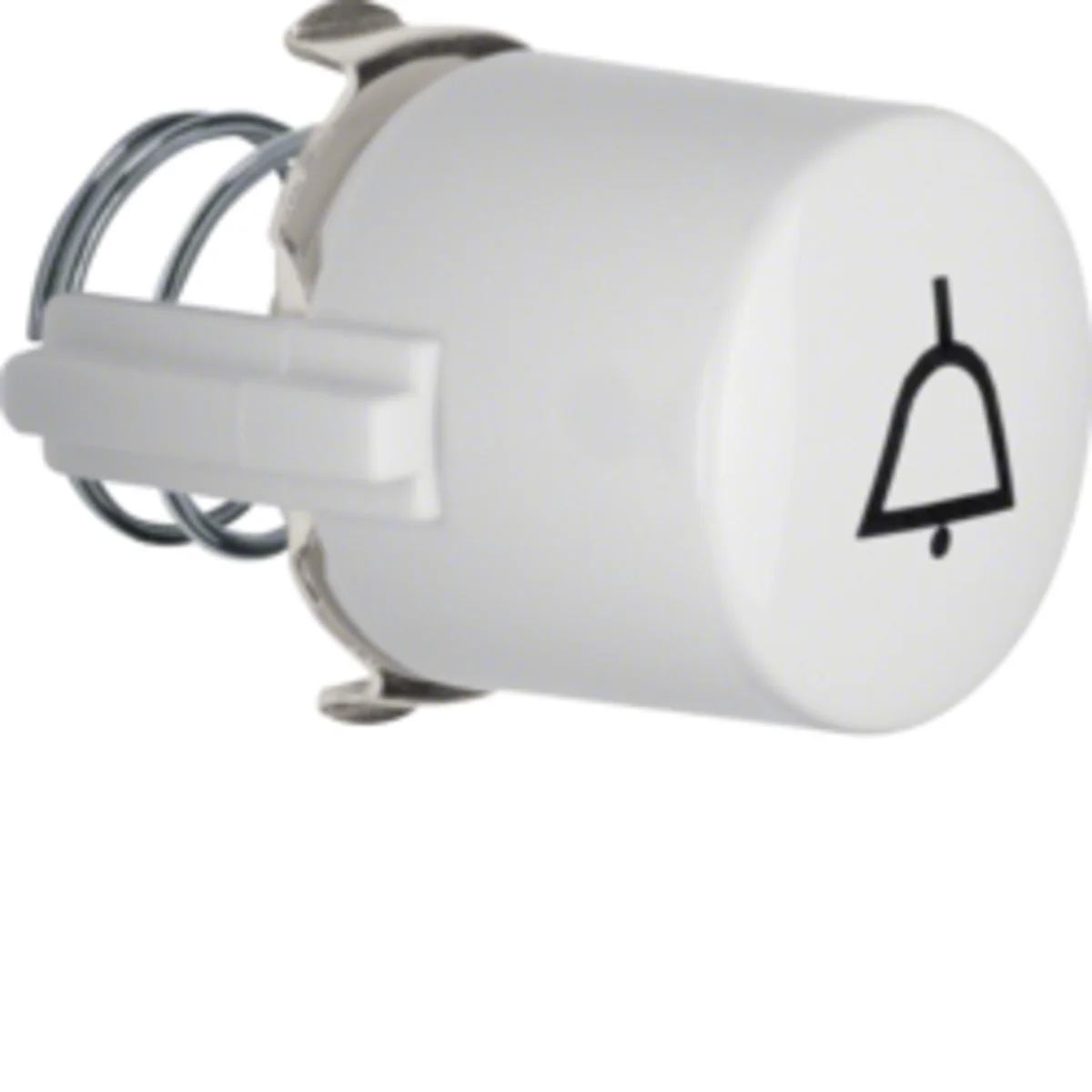

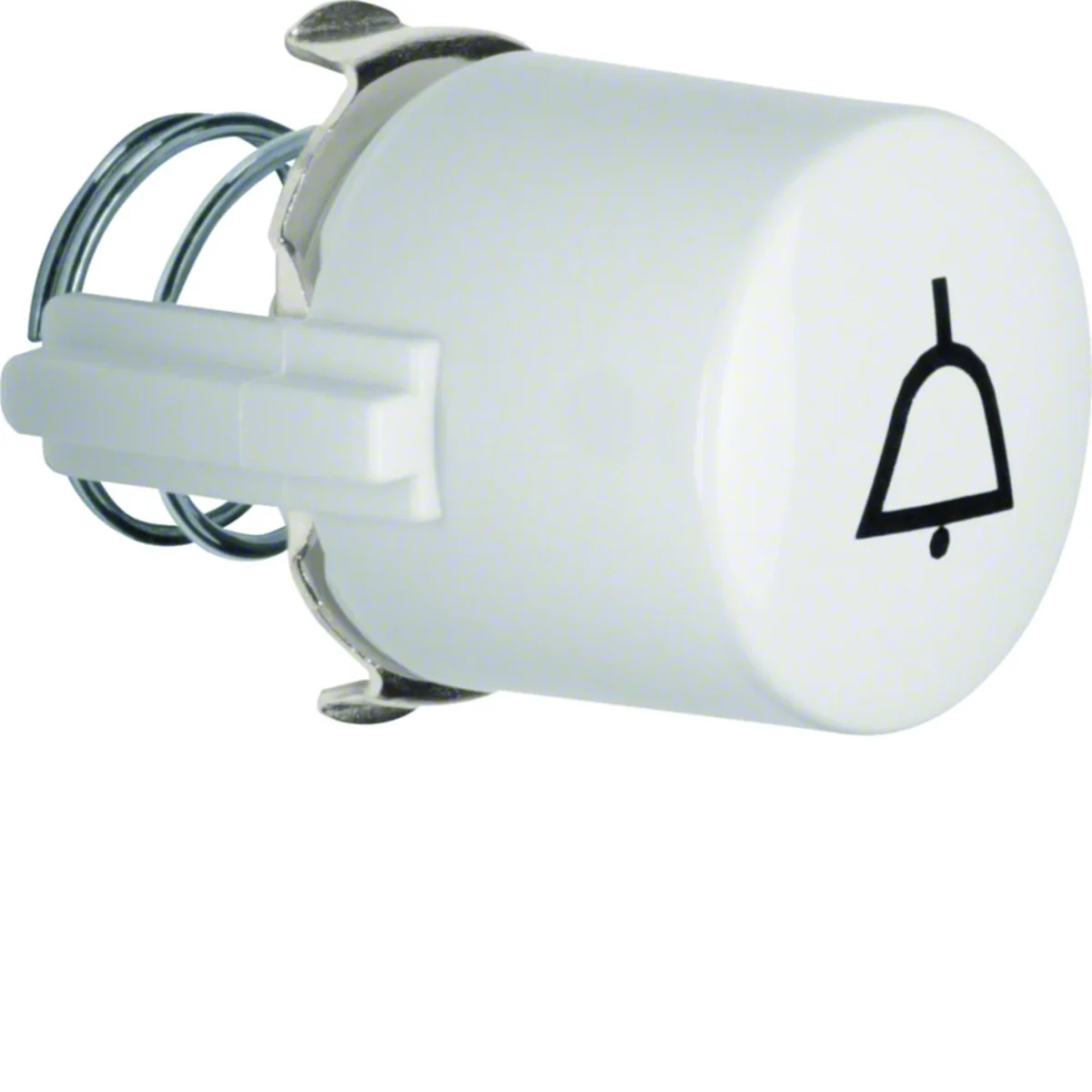

1930/GLASSERIE Button for switch and signaling device E10 with bell symbol white

Click on the photo to enlarge

Manufacturer: BERKER

Color: White

Family: 1930 | GLASSERY

Symbol: Bell

See full description

Price:

17,88 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

The button for the E10 switch and signaling device, with the “bell” symbol, from the Berker 1930/Glasserie series, with the following features:

Main design line: Serie 1930/Glas/R.CLASSIC,
Surface color: snow-white glossy,
To illuminate, use a fluorescent lamp with the number: 531601
For product number 5104 ..

Technical data

Color

White
Symbol

Bell
PKWIU

27.12.40.0

Family

1930 GLASSERY
Accurate color

Snow white

Other technical data

Model

One-part button
Scannable symbol/barrier free

No
Suitable for touch sensor connector for bus system

No
Monitoring window/light outlet

No
Material quality

Duroplast
Surface protection

Untreated
Colour

White
With label area

No
Suitable for degree of protection (IP)

IP20

Imprint/indication

Symbol "bell"
Utilization

Switch/push button
Type of fastening

Clamp mounting
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9010
With exchangeable lens/symbol

No
Impact strength

IK02

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	10 pcs.	360 pcs.	11520 pcs.
Weight (kg)	0,009	0,105	4,225	155,190
Width (m)	0,021	0,084	0,300	0,800
Length (m)	0,030	0,070	0,225	1,050
Depth (m)	0,026	0,085	0,400	1,200
