125A 4 Pole 30mA Type B Residual Current Circuit Breaker 16763

Indice locale:
ARP115SCHN
Numero di catalogo:
16763
Codice EAN:
3303430167631
Prezzo:
12766,22 zł
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Esaurito
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Stampa

Descrizione del prodotto

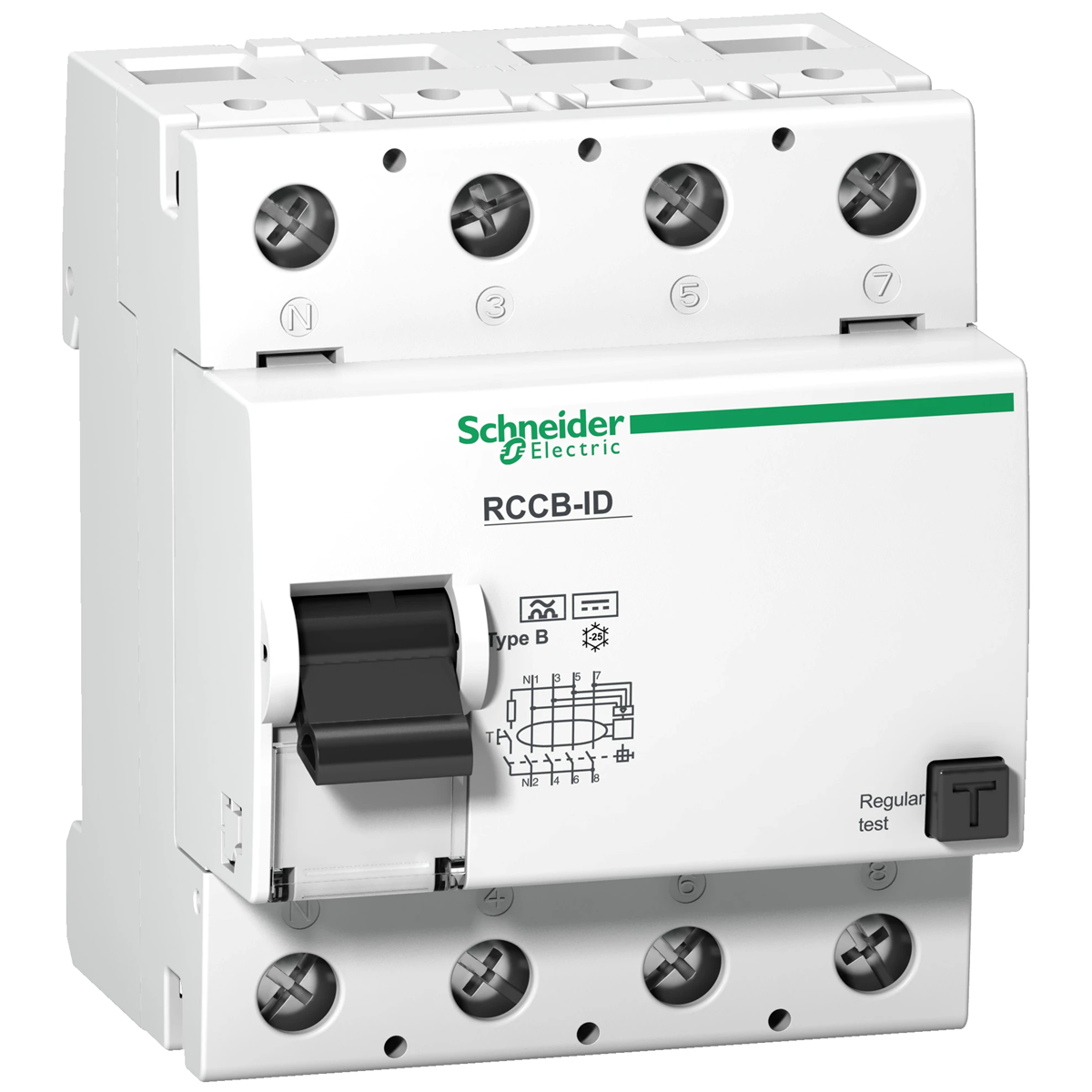

125A 4 Pole 30mA Type B Residual Current Circuit Breaker

Dati tecnici

  • Color
    Gray
  • PKWIU
    27.12.23.0

Altri dati tecnici

  • Number of poles
    4
  • Rated current
    125 A
  • Rated insulation voltage Ui
    440 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    10 kA
  • Frequency
    50/60 Hz
  • With interlocking device
    Yes
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 40 °C
  • Connectable conductor cross section multi-wired
    1.5 ... 35 mm²
  • Rated voltage
    400 V
  • Rated fault current
    0.03 mA
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    B
  • Short-time delayed tripping
    No
  • Surge current capacity
    3 kA
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Built-in depth
    44 mm
  • Pollution degree
    3
  • Connectable conductor cross section solid-core
    1.5 ... 50 mm²

Dettagli del produttore

  • Produttore
    Schneider Electric Polska Sp. z o.o.
  • Indirizzo
    02-673 Warszawa ul. Konstruktorska 12
  • NIP
    5220011965
