el12 Lighting Light fixtures Indoor luminaires Recessed industrial and specialized

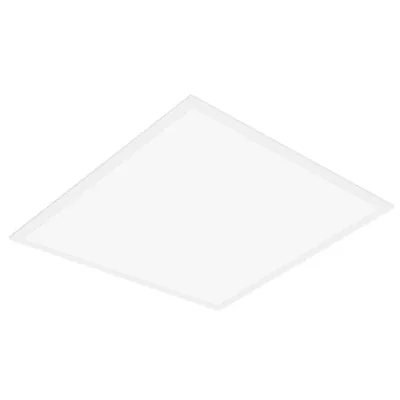

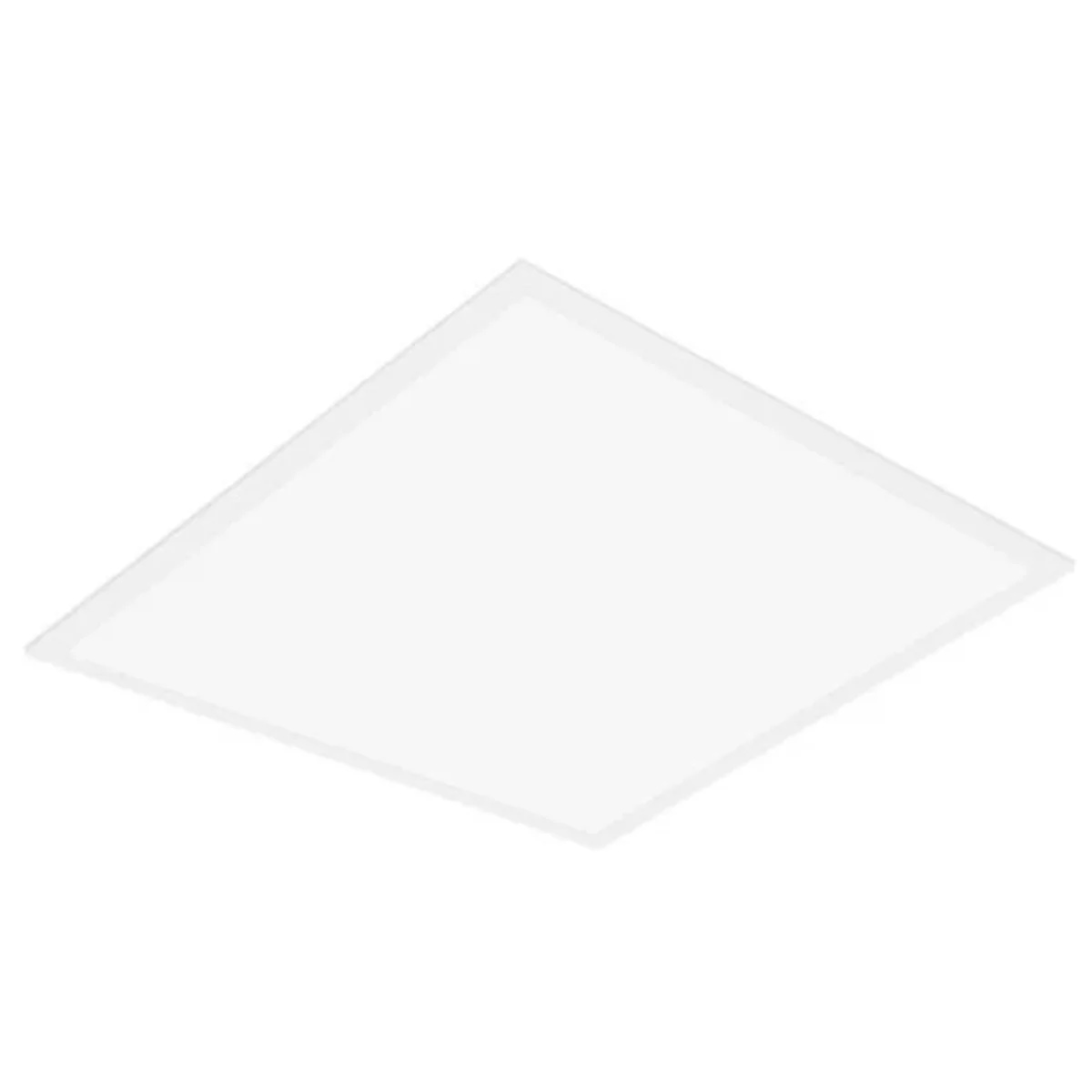

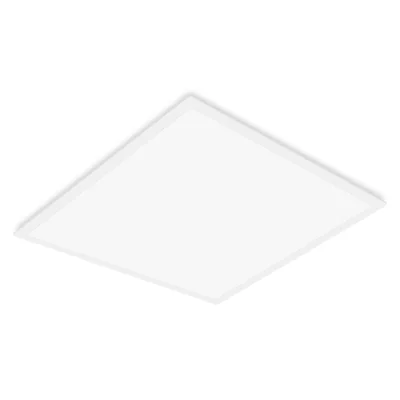

ECO HLO 600 PANEL LED Panel 34W 400\80lm 4000K IP20 120° 60x60cm square white 4099854187377

Indeks lokalny:
OWH008LEDV
Nr katalogowy:
4099854187377
Kod EAN:
4099854187377
ECO HLO 600 PANEL LED Panel 34W 400\80lm 4000K IP20 120° 60x60cm square white
ECO HLO 600 PANEL LED Panel 34W 400\80lm 4000K IP20 120° 60x60cm square white
ECO HLO 600 PANEL LED Panel 34W 400\80lm 4000K IP20 120° 60x60cm square white
ECO HLO 600 PANEL LED Panel 34W 400\80lm 4000K IP20 120° 60x60cm square white
ECO HLO 600 PANEL LED Panel 34W 400\80lm 4000K IP20 120° 60x60cm square white
ECO HLO 600 PANEL LED Panel 34W 400\80lm 4000K IP20 120° 60x60cm square white

Kliknij zdjęcie, aby powiększyć

Producent: LEDVANCE
Light color [K]: 3500-4800 (natural)
Color Rendering Index [CRI]: >80
Length [mm]: 595
Zobacz cały opis
Cena:
123,25 zł
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
do 2 tygodni (dni robocze)
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj
Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Product advantages

  • Low light ripple thanks to a special electronic ballast
  • Energy savings thanks to the high luminous efficiency of the system: up to 120 lm/W< /li>
  • External power supply increases versatility and ensures easy installation

Application areas

  • Direct replacement for fluorescent lamps lighting
  • Offices, conference rooms
  • Reception rooms and halls
  • Corridors
  • Suitable luminaires for recessing in the ceiling, module 600 x 600 mm< /li>

Product features

  • Durability (L70/B50): up to 50,000 hours (at 25°C)

Dane techniczne

  • Light color [K]
    3500-4800 (natural)
  • Length [mm]
    595
  • beam angle [°]
    120
  • Color
    White
  • Power [W]
    34
  • Rated voltage [V]
    230
  • Luminous efficiency [lm/W]
    120

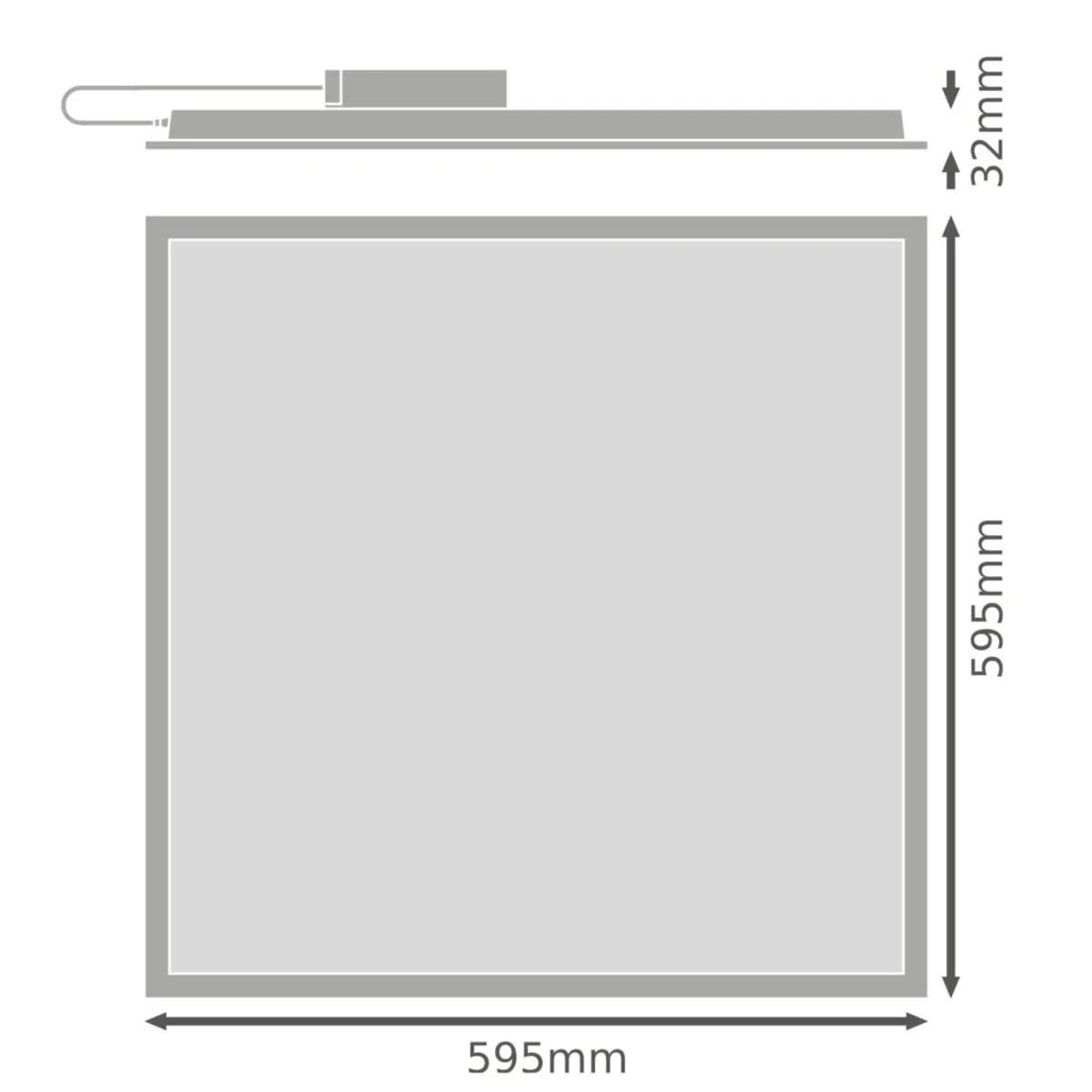

  • Width [mm]
    595
  • Type
    Ceiling
  • Height [mm]
    32
  • lifetime [h]
    50000
  • Color Temperature [K]
    4000
  • Replaceable light source
    NO
  • Color Rendering Index [CRI]
    >80
  • Number of light sources
    1
  • Protection class
    II
  • Shape
    Square
  • Installation
    Flush-mounted
  • Type
    Recessed
  • Level of security
    IP20
  • Darkening
    NO
  • Switch
    NO
  • Light source included
    Yes
  • Degree of mechanical protection
    IK02
  • Lifetime (number of on/off)
    50000

Pozostałe dane techniczne

  • Suitable for wall mounting
    No
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    No
  • Suitable for workplace according to EN 12464-1
    No
  • Housing material
    Aluminium
  • Housing colour
    White
  • Voltage type
    AC
  • Nominal current
    160.000 ... 160.000 mA
  • With control gear
    Yes
  • Dimming 0-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    Yes
  • Light sharing
    Symmetric
  • Light outlet
    Direct
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Degree of protection (IP)
    IP20
  • Protection class
    II
  • Rated ambient temperature according to IEC 62722-2-1
    0 ... +40 °C
  • Emergency power supply integrated
    No
  • With light sensor
    No
  • With air slots
    No
  • Max. system power
    34.00 W
  • Rated luminous flux according to IEC 62722-2-1
    4080 lm
  • Colour temperature
    4000 ... 4000 K
  • Power factor
    0.90
  • Width
    595.00 mm
  • Length
    595.00 mm
  • Built-in width
    575 mm
  • Type of wiring
    Suitable for through wiring
  • Connection type
    Push-in clamp
  • Colour of light adjustable
    No
  • Beam angle adjustable
    No
  • Compatible with Casambi
    No
  • Compatible with Google Assistant
    No
  • IFTTT support available
    Yes
  • Suitable for suspended mounting
    Yes
  • Suitable for built-in mounting
    Yes
  • Suitable for light line configuration
    No
  • With light source
    Yes
  • Surface protection housing
    Powder coating
  • Type of grid
    Matt
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Exchangeable control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Beam angle
    Open beam/diffuse
  • Energy efficiency class of the light source according to EU regulation 2019/2015
    D
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    12
  • Impact strength
    IK02
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Suitable for emergency lighting
    No
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Luminaire efficacy
    120 lm/W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Constant light output (CLO)
    No
  • Height/depth
    32.00 mm
  • Built-in length
    575 mm
  • Built-in height/depth
    50 mm
  • Number of poles
    2
  • Photobiological safety according to EN 62471
    RG0
  • Luminous flux adjustable
    No
  • Operation by Bluetooth
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C)
    No

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Skrzynia Karton
Ilość 1 szt. 6 szt.
Waga (kg) 1,907 12,372
Objętość (m3) 0,014 0,098
Szerokość (m) 0,600 0,240
Długość (m) 0,040 0,620
Głębokość (m) 0,650 0,670
