DAMP PROOF ECO GEN 3 Hermetic LED fixture 52W 7020lm 4000K IP65 120° 150cm gray 4099854080401

local index:
OWF014LEDV
Catalog No:
4099854080401
EAN code:
4099854080401
DAMP PROOF ECO GEN 3 Hermetic LED fixture 52W 7020lm 4000K IP65 120° 150cm gray
Manufacturer: LEDVANCE
Light color [K]: 3500-4800 (natural)
Color Rendering Index [CRI]: >80
Number of light sources: 1
Price:
37,23 €
gross / pcs.
(including VAT 23%)
Last lowest price: 37,23 € gross
Base price: 75,03 € gross -50%
Delivery in 3h
Accessible 193 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Product advantages

  • Low light ripple ≤ 5%
  • Equal light dispersion
  • Energy savings up to 60% (compared to luminaires using fluorescent lamps)
  • Easy installation, connection not required requires tools
  • 5-year warranty

Application areas

  • Ideal for industrial and warehouse rooms
  • Parking lots and underpasses
  • Garages
  • Workshops, assembly lines

Product features

  • High luminous efficiency: up to 135 lm/W
  • Protection level: IP65
  • Light angle: 110°, 90° x 60°, 30° x 80°
  • Installed through wiring 3x1.5 mm²
  • Polycarbonate casing

Equipment / Accessories< /p>

  • Stainless steel clamps with security screws included
  • Mounting accessories included (suspended mounting kit, anti-theft kit)

Technical data

  • Light color [K]
    3500-4800 (natural)
  • Number of light sources
    1
  • Protection class
    II
  • Material
    PC
  • Installation
    Surface-mounted
  • Luminous efficiency [lm/W]
    135
  • Width [mm]
    70
  • Type
    Ceiling
  • Height [mm]
    60
  • lifetime [h]
    50000
  • Color Temperature [K]
    4000
  • Replaceable light source
    NO
  • Color Rendering Index [CRI]
    >80
  • beam angle [°]
    120
  • Color
    Gray
  • Power [W]
    52
  • Rated voltage [V]
    230
  • Level of security
    IP65
  • Darkening
    NO
  • Switch
    NO
  • Light source included
    Yes
  • Degree of mechanical protection
    IK08
  • Lifetime (number of on/off)
    100000

Other technical data

  • Suitable for suspended mounting
    Yes
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    No
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    0
  • Surface protection housing
    Untreated
  • Material cover
    Plastic, opal
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Exchangeable control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    43
  • Impact strength
    IK08
  • Rated ambient temperature according to IEC 62722-2-1
    -20 ... +40 °C
  • Emergency power supply integrated
    No
  • With light sensor
    No
  • With air slots
    No
  • Luminaire efficacy
    135 lm/W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Constant light output (CLO)
    No
  • Height/depth
    60.00 mm
  • Type of wiring
    Through wiring included
  • Connection type
    Push-in clamp
  • Colour of light adjustable
    No
  • Beam angle adjustable
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    Yes
  • Housing material
    Plastic
  • Housing colour
    Grey
  • Voltage type
    AC
  • Nominal current
    230.000 ... 230.000 mA
  • With control gear
    Yes
  • Dimming 0-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    Yes
  • Light outlet
    Direct
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    43
  • Degree of protection (IP)
    IP65
  • Protection class
    II
  • Suitable for emergency lighting
    No
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Max. system power
    52.00 W
  • Rated luminous flux according to IEC 62722-2-1
    7020 lm
  • Colour temperature
    4000 ... 4000 K
  • Power factor
    0.90

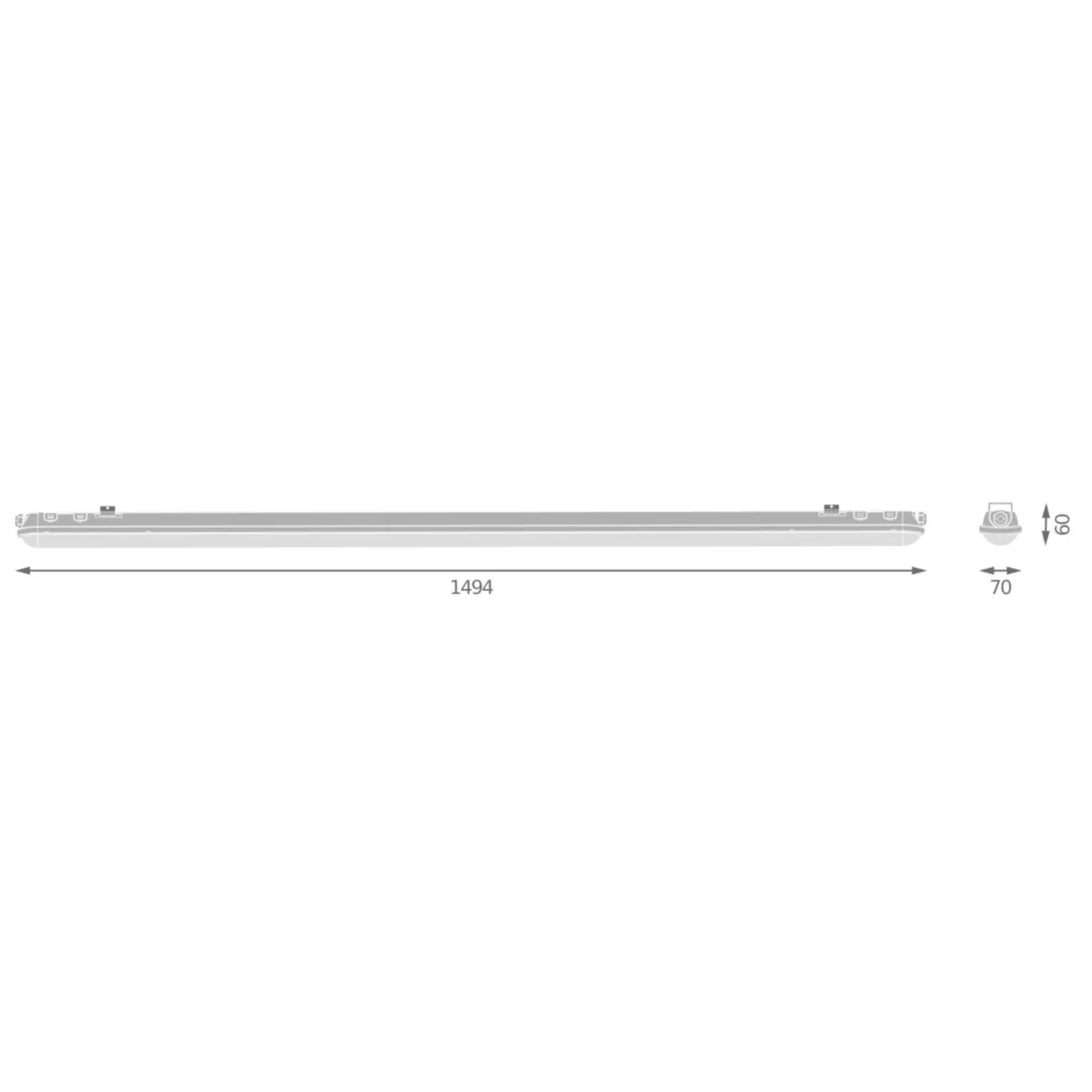

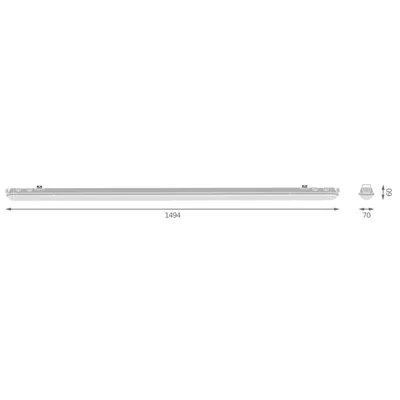

  • Width
    70.00 mm
  • Length
    1494.00 mm
  • Number of poles
    3
  • Photobiological safety according to EN 62471
    RG1
  • Luminous flux adjustable
    No
  • Operation by Bluetooth
    No
  • Compatible with Google Assistant
    No
  • IFTTT support available
    Yes

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 6 pcs.
Weight (kg) 1,474 9,941
Volume (m3) 0,007 0,060
Width (m) 0,075 0,245
Length (m) 1,522 1,539
Depth (m) 0,065 0,158
