el12 Cables and wires Copper cables for permanent installation Cu flat cables

YDYp 5x2.5 cable 450/750V white 172153019C0100

local index:
KPP382NKTQ
Catalog No:
172153019C0100
EAN code:
5907802038789

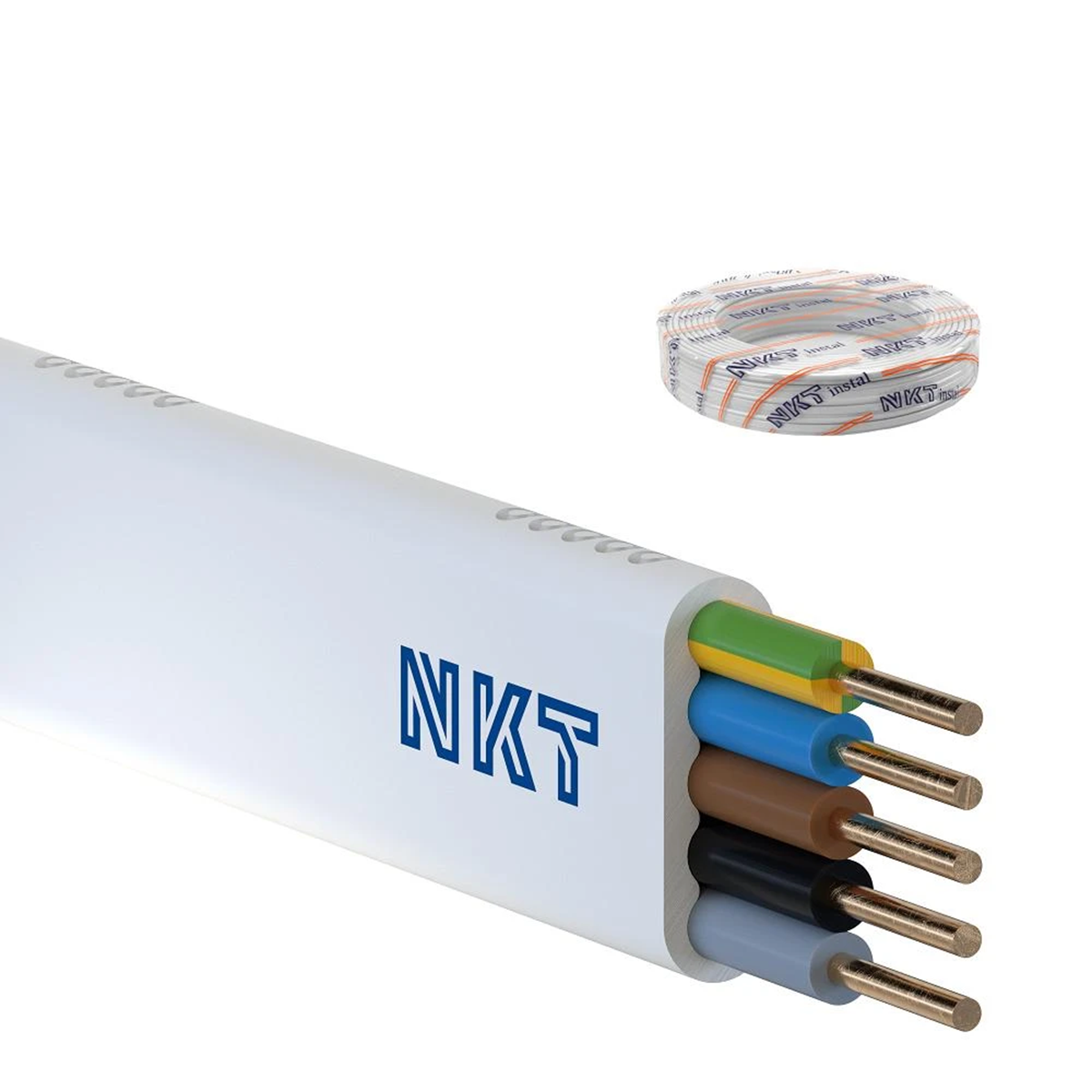

YDYp 5x2.5 cable 450/750V white
YDYp 5x2.5 cable 450/750V white

Click on the photo to enlarge

Manufacturer: NKT
Number of veins: 5
Color: White
Vein material: Copper
See full description
Price:
2,04 €
gross / m.
(including VAT 23%)
Delivery in 3h
Accessible 4394 m.
Pickup in 1h
Quantity m.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Product description Technical data

Product description

Cable YDYpżo 5x2, 5 450/750 white, flat, multi-core for permanent installation.

Installation cable with single-wire copper conductors in insulation and PVC sheath.

Technical data

  • Number of veins
    5
  • Vein material
    Copper
  • Core cross-section [mm²]
    2.5
  • Libra
    228 kg/km
  • Insulation material
    PVC
  • Color
    White
  • Rated voltage [V]
    450/750
  • Core
    Wire
  • Accurate color
    White
  • PKWIU
    27.32.13.0

Other technical data

  • Conductor material
    Copper
  • Nominal cross section conductor
    2.5 mm²
  • Number of cores
    5
  • Material core insulation
    Polyvinyl chloride (PVC)
  • Core identification
    Colour
  • Screen
    No
  • Protective barrier
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    White
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low temperature resistant according to EN 60811-504+505+506
    No
  • Wytrzymałość (trwałość) izolacji
    No
  • Min. permitted bending radius, stationary application/permanent installation
    4 mm
  • Conductor surface
    Bare
  • Conductor category
    Class 1 = solid
  • Twisted cores
    No
  • Specification core insulation
    Other
  • Max. conductor temperature
    +70 °C
  • Drain wire
    No
  • Armouring/reinforcement
    None
  • Specification material outer sheath
    Other
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    No
  • Low smoke (according to EN 61034-2)
    No
  • Oil resistant according to EN IEC 60811-404
    No
  • Nominal voltage U0
    450 V
  • Nominal voltage U
    750 V

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    nie doty
  • Wydzielane substancje niebezpieczne:
    NPD
  • Numer referencyjny DoP (DWU)
    DOP000042
  • Oznaczenie produktu
    nkt instal YDYpżo 450/750 5x2,5 biały
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014, EN50575:2014/A1:2016
  • Zastosowanie:
    Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu
