el12 Cables and wires Copper cables for permanent installation Cu flat cables

YDYP 5x1.5 cable 450/750V white 172153018C0100

local index:
KPP380NKTQ
Catalog No:
172153018C0100
EAN code:
5907802038741

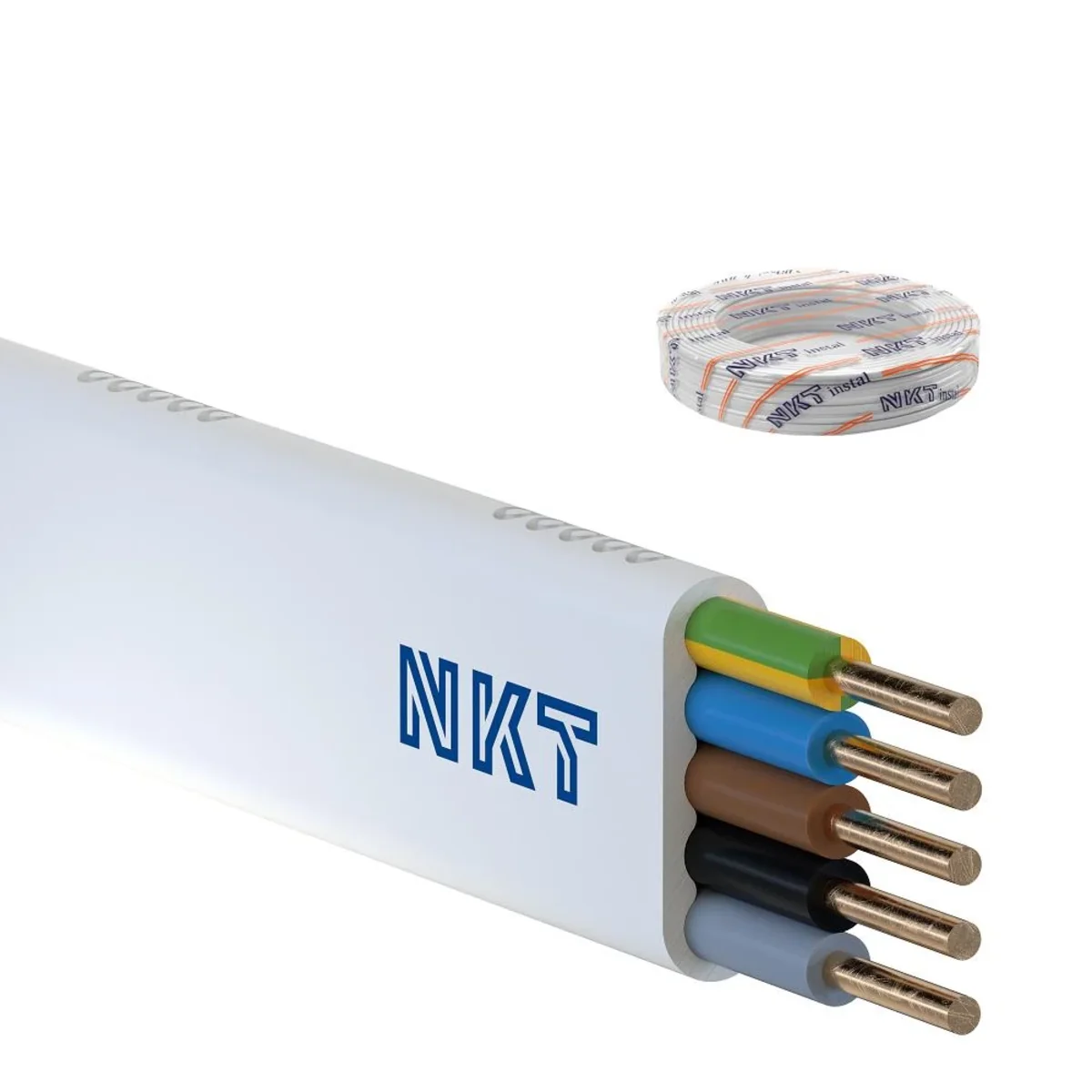

YDYP 5x1.5 cable 450/750V white
YDYP 5x1.5 cable 450/750V white

Click on the photo to enlarge

Manufacturer: NKT
Number of veins: 5
Color: White
Vein material: Copper
See full description
Price:
1,29 €
gross / m.
(including VAT 23%)
Delivery in 3h
Accessible 3528 m.
Pickup in 1h
Quantity m.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Product description Technical data Manufacturer details

Product description

Electrical power cable for permanent installation, insulated and PVC sheath, flat

Technical data

  • Number of veins
    5
  • Vein material
    Copper
  • Core cross-section [mm²]
    1.5
  • Core diameter [mm2]
    1.5
  • Accurate color
    White
  • PKWIU
    27.32.13.0
  • Color
    White
  • Rated voltage [V]
    450/750
  • Core
    Wire
  • Libra
    169 kg/km
  • Insulation material
    PVC

Other technical data

  • Conductor material
    Copper
  • Nominal cross section conductor
    1.5 mm²
  • Number of cores
    5
  • Material core insulation
    Polyvinyl chloride (PVC)
  • Core identification
    Colour
  • Screen
    No
  • Protective barrier
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    White
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low temperature resistant according to EN 60811-504+505+506
    No
  • Wytrzymałość (trwałość) izolacji
    No
  • Min. permitted bending radius, stationary application/permanent installation
    4 mm
  • Conductor surface
    Bare
  • Conductor category
    Class 1 = solid
  • Twisted cores
    No
  • Specification core insulation
    Other
  • Max. conductor temperature
    +70 °C
  • Drain wire
    No
  • Armouring/reinforcement
    None
  • Specification material outer sheath
    Other
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    No
  • Low smoke (according to EN 61034-2)
    No
  • Oil resistant according to EN IEC 60811-404
    No
  • Nominal voltage U0
    450 V
  • Nominal voltage U
    750 V

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    nie doty
  • Wydzielane substancje niebezpieczne:
    NPD
  • Numer referencyjny DoP (DWU)
    DOP000042
  • Oznaczenie produktu
    nkt instal YDYpżo 450/750 5x1,5 biały
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014, EN50575:2014/A1:2016
  • Zastosowanie:
    Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu
