YDYp 3x2.5 cable 450/750V white 172152002C0100

Indeks lokalny:
KPP370NKTQ
Nr katalogowy:
172152002C0100
Kod EAN:
5907802018064
Producent: NKT
Number of veins: 3
Color: White
Maximum operating temperature [°C]: 70
Produkt wielkogabarytowy
Bestsellery
Cena:
98,34 €
gross / op.
(w tym VAT 23%)
0,98 € gross/mb.
Dostawa do 3h
Dostępne 150 op.
Odbiór za 1h
Ilość op.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

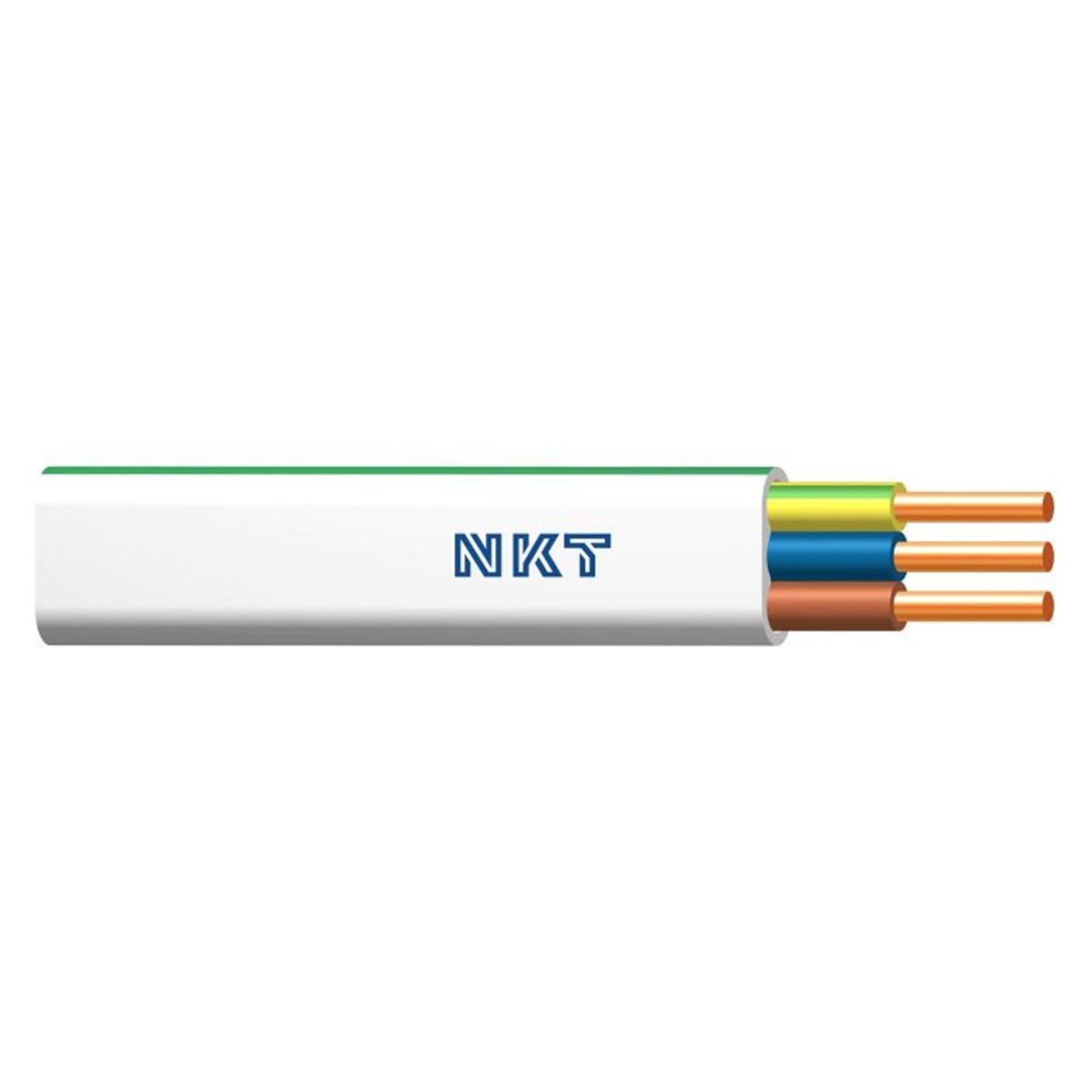

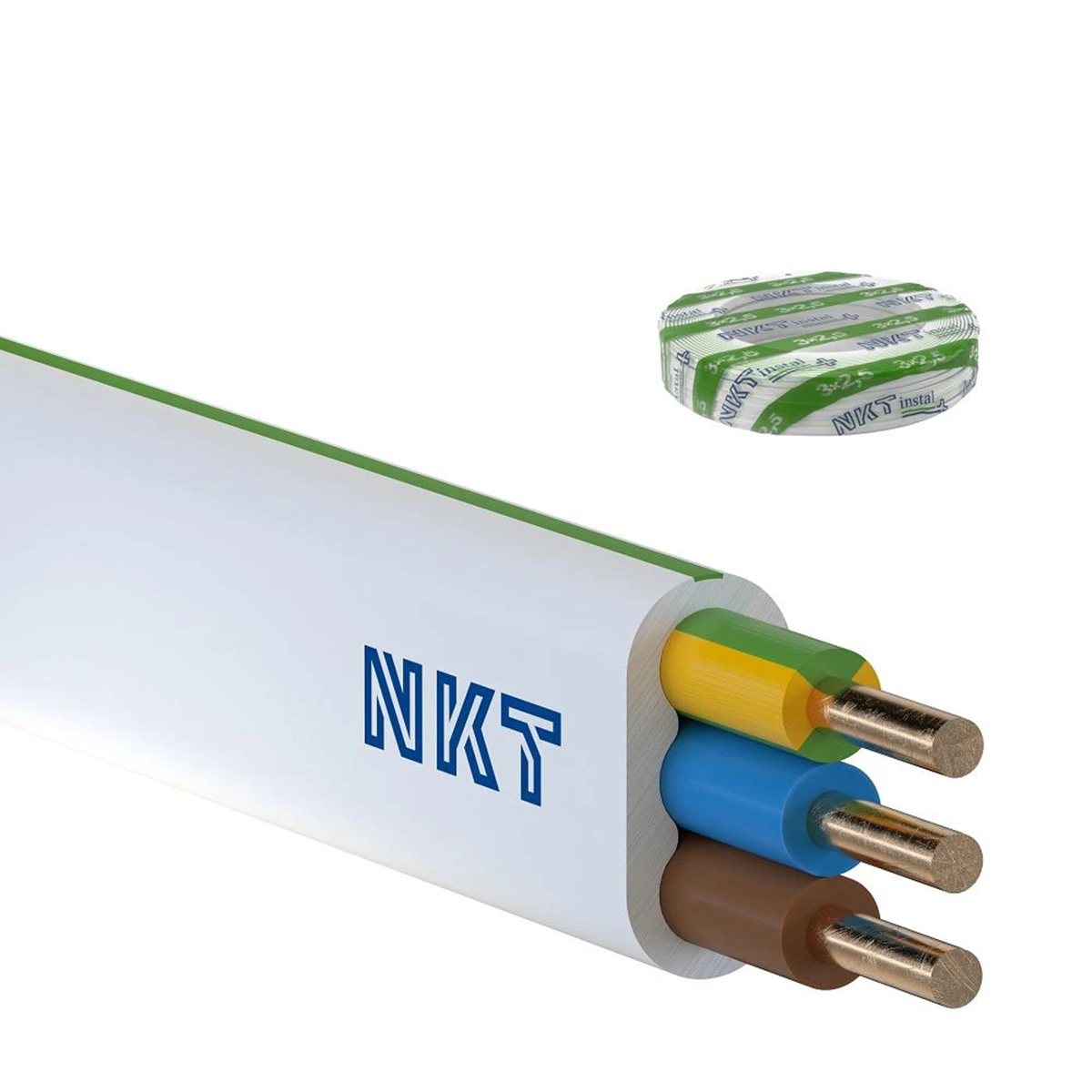

Cable YDYpżo 3X2, 5 450/750 white, flat, multi-core for permanent installation.

Installation cable with single-wire copper conductors in insulation and PVC sheath

Dane techniczne

  • Number of veins
    3
  • Maximum operating temperature [°C]
    70
  • Rated voltage [V]
    450/750
  • Core
    Wire
  • Accurate color
    White
  • PKWIU
    27.32.13.0
  • Color
    White
  • Vein material
    Copper
  • Core cross-section [mm²]
    2.5
  • Wire color
    White
  • Insulation material
    PVC

Pozostałe dane techniczne

  • Conductor material
    Copper
  • Nominal cross section conductor
    2.5 mm²
  • Number of cores
    3
  • Material core insulation
    Polyvinyl chloride (PVC)
  • Core identification
    Colour
  • Screen
    No
  • Protective barrier
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    White
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low temperature resistant according to EN 60811-504+505+506
    No
  • Wytrzymałość (trwałość) izolacji
    No
  • Min. permitted bending radius, stationary application/permanent installation
    4 mm
  • Conductor surface
    Bare
  • Conductor category
    Class 1 = solid
  • Twisted cores
    No
  • Specification core insulation
    Other
  • Max. conductor temperature
    +70 °C
  • Drain wire
    No
  • Armouring/reinforcement
    None
  • Specification material outer sheath
    Other
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    No
  • Low smoke (according to EN 61034-2)
    No
  • Oil resistant according to EN IEC 60811-404
    No
  • Nominal voltage U0
    450 V
  • Nominal voltage U
    750 V

Dane CPR (Construction Products Regulation)

  • Wydzielane substancje niebezpieczne:
    NPD
  • Numer referencyjny DoP (DWU)
    DOP000042
  • Oznaczenie produktu
    NKT instal PLUS YDYpżo 450/750 3x2,5
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014, EN50575:2014/A1:2016
  • Zastosowanie:
    Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu

Dane producenta

  • Producent
    NKT S.A.
  • Adres
    43-502 Warszowice Gajowa 3 Polska
