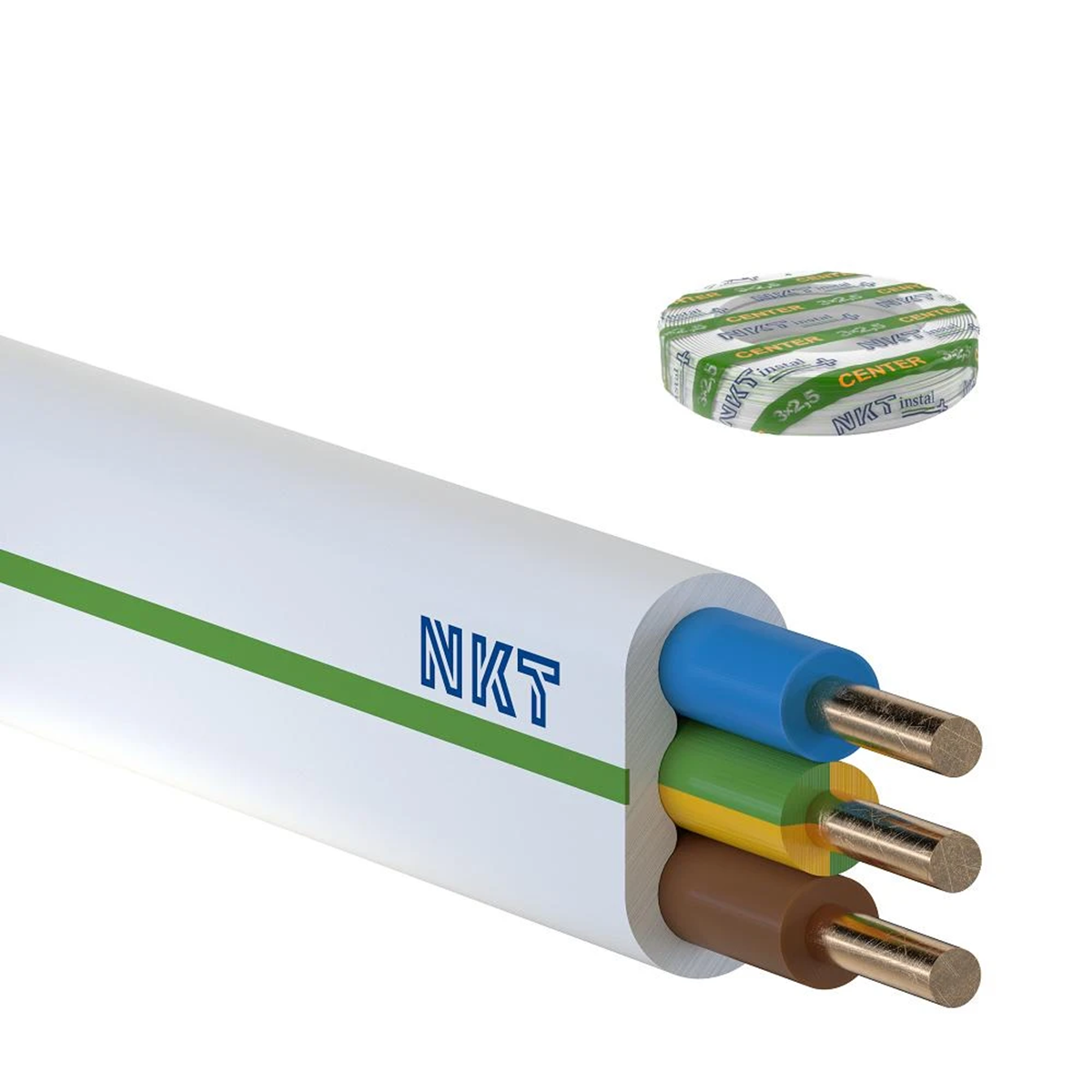

YDYp 3x2.5 cable 450/750V white 100m 172152003C0100

local index:
KPP371NKTQ
Catalog No:
172152003C0100
EAN code:
5907802038529
Manufacturer: NKT
Length [m]: 100
Number of veins: 3
Color: White
Price:
103,71 €
gross / pkg.
(including VAT 23%)
Last lowest price: 94,48 € gross
Base price: 238,90 € gross -57%
Delivery in 3h
Accessible 372 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Print

Product description

The cable YDYp 3x2.5 450/750V white is an excellent choice for people looking for a reliable, durable and safe power cable for use inside residential, public or industrial buildings. This installation cable with solid copper conductors in insulation and PVC sheath meets all safety requirements – it is flexible, resistant to damage, which guarantees a long service life.

The cable YDYp 3x2.5 450/750V in white is the best choice for anyone looking for a reliable cable for the interior of their house/apartment!



Technical data

  • Length [m]
    100
  • Color
    White
  • Vein material
    Copper
  • Core cross-section [mm²]
    2.5
  • Type
    Flat
  • PKWIU
    27.32.13.0
  • Number of veins
    3
  • Maximum operating temperature [°C]
    70
  • Rated voltage [V]
    450/750
  • Core
    Wire
  • Insulation material
    PVC

Other technical data

  • Conductor material
    Copper
  • Nominal cross section conductor
    2.5 mm²
  • Number of cores
    3
  • Material core insulation
    Polyvinyl chloride (PVC)
  • Core identification according to HD 308 S2
    Yes
  • Core identification
    Colour
  • Max. conductor temperature
    +70 °C
  • Drain wire
    No
  • Armouring/reinforcement
    None
  • Specification material outer sheath
    Other
  • Cable geometry
    Flat
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low temperature resistant according to EN 60811-504+505+506
    No
  • Wytrzymałość (trwałość) izolacji
    None
  • Permitted cable outer temperature during assembling/handling
    -5 ... +70 °C
  • Nominal voltage U0
    450 V
  • Circuit integrity
    None
  • Suitable as installation cable
    Yes
  • Suitable as medium-voltage cable
    No
  • Certified as airport lighting cable
    No
  • Conductor surface
    Bare
  • Conductor category
    Class 1 = solid
  • Twisted cores
    No
  • Specification core insulation
    Other
  • Identification/coding colour core
    Other
  • Core colour
    Several
  • Screen
    No
  • Protective barrier
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    White
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    No
  • Low smoke (according to EN 61034-2)
    No
  • Oil resistant according to EN IEC 60811-404
    No
  • Min. permitted bending radius, stationary application/permanent installation
    4 mm
  • Permitted cable outer temperature after assembling without vibration
    -40 ... +70 °C
  • Nominal voltage U
    750 V
  • Shape of conductor
    Round
  • Certified for shipboard application
    No
  • Suitable as high-voltage cable
    No
  • Weight
    137

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    nie doty
  • Wydzielane substancje niebezpieczne:
    NPD
  • Numer referencyjny DoP (DWU)
    DOP000042
  • Oznaczenie produktu
    NKT instal PLUS CENTER YDYpżo 3x2,5
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014, EN50575:2014/A1:2016
  • Zastosowanie:
    Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu
