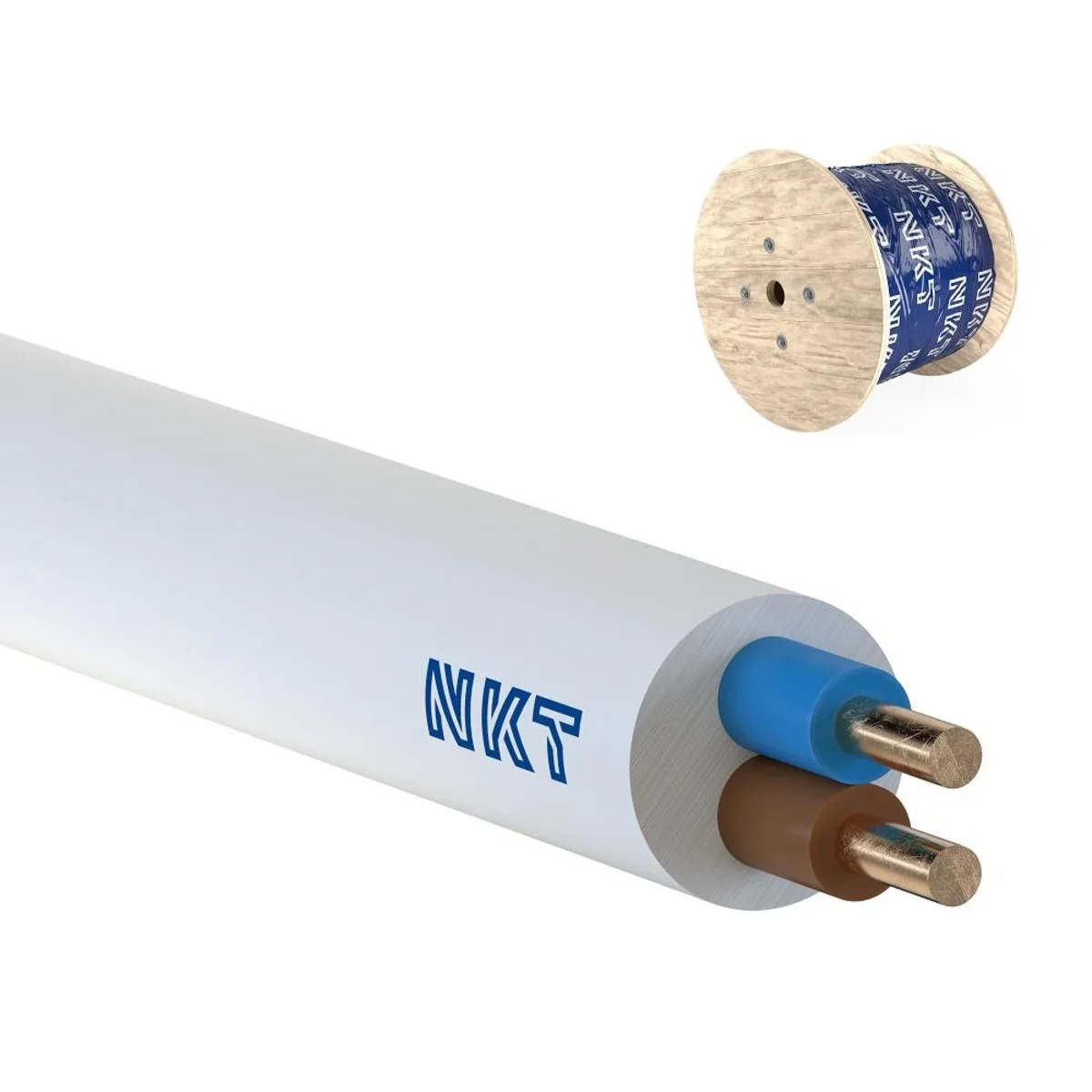

YDY 450/750 2x1.5 white Power cable, installation cable, multi-core with PVC insulation 172171003D1000
Indice locale:
KPO004NKTQ
Numero di catalogo:
172171003D1000
Codice EAN:
5907802041024
Produttore:
NKT
Prezzo:
3,78 zł
gross / metro
(inclusa IVA 23%)
Su ordinazione
Aggiungi alla richiesta di preventivo
Stampa
Chiedi informazioni sul prodotto
Dati tecnici
-
PKWIU27.32.13.0
Altri dati tecnici
-
Conductor surfaceBare
-
Conductor categoryClass 1 = solid
-
Material core insulationPolyvinyl chloride (PVC)
-
Core identificationColour
-
Max. conductor temperature70 °C
-
ScreenNo
-
Protective barrierNone
-
Material outer sheathPolyvinyl chloride (PVC)
-
Colour outer sheathWhite
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Flame retardantAccording to IEC/EN 60332-1-2
-
Low temperature resistant according to EN 60811-504+505+506No
-
Wytrzymałość (trwałość) izolacjiNo
-
Permitted cable outer temperature after assembling without vibration-40 ... 70 °C
-
Nominal voltage U750 V
-
Nominal cross section conductor1.5 mm²
-
Number of cores2
-
Specification core insulationOther
-
Core colourSeveral
-
Żyła ochronnaNo
-
Drain wireNo
-
Armouring/reinforcementNone
-
Specification material outer sheathOther
-
Reaction-to-fire according to EN 13501-6: ClassEca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Halogen free according to EN 60754-1/2No
-
Low smoke (according to EN 61034-2)No
-
Oil resistant according to EN IEC 60811-404No
-
Outer diameter approx.8.04 mm
-
Nominal voltage U0450 V
Dane CPR (Construction Products Regulation)
-
Wydzielane substancje niebezpieczne:NPD
-
Numer referencyjny DoP (DWU)DOP000038
-
Oznaczenie produktuYDY 450/750 2x1,5 biały
-
Reakcja na ogień:Eca
-
Zharmonizowana specyfikacja techniczna (norma):EN 50575:2014, EN50575:2014/A1:2016
-
Zastosowanie:Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu
Dettagli del produttore
-
ProduttoreNKT S.A.
-
Indirizzo43-502 Warszowice Gajowa 3 Polska
-
