YDY 450/750 2x1 white Power cable, installation cable, multi-core with PVC insulation 172171002S0500

Name: YDY 450/750 2x1 white Power cable, installation cable, multi-core with PVC insulation
Brand: NKT
SKU: KPO001NKTQ
Price: 3.14 PLN
Availability: BackOrder

local index:

KPO001NKTQ

Catalog number:

172171002S0500

EAN code:

5907802040997

YDY 450/750 2x1 white Power cable, installation cable, multi-core with PVC insulation

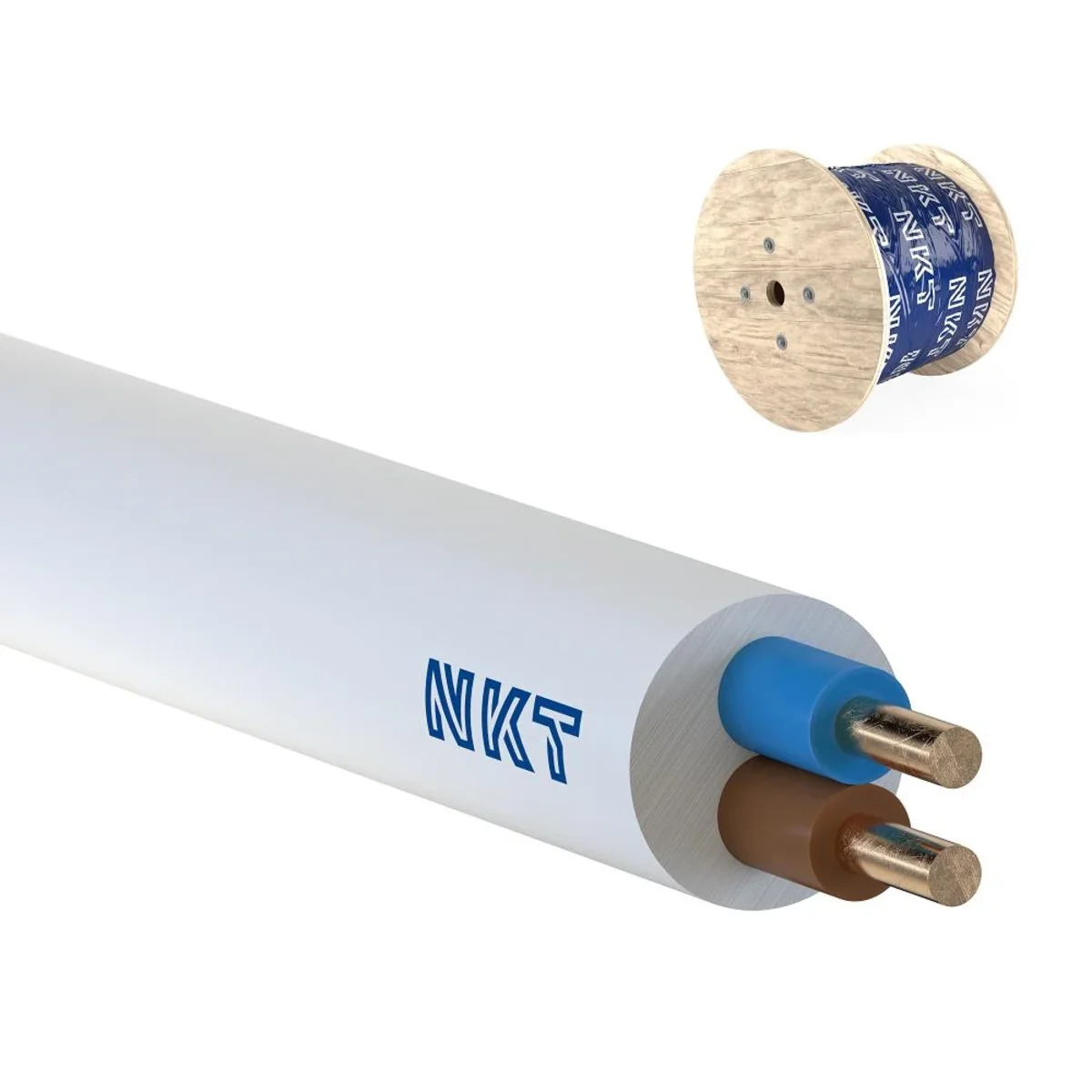

Click on the photo to enlarge

Manufacturer: NKT

Price:

3,14 zł

gross / m.

(including VAT 23%)

Out of stock

On request

Add to inquiry

Print

Ask about the product

Technical data Manufacturer details Files to download

Technical data

PKWIU

27.32.13.0

Other technical data

Conductor surface

Bare
Conductor category

Class 1 = solid
Material core insulation

Polyvinyl chloride (PVC)
Core identification

Colour
Max. conductor temperature

70 °C
Screen

No
Protective barrier

None
Material outer sheath

Polyvinyl chloride (PVC)
Colour outer sheath

White
Reaction-to-fire according to EN 13501-6: Smoke production

None
Reaction-to-fire according to EN 13501-6: Acidity

None
Flame retardant

According to IEC/EN 60332-1-2
Low temperature resistant according to EN 60811-504+505+506

No
Wytrzymałość (trwałość) izolacji

No
Permitted cable outer temperature after assembling without vibration

-40 ... 70 °C
Nominal voltage U

750 V

Nominal cross section conductor

1 mm²
Number of cores

2
Specification core insulation

Other
Core colour

Several
Żyła ochronna

No
Drain wire

No
Armouring/reinforcement

None
Specification material outer sheath

Other
Reaction-to-fire according to EN 13501-6: Class

Eca
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

None
Halogen free according to EN 60754-1/2

No
Low smoke (according to EN 61034-2)

No
Oil resistant according to EN IEC 60811-404

No
Outer diameter approx.

7.56 mm
Nominal voltage U0

450 V

Dane CPR (Construction Products Regulation)

Wydzielane substancje niebezpieczne:

NPD
Numer referencyjny DoP (DWU)

DOP000038
Oznaczenie produktu

YDY 450/750 2x1 biały

Reakcja na ogień:

Eca
Zharmonizowana specyfikacja techniczna (norma):

EN 50575:2014, EN50575:2014/A1:2016
Zastosowanie:

Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu

Manufacturer details

Manufacturer

NKT S.A.
Address

43-502 Warszowice Gajowa 3 Polska
E-mail

info.pl@nkt.com

Files to download

YDY_450$750V+DOP+DOP000038+PL+Rev11.pdf
