YDY 3x6 cable 450/750V white 172171013C0100

local index:

KPO390NKTQ

Catalog No:

172171013C0100

EAN code:

5907802041352

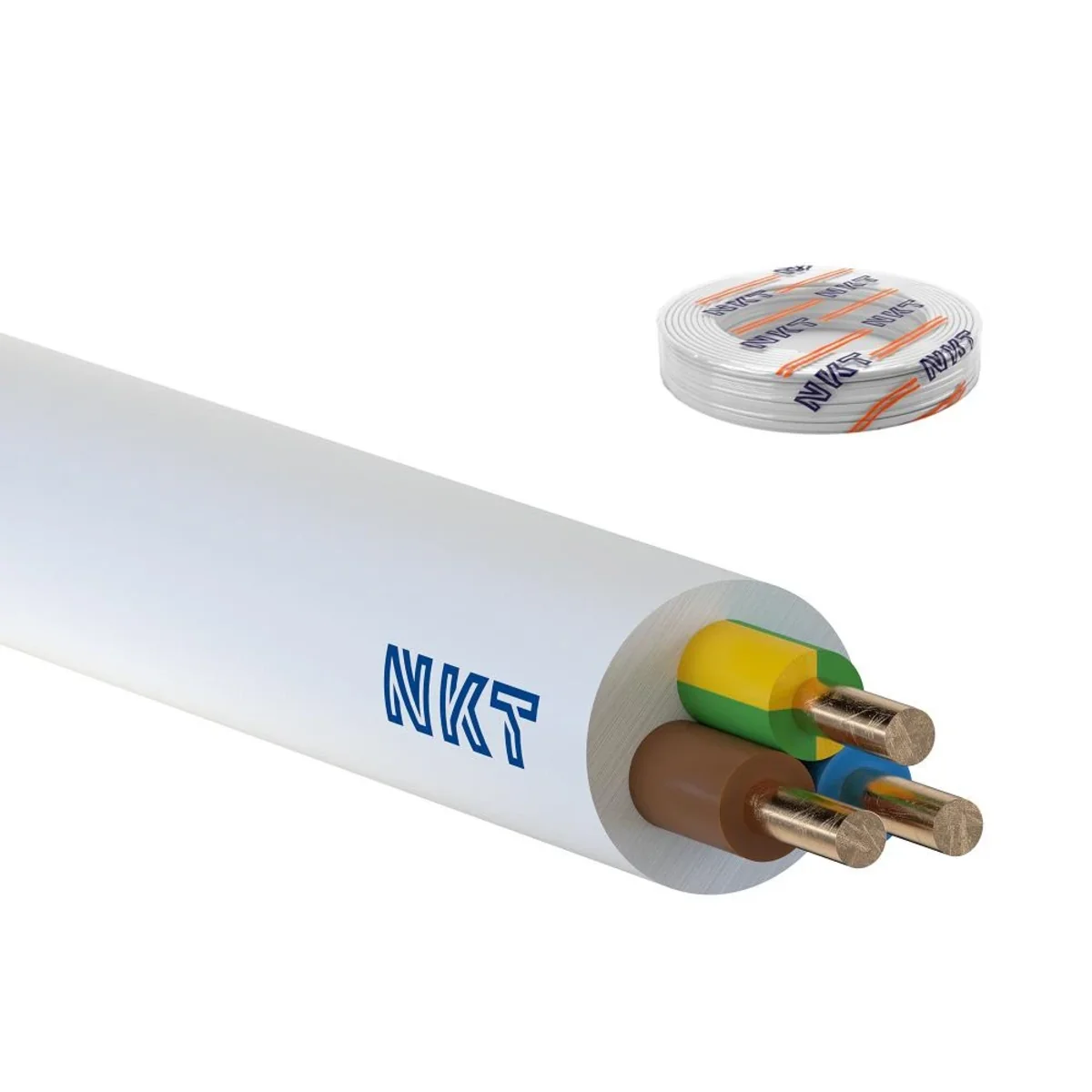

YDY 3x6 cable 450/750V white

YDY 3x6 cable 450/750V white

Click on the photo to enlarge

Manufacturer: NKT

Number of veins: 3

Color: White

Vein material: Copper

See full description

Price:

2,88 €

gross / m.

(including VAT 23%)

Accessible 2101 m.

Quantity m.

(multiplicity:

1

)

It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.

Add to clipboard

Print

Ask about the product

Product description Technical data

Product description

Cable YDYż 3x6 450/750 white, round, multi-core for permanent installation

Installation cable with single-wire copper conductors in insulation and PVC sheath.

Technical data

Number of veins

3
Vein material

Copper
Core cross-section [mm²]

6
Libra

304 kg/km
Insulation material

PVC

Color

White
Rated voltage [V]

450/750
Core

Wire
Accurate color

White
PKWIU

27.32.13.0

Other technical data

Conductor surface

Bare
Conductor category

Class 1 = solid
Material core insulation

Polyvinyl chloride (PVC)
Core identification

Colour
Max. conductor temperature

70 °C
Screen

No
Protective barrier

None
Material outer sheath

Polyvinyl chloride (PVC)
Colour outer sheath

White
Reaction-to-fire according to EN 13501-6: Smoke production

None
Reaction-to-fire according to EN 13501-6: Acidity

None
Flame retardant

According to IEC/EN 60332-1-2
Low temperature resistant according to EN 60811-504+505+506

No
Wytrzymałość (trwałość) izolacji

No
Permitted cable outer temperature after assembling without vibration

-40 ... 70 °C
Nominal voltage U

750 V

Nominal cross section conductor

6 mm²
Number of cores

3
Specification core insulation

Other
Core colour

Several
Żyła ochronna

No
Drain wire

No
Armouring/reinforcement

None
Specification material outer sheath

Other
Reaction-to-fire according to EN 13501-6: Class

Eca
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

None
Halogen free according to EN 60754-1/2

No
Low smoke (according to EN 61034-2)

No
Oil resistant according to EN IEC 60811-404

No
Outer diameter approx.

12.00 mm
Nominal voltage U0

450 V

Dane CPR (Construction Products Regulation)

Numer notyfikowanego laboratorium badawczego CE:

nie doty
Wydzielane substancje niebezpieczne:

NPD
Numer referencyjny DoP (DWU)

DOP000038
Oznaczenie produktu

YDYżo 450/750 3x6 biały

Reakcja na ogień:

Eca
Zharmonizowana specyfikacja techniczna (norma):

EN 50575:2014, EN50575:2014/A1:2016
Zastosowanie:

Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu
