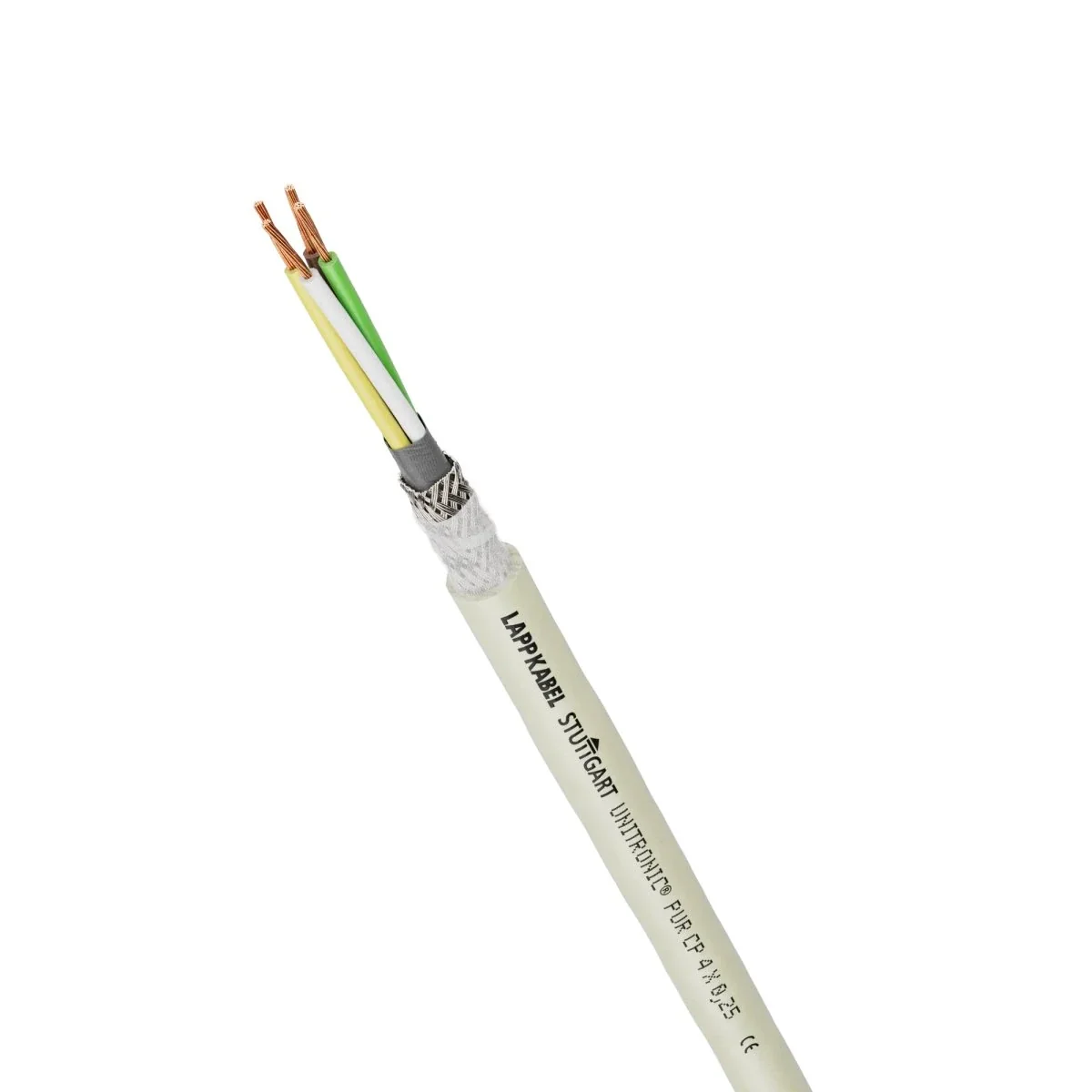

UNITRONIC PUR CP 4x0.25; Cable 0032802
Index local:
KSE078LAPP
Numéro de catalogue:
0032802
Code EAN:
4044773047196
Producteur:
LAPP KABEL
Prix:
29,86 zł
gross / mc.
(y compris la TVA 23%)
Sur commande
Ajouter à la demande de devis
Imprimer
Renseignez-vous sur le produit
Données techniques
Autres données techniques
-
Conductor materialCopper
-
Nominal cross section conductor0.25 mm²
-
Number of cores4
-
Material core insulationPolyvinyl chloride (PVC)
-
Core identification according to HD 308 S2No
-
Screen over stranding elementNone
-
Screen over strandingBraiding
-
Radial water blocking cableNo
-
Material outer sheathPolyurethane (PUR)
-
Colour outer sheathGrey
-
Flame retardant according to IEC 60332-1-2No
-
Flame retardant according to IEC 60332-3-22 (Cat A)No
-
Flame retardant according to IEC 60332-3-24 (Cat C)No
-
Low smoke according to EN IEC 61034-2No
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application/free movement75 mm
-
Permitted cable outer temperature during assembling/handling-5 ... 70 °C
-
CategoryOther
-
Weight41 kg/km
-
Compatible with Grade3TV according to XP-C 90-483No
-
Conductor surfaceBare
-
Conductor categoryClass 5 = flexible
-
Stranding elementOther
-
Specification core insulationOther
-
Core identificationColour
-
StrandingLayers
-
Longitudinal water blocking cableNo
-
Protective sheathPolyurethane (PUR)
-
Specification material outer sheathOther
-
Cable geometryRound
-
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
-
Flame retardant according to IEC 60332-3-23 (Cat B)No
-
Flame retardant according to IEC 60332-3-25 (Cat D)No
-
Halogen free according to EN IEC 60754-1No
-
Reaction-to-fire according to EN 13501-6: ClassNone
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Circuit integrity according to IEC 60331-23No
-
Outer diameter approx.5 mm
-
Min. permitted bending radius, stationary application/permanent installation30 mm
-
Permitted cable outer temperature after assembling without vibration-40 ... 80 °C
-
Certified for shipboard applicationNo
-
Compatible with Grade2TV according to XP-C 90-483No
Détails du fabricant
-
ProducteurLapp Kabel Sp. z o.o.
-
Adresse55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
-
Numéro identifiant TVA8971621588
