Unitronic Li2YCY (TP) 3X2X0.34 cable 0031326
Místní index:
KLB894LAPP
Katalogové číslo.:
0031326
EAN kód:
4044773016000
objemné produkt
Cena:
34,61 zł
gross / bm.
(včetně DPH 23%)
Na zakázku
Přidat do žádosti o cenovou nabídku
Vytisknout
Dotaz na výrobek
Popis produktu

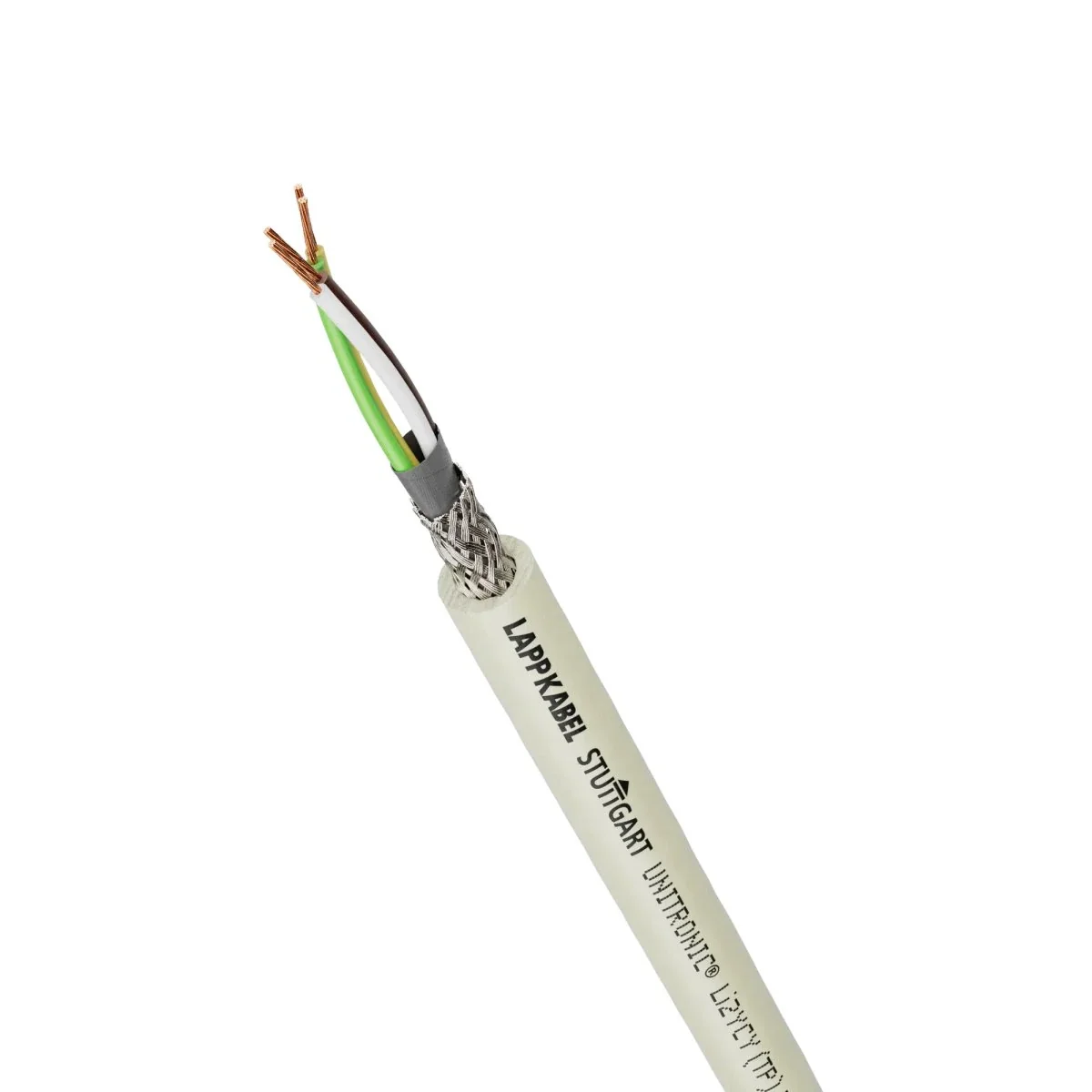

Unitronic Li2YCY (TP) 3X2X0.34 cable
Technické údaje
-
Number of veins6
-
Vein materialCopper
-
CoreCord
-
Insulation materialPolyethylene
-
ColorGray
-
Core cross-section [mm²]0.34
-
Accurate colorRAL 7001
Další technické údaje
-
Conductor materialCopper
-
Nominal cross section conductor0.34 mm²
-
Number of cores6
-
Material core insulationOther
-
Core identification according to HD 308 S2No
-
Screen over stranding elementNone
-
Screen over strandingBraiding
-
Radial water blocking cableNo
-
Material outer sheathPolyvinyl chloride (PVC)
-
Colour outer sheathGrey
-
Flame retardant according to IEC 60332-1-2Yes
-
Flame retardant according to IEC 60332-3-22 (Cat A)No
-
Flame retardant according to IEC 60332-3-24 (Cat C)No
-
Low smoke according to EN IEC 61034-2No
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application/free movement126 mm
-
Permitted cable outer temperature during assembling/handling-5 ... 70 °C
-
CategoryOther
-
Weight89 kg/km
-
Compatible with Grade3TV according to XP-C 90-483No
-
Conductor surfaceBare
-
Conductor categoryClass 2 = stranded
-
Stranding elementPairs
-
Specification core insulationPolyethylene (PE)
-
Core identificationColour
-
StrandingOther
-
Longitudinal water blocking cableNo
-
Protective sheathPolyvinyl chloride (PVC)
-
Specification material outer sheathOther
-
Cable geometryRound
-
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
-
Flame retardant according to IEC 60332-3-23 (Cat B)No
-
Flame retardant according to IEC 60332-3-25 (Cat D)No
-
Halogen free according to EN IEC 60754-1No
-
Reaction-to-fire according to EN 13501-6: ClassNone
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Circuit integrity according to IEC 60331-23No
-
Outer diameter approx.8.4 mm
-
Min. permitted bending radius, stationary application/permanent installation50.4 mm
-
Permitted cable outer temperature after assembling without vibration-40 ... 80 °C
-
Certified for shipboard applicationNo
-
Compatible with Grade2TV according to XP-C 90-483No
Podrobnosti o výrobci
-
VýrobceLapp Kabel Sp. z o.o.
-
Adresa55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
-
DIČ8971621588
