Telecommunication cable J-Y/ST/Y 2x2x0.8 1591501

local index:
KSA331LAPP
Catalog No:
1591501
EAN code:
4044773101683
Manufacturer: LAPP KABEL
Number of veins: 4
Color: Gray
Vein material: Copper
Price:
1,21 €
gross / m.
(including VAT 23%)
Delivery in 3h
Accessible 951 m.
Pickup in 1h
Quantity m.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

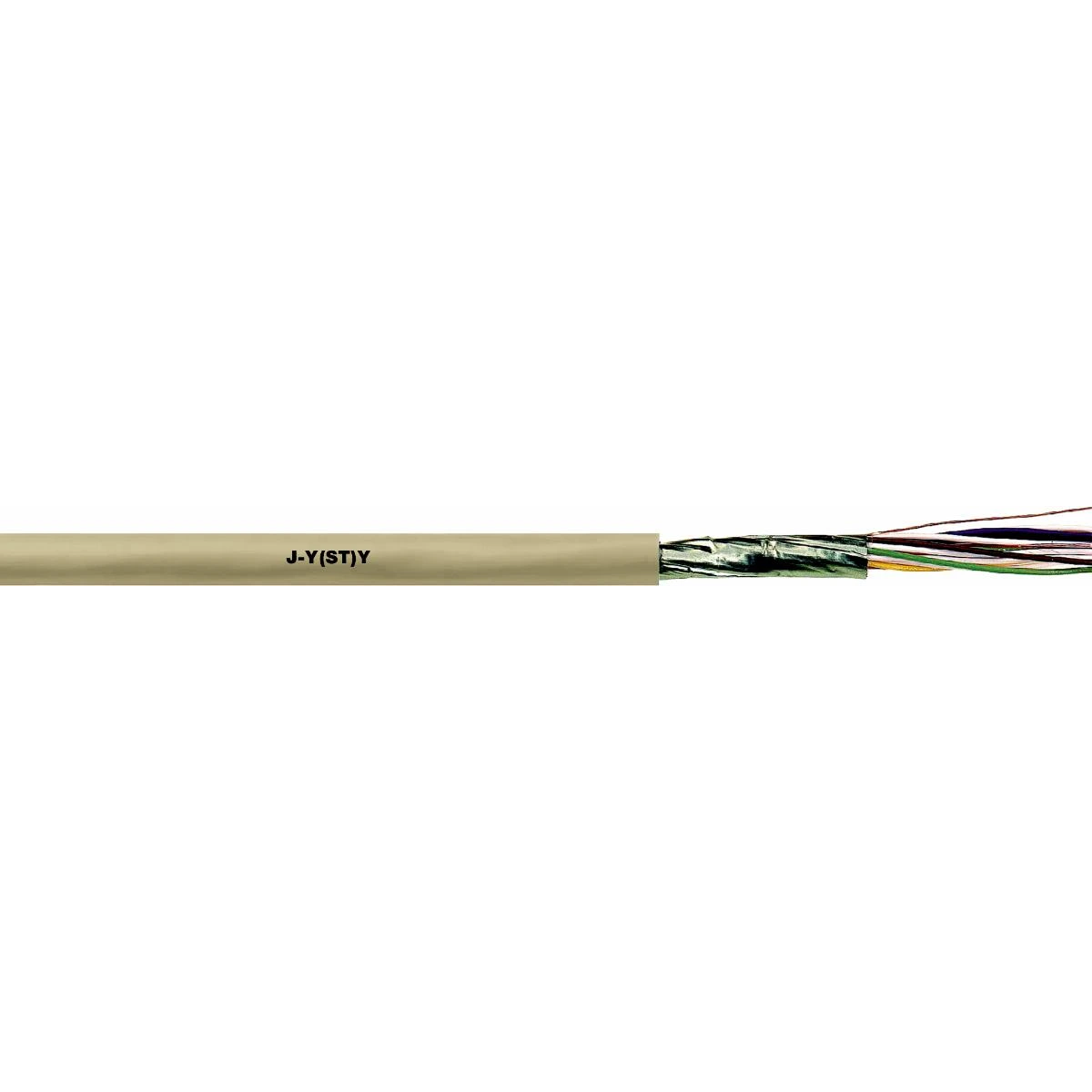

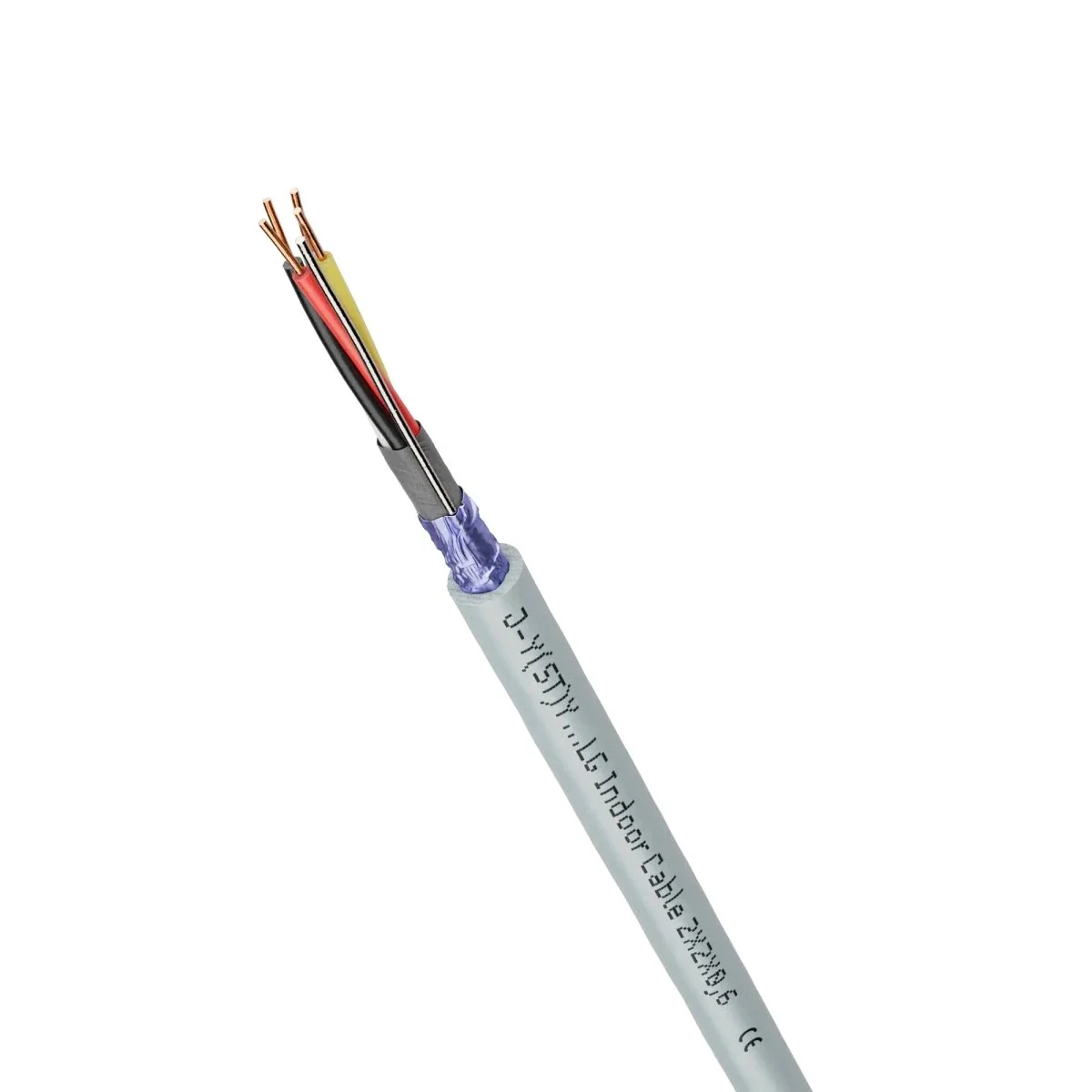

The J-Y(S)Y shielded telecommunications cable is intended for indoor use. Both the core insulation and the outer sheath are made of polyvinyl chloride. In the case of cores, we are dealing with color markings that facilitate the installation of the cable. In the case of the outer coating, the manufacturer used gray. With a fixed arrangement, the product can withstand temperatures from -20 to -70 degrees Celsius. In movable connections, this range is from -20 to +50 degrees Celsius. The approximate outer diameter of the whole is 7 mm. The conductors are made of high-quality copper, which guarantees excellent performance parameters, reliability and resistance of the cable.

Technical data

  • Number of veins
    4
  • Vein material
    Copper
  • Core
    Cord
  • Color
    Gray
  • Core cross-section [mm²]
    0.8
  • Accurate color
    RAL 7001

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    0767
  • Wydzielane substancje niebezpieczne:
    NPD
  • Numer referencyjny DoP (DWU)
    UILCPRDoP17_1591300-1_A
  • Oznaczenie produktu
    J-Y(ST)Y...LG 2X2X0,8
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014 + A1:2016

Manufacturer details

  • Manufacturer
    Lapp Kabel Sp. z o.o.
  • Address
    55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
  • Tax identification number
    8971621588
  • GLN
    4058183000009
