Strand Cu cable 0.75mm2 4510022
Lokaler Index:
KLB074LAPP
Katalognummer:
4510022
EAN-Code:
4044773396713
Preis:
73,12 zł
gross / rolle
(inklusive MwSt 23%)
0,73 zł gross/lfm.
Abholung in 1 Stunde
Menge rolle
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung

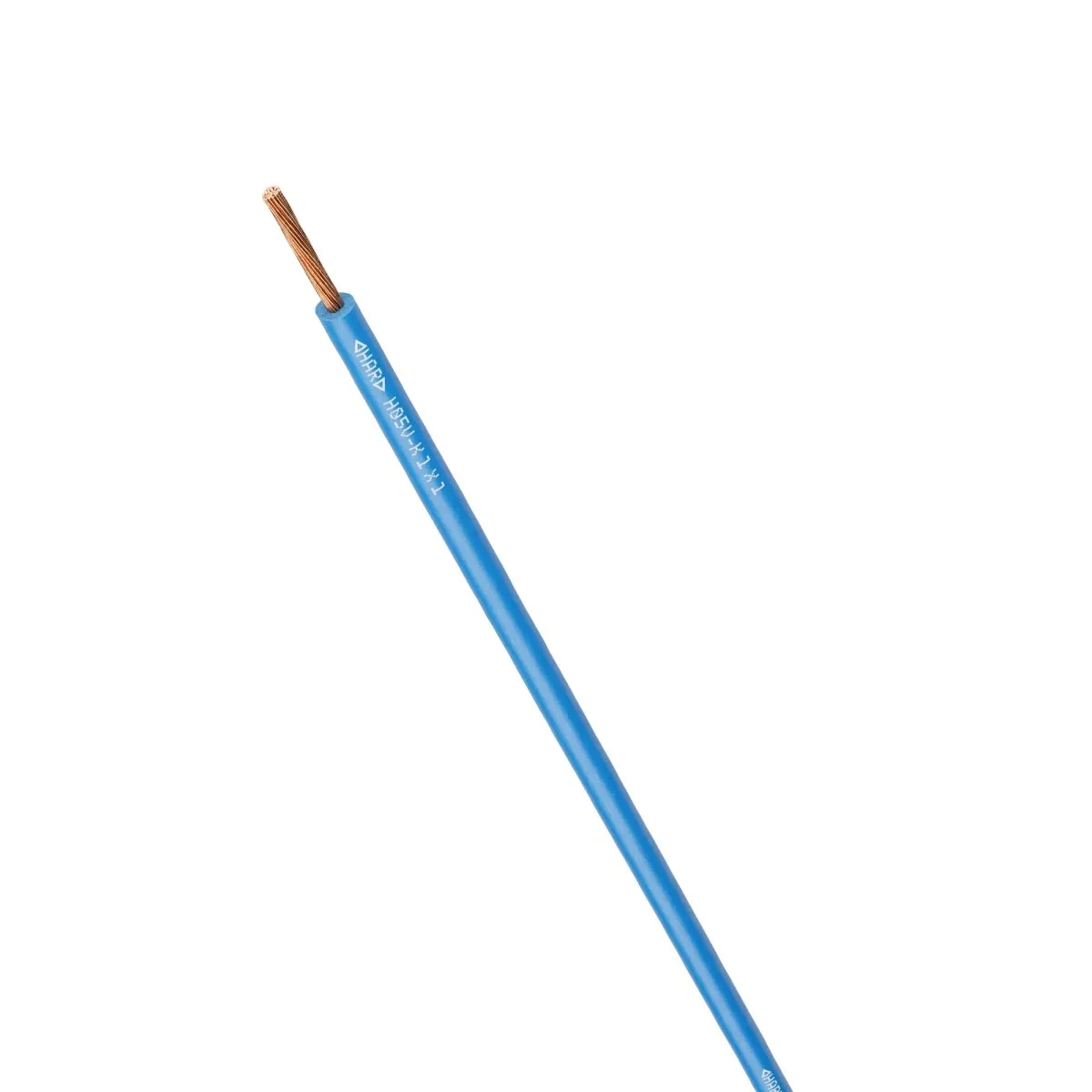

Stranded assembly cable Cu 0.75mm2
Technische Daten
-
Length [m]100
-
ColorBlue
-
Core cross-section [mm²]0.75
-
Outer diameter [mm]2.7
-
The structure of the veinCord
-
Accurate colorBlue
-
Number of veins1
-
Vein materialCopper
-
CoreCord
-
Working temperature [°C](-)30/80
-
Vein typeCu
-
Insulation materialPVC
Weitere technische Daten
-
Conductor materialCopper
-
Identification/coding colour coreBlue
-
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
-
Flame retardant according to IEC 60332-3-23 (Cat B)No
-
Flame retardant according to IEC 60332-3-25 (Cat D)No
-
Halogen free according to EN IEC 60754-1No
-
Reaction-to-fire according to EN 13501-6: ClassEca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Oil resistant according to EN IEC 60811-404No
-
Conductor surfaceBare
-
Flame retardant according to IEC 60332-1-2Yes
-
Flame retardant according to IEC 60332-3-22 (Cat A)No
-
Flame retardant according to IEC 60332-3-24 (Cat C)No
-
Low smoke according to EN IEC 61034-2No
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Weight12 kg/km
Dane CPR (Construction Products Regulation)
-
Numer notyfikowanego laboratorium badawczego CE:0767
-
Wydzielane substancje niebezpieczne:NPD
-
Numer referencyjny DoP (DWU)UILCPRDoP17_4510001-1_A
-
Oznaczenie produktuH05V-K 1X0,75 BU
-
Reakcja na ogień:Eca
-
Zharmonizowana specyfikacja techniczna (norma):EN 50575:2014 + A1:2016
Hersteller-Details
-
HerstellerLapp Kabel Sp. z o.o.
-
Adresse55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
-
Steueridentifikationsnummer8971621588
