Strand Cu 1mm2 assembly cable 4510023
local index:
KLB076LAPP
Catalog No:
4510023
EAN code:
4044773396454
Price:
42,96 €
gross / disc
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity disc
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

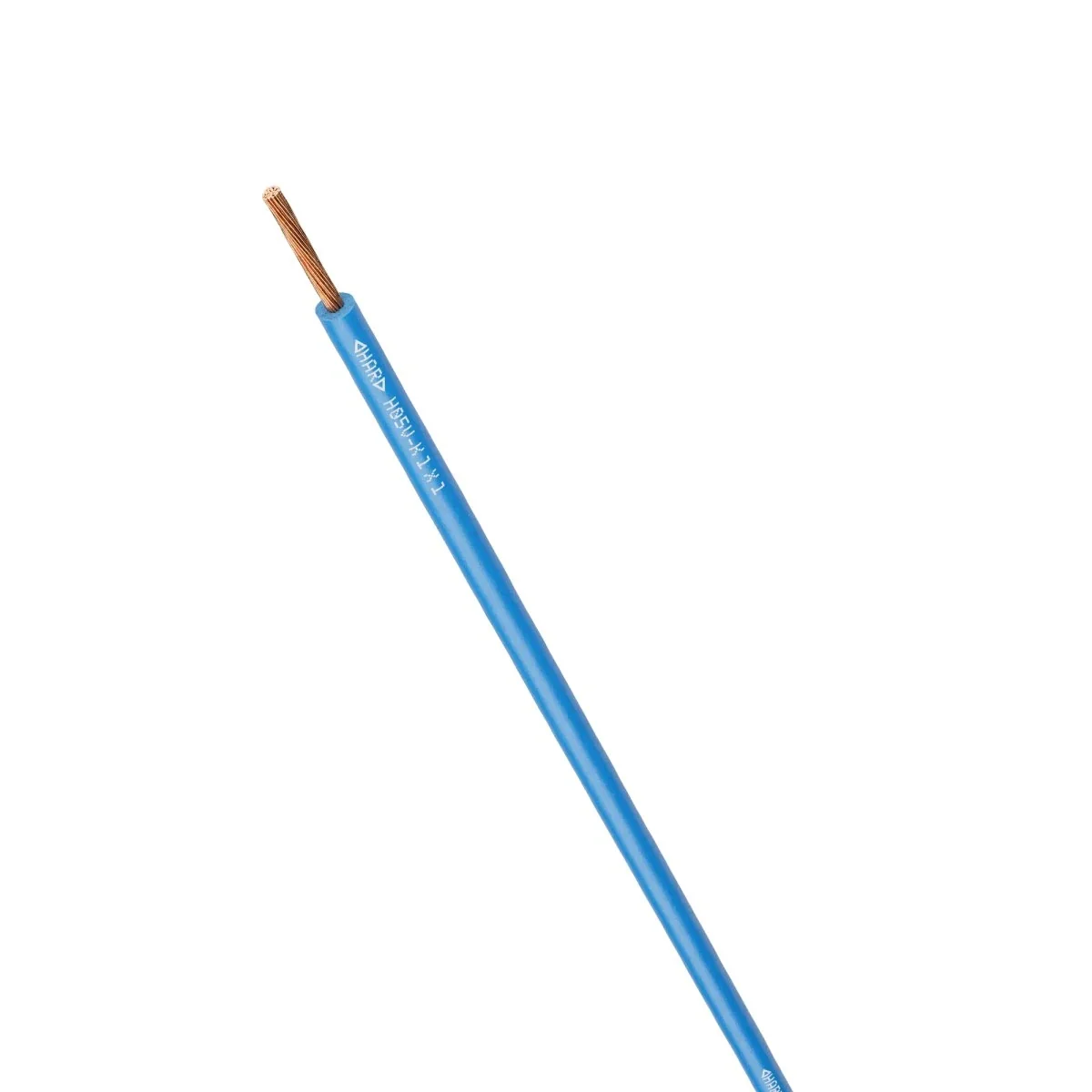

Strand Cu 1mm2 assembly cable
Technical data
-
Number of veins1
-
Vein materialCopper
-
CoreCord
-
Working temperature [°C](-)30/80
-
Vein typeCu
-
Insulation materialPVC
-
ColorBlue
-
Core cross-section [mm²]1
-
Outer diameter [mm]2.8
-
The structure of the veinCord
-
Accurate colorBlue
-
minimum order100m
Other technical data
-
Nominal cross section conductor1 mm²
-
Material core insulationPolyvinyl chloride (PVC)
-
Core colourBlue
-
Flame retardantAccording to IEC/EN 60332-1-2
-
Odporność na niską temperaturę (zgodnie z EN 60811-1-4)No
-
Olejoodporne (zgodnie z EN 60811-2-1)No
-
Permitted cable outer temperature after assembling without vibration-30 ... - °C
-
Conductor categoryClass 5 = flexible
-
ScreenYes
-
Bezhalogenowy EN 50267-2-2No
-
Low smoke (according to EN 61034-2)No
-
Nominal voltage U0300 V
-
Outer diameter approx.2.8 mm
-
Nominal voltage U500 V
Dane CPR (Construction Products Regulation)
-
Numer notyfikowanego laboratorium badawczego CE:0767
-
Wydzielane substancje niebezpieczne:NPD
-
Numer referencyjny DoP (DWU)UILCPRDoP17_4510001-1_A
-
Oznaczenie produktuH05V-K 1X1 BU
-
Reakcja na ogień:Eca
-
Zharmonizowana specyfikacja techniczna (norma):EN 50575:2014 + A1:2016
Manufacturer details
-
ManufacturerLAPP KABEL SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
-
Address55-040 UL. PROFESJONALNA 1
-
