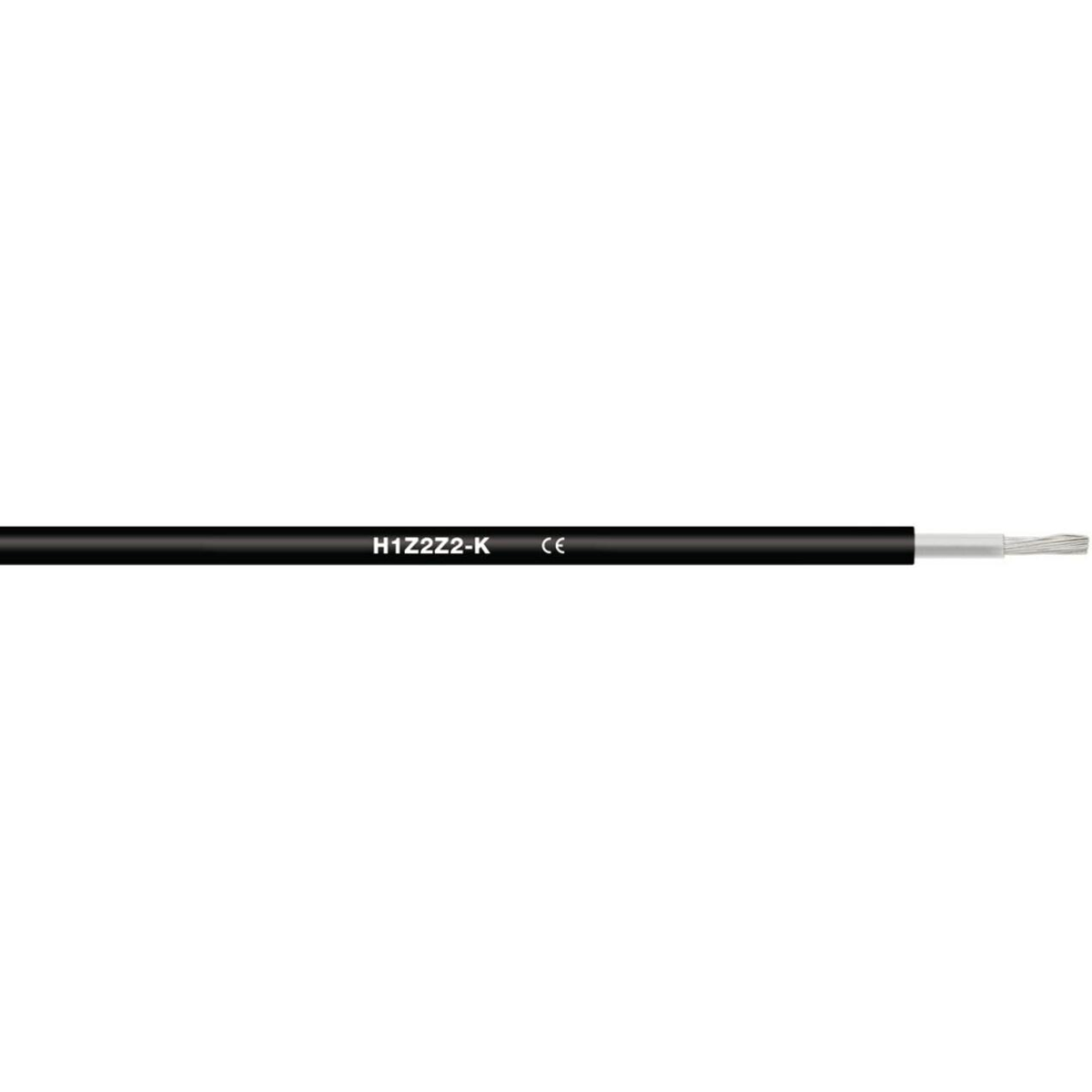

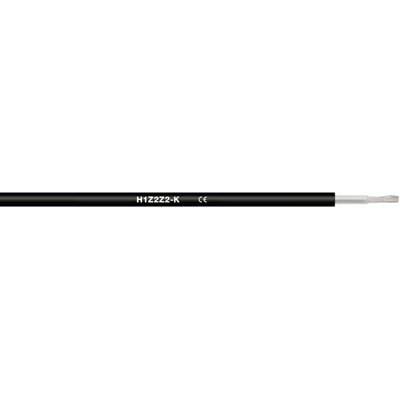

Solar cable H1Z2Z2-K 1x6mm2 black 1023553

Cross-linkedsolar cable compliant with EN 50618, durable, weatherproof, for photovoltaic installations.

Benefits

• Reduced spreading flames and the formation of toxic gases during fire
• Resistant to mechanical hazards
• For outdoor use

Scope of application

• Photovoltaic systems, DC voltage up to 1800 V for burial
• For wiring between solar modules or as an extension cable between individual strings of modules or for AC/DC converter
• For free cabling or building-integrated photovoltaic installations
• Underground use inside conduits/ducts. It can be laid in the ground in the case of: (1) safe drainage of water from the outer surface of the conduit, (2) laying hoses / channels in a professionally made cable trench with at least 50 cm of backfill soil (70 cm under roads), warning tape above the covering with a plastic plate, above a layer of at least 10 cm of covering sand, above a pipe/duct laid on a bed layer of at least 10 cm (cf. VDE 0891-6, section 4.2)
• Long-term, permanent storage or continuous use in or under water not allowed

Product features

• Self-extinguishing according to IEC 60332-1-2
• Resistance to weathering/UV radiation according to EN 50618, Annex E
• Ozone resistance according to EN 50396
• Good resistance to cuts and abrasion
• Halogen-free according to IEC 60754 -1 (amount of acid halogen gas)
  Flue gas corrosiveness according to IEC 60754-2 (degree of acidity)

Product design

• Conductor made of thin tinned copper wires
• Core insulation made of cross-linked copolymer
• Core color: white
• Outer sheath made of cross-linked copolymer
