el12 Cables and wires Specialty cables and others

Power cable N2XH-J 0.6/1KV 3X1.5 RE - B2 112411001D0500

local index:
KUU001NKTQ
Catalog number:
112411001D0500
EAN code:
5907802034897

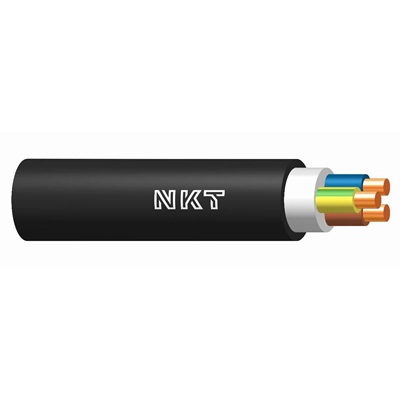

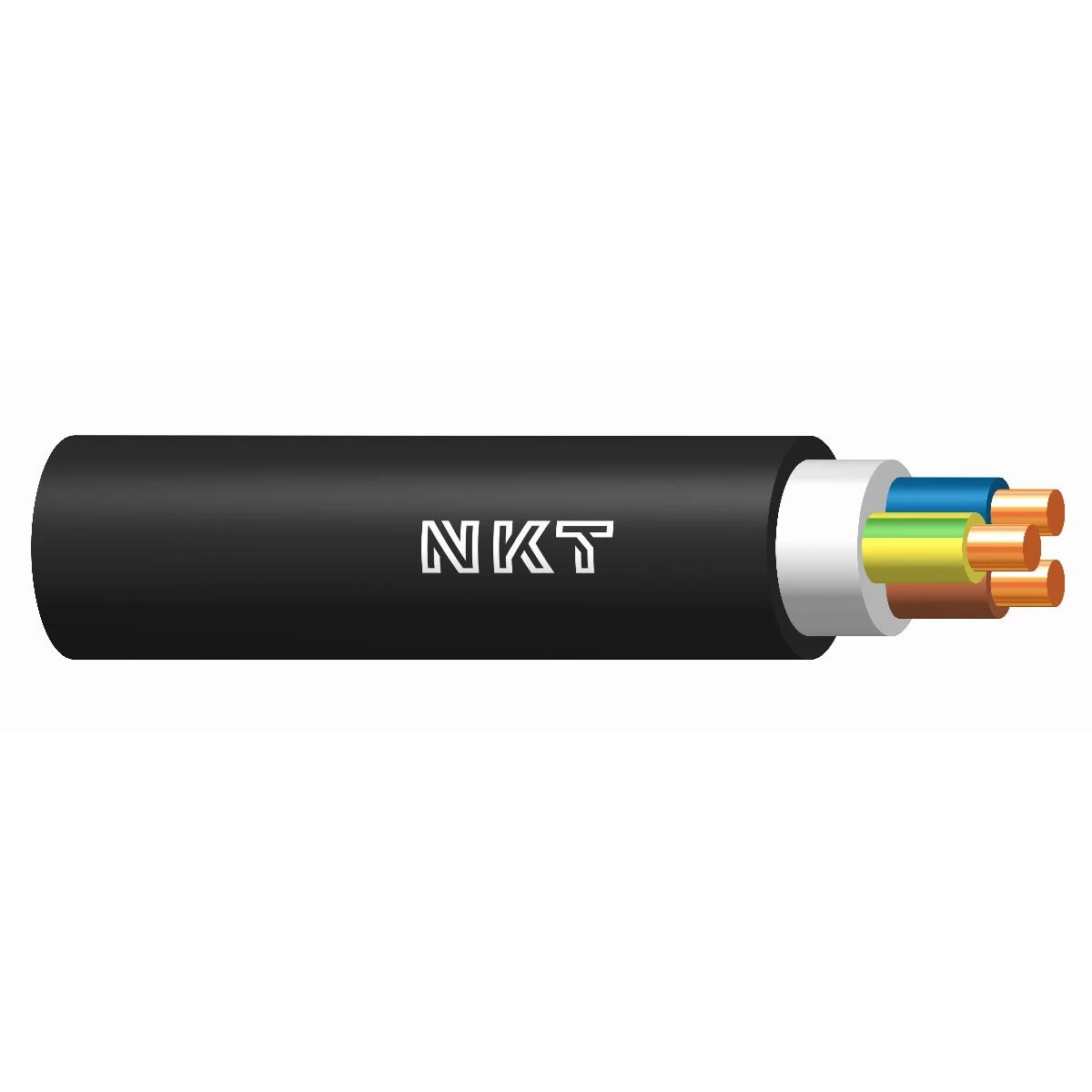

Power cable N2XH-J 0.6/1KV 3X1.5 RE - B2
Power cable N2XH-J 0.6/1KV 3X1.5 RE - B2
Power cable N2XH-J 0.6/1KV 3X1.5 RE - B2
Power cable N2XH-J 0.6/1KV 3X1.5 RE - B2

Click on the photo to enlarge

Manufacturer: NKT
Halogen free: Yes
Number of veins: 3
Color: Black
Price:
5,77 zł
gross / m.
(including VAT 23%)
Accessible 14803 m.
Pickup in 1h
Quantity m.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Technical data Manufacturer details Files to download

Technical data

  • Halogen free
    Yes
  • Color
    Black
  • Rated voltage [V]
    600/1000
  • PKWIU
    27.32.13.0
  • Number of veins
    3
  • Maximum operating temperature [°C]
    90
  • Core cross-section [mm²]
    1.5

Other technical data

  • Conductor material
    Copper
  • Nominal cross section conductor
    1.5 mm²
  • Conductor resistance at 20 °C
    12.1 Ω/km
  • Number of cores
    3
  • Specification core insulation
    Crosslinked polyethylene (XLPE)
  • Core identification
    Colour
  • Fibre optic elements
    No
  • Inner semi-conducting layer
    No
  • Screen
    No
  • Lead sheath
    No
  • Armouring/reinforcement
    None
  • Number of pilot/reduced conductors
    0
  • Material outer sheath
    Polyolefin
  • Colour outer sheath
    Black
  • Conductive coating
    No
  • Longitudinal water blocking screen
    No
  • Flame retardant according to IEC 60332-3-21 (Cat A F/R)
    No
  • Flame retardant according to IEC 60332-3-23 (Cat B)
    No
  • Flame retardant according to IEC 60332-3-25 (Cat D)
    No
  • Halogen free according to EN IEC 60754-1
    Yes
  • Halogen free according to EN IEC 60754-3
    Yes
  • Reaction-to-fire according to EN 13501-6: Smoke production
    s1
  • Reaction-to-fire according to EN 13501-6: Acidity
    a1
  • Circuit integrity according to IEC 60331-2
    None
  • Oil resistant according to EN IEC 60811-404
    No
  • Min. permitted bending radius, stationary application/permanent installation
    119 mm
  • Max. conductor temperature
    90 °C
  • Permitted cable outer temperature after assembling without vibration
    -40 ... 70 °C
  • Nominal voltage U
    1 kV
  • Suitable as installation cable
    Yes
  • Suitable as medium-voltage cable
    No
  • Certified as airport lighting cable
    No
  • Conductor surface
    Bare
  • Conductor category
    Class 1 = solid
  • Shape of conductor
    Round
  • Material core insulation
    Polyolefin
  • Core identification according to HD 308 S2
    Yes
  • Laminated sheath
    No
  • With protective conductor
    Yes
  • Outer semi-conducting layer
    No
  • Drain wire
    No
  • Protective barrier
    None
  • Radial water blocking cable
    No
  • Concentric conductor
    None
  • Specification material outer sheath
    Other
  • Cable geometry
    Round
  • Longitudinal water blocking conductors
    No
  • Flame retardant according to IEC 60332-1-2
    Yes
  • Flame retardant according to IEC 60332-3-22 (Cat A)
    No
  • Flame retardant according to IEC 60332-3-24 (Cat C)
    Yes
  • Low smoke according to EN IEC 61034-2
    Yes
  • Halogen free according to EN IEC 60754-2
    Yes
  • Reaction-to-fire according to EN 13501-6: Class
    B2ca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    d1
  • Circuit integrity according to IEC 60331-1
    None
  • Circuit integrity according to IEC 60331-3
    None
  • Outer diameter approx.
    9.915 mm
  • Weight
    148 kg/km
  • Permitted cable outer temperature during assembling/handling
    -5 ... 40 °C
  • Nominal voltage U0
    0.6 kV
  • UV resistant
    Yes
  • Certified for shipboard application
    No
  • Suitable as high-voltage cable
    No
  • With rodent protection
    No

Dane CPR (Construction Products Regulation)

  • Wydzielane substancje niebezpieczne:
    NPD
  • Numer referencyjny DoP (DWU)
    DOP000387
  • Oznaczenie produktu
    N2XH-J 0,6/1kV 3x1,5 RE B2ca s1a d1 a1
  • Reakcja na ogień:
    B2ca s1a d1 a1
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014, EN50575:2014/A1:2016
  • Zastosowanie:
    Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu

Manufacturer details

  • Manufacturer
    NKT S.A.
  • Address
    43-502 Warszowice Gajowa 3 Polska
  • E-mail
    info.pl@nkt.com
