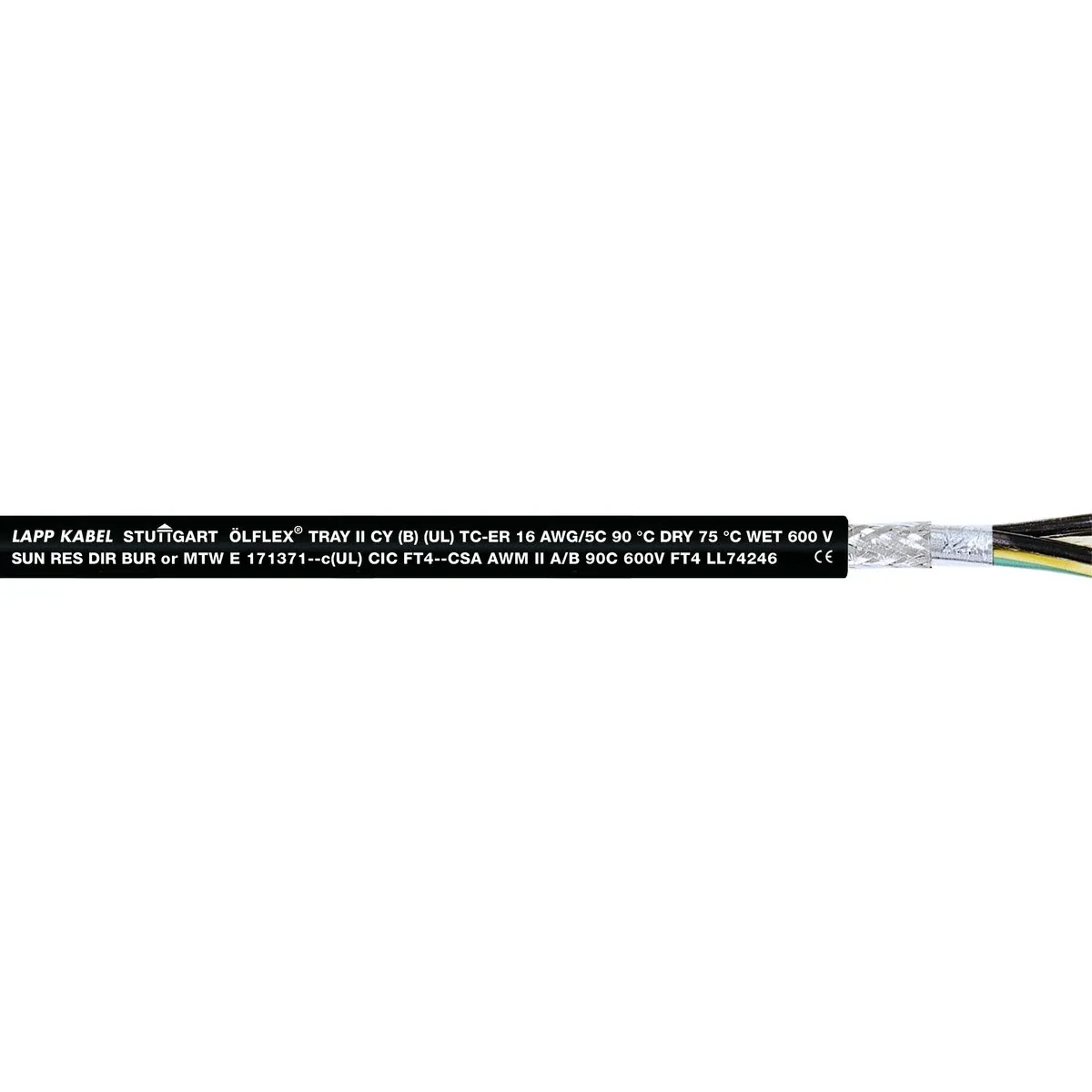

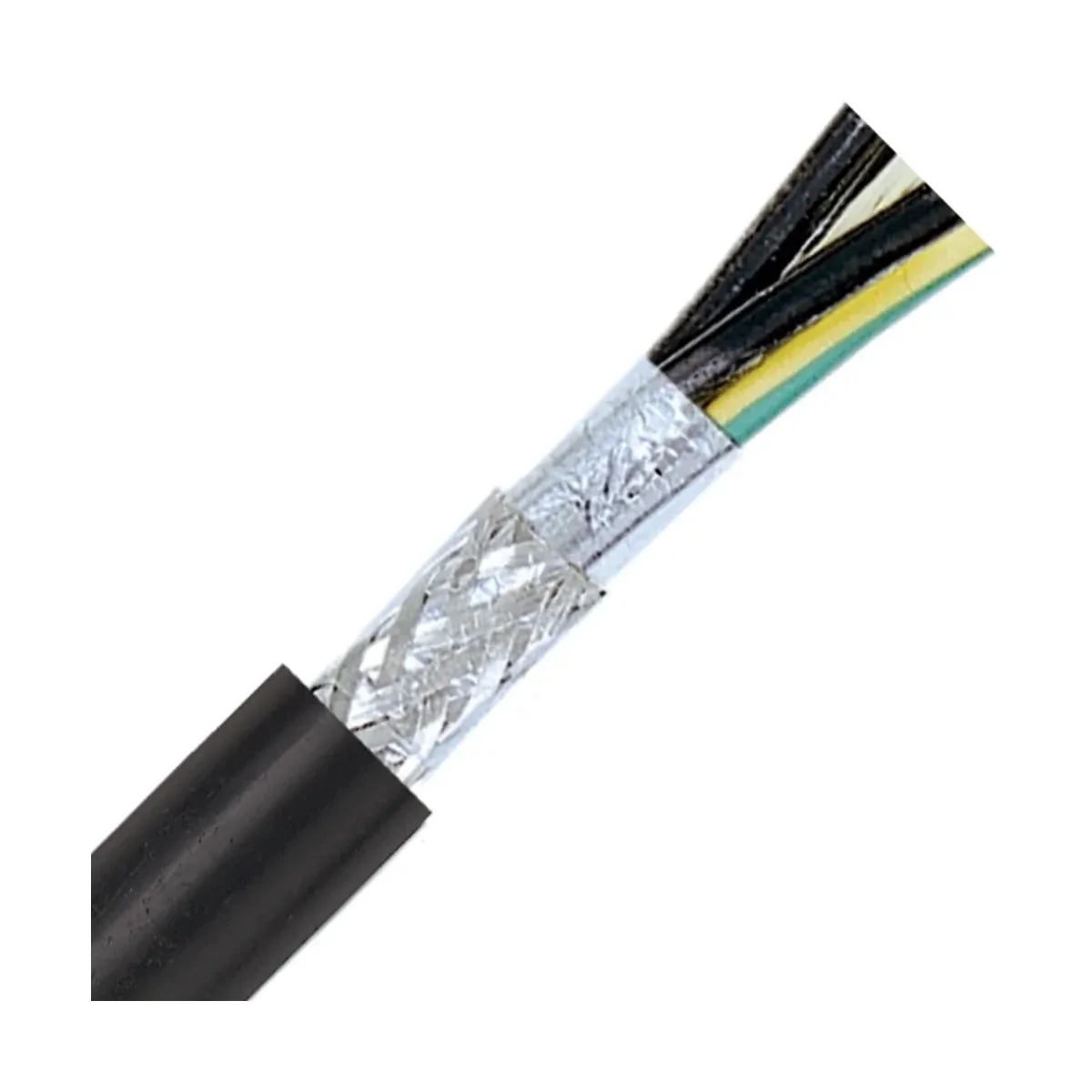

ÖLFLEX TRAY II CY 4G6 10/4C; Cable 2210040
Místní index:
KSA4M7LAPP
Katalogové číslo.:
2210040
EAN kód:
4044773099539
Výrobce:
LAPP KABEL
objemné produkt
Cena:
260,54 zł
gross / bm.
(včetně DPH 23%)
Na zakázku
Přidat do žádosti o cenovou nabídku
Vytisknout
Dotaz na výrobek
Technické údaje
Další technické údaje
-
Conductor materialCopper
-
AWG size10
-
Conductor categoryClass 5 = flexible
-
Screen over stranding elementNone
-
Material core insulationPolyvinyl chloride (PVC)
-
Core identification according to HD 308 S2No
-
With protective conductorYes
-
Specification material outer sheathOther
-
ScreenYes
-
Flame retardant according to IEC 60332-1-2No
-
Flame retardant according to IEC 60332-3-22 (Cat A)No
-
Flame retardant according to IEC 60332-3-24 (Cat C)Yes
-
Low smoke according to EN IEC 61034-2No
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Outer diameter approx.15.5 mm
-
Min. permitted bending radius, stationary application/permanent installation97.6 mm
-
Permitted cable outer temperature after assembling without vibration-40 ... 70 °C
-
Nominal voltage U1 V
-
Conductor surfaceBare
-
Nominal cross section conductor6 mm²
-
Number of cores4
-
Screen over strandingBraiding
-
Specification core insulationOther
-
Core identificationNumbers
-
Material outer sheathOther
-
Colour outer sheathBlack
-
Cable geometryRound
-
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
-
Flame retardant according to IEC 60332-3-23 (Cat B)No
-
Flame retardant according to IEC 60332-3-25 (Cat D)No
-
Halogen free according to EN IEC 60754-1No
-
Reaction-to-fire according to EN 13501-6: ClassNone
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application/free movement97.6 mm
-
Permitted cable outer temperature during assembling/handling-25 ... 70 °C
-
Nominal voltage U00.6 V
-
Weight552 kg/km
