el12 Cables and wires Signaling and low current cables Shielded signaling and low-current cables

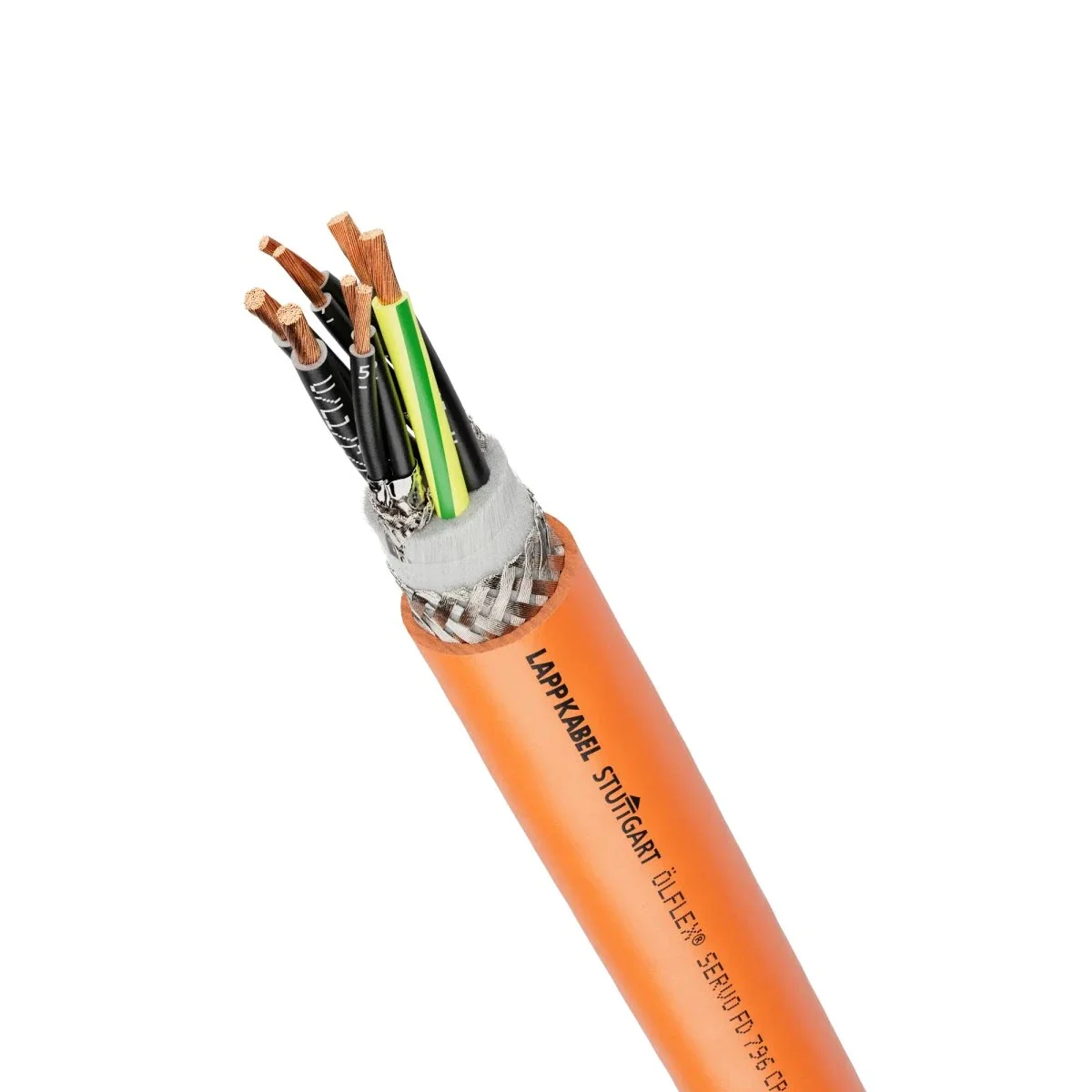

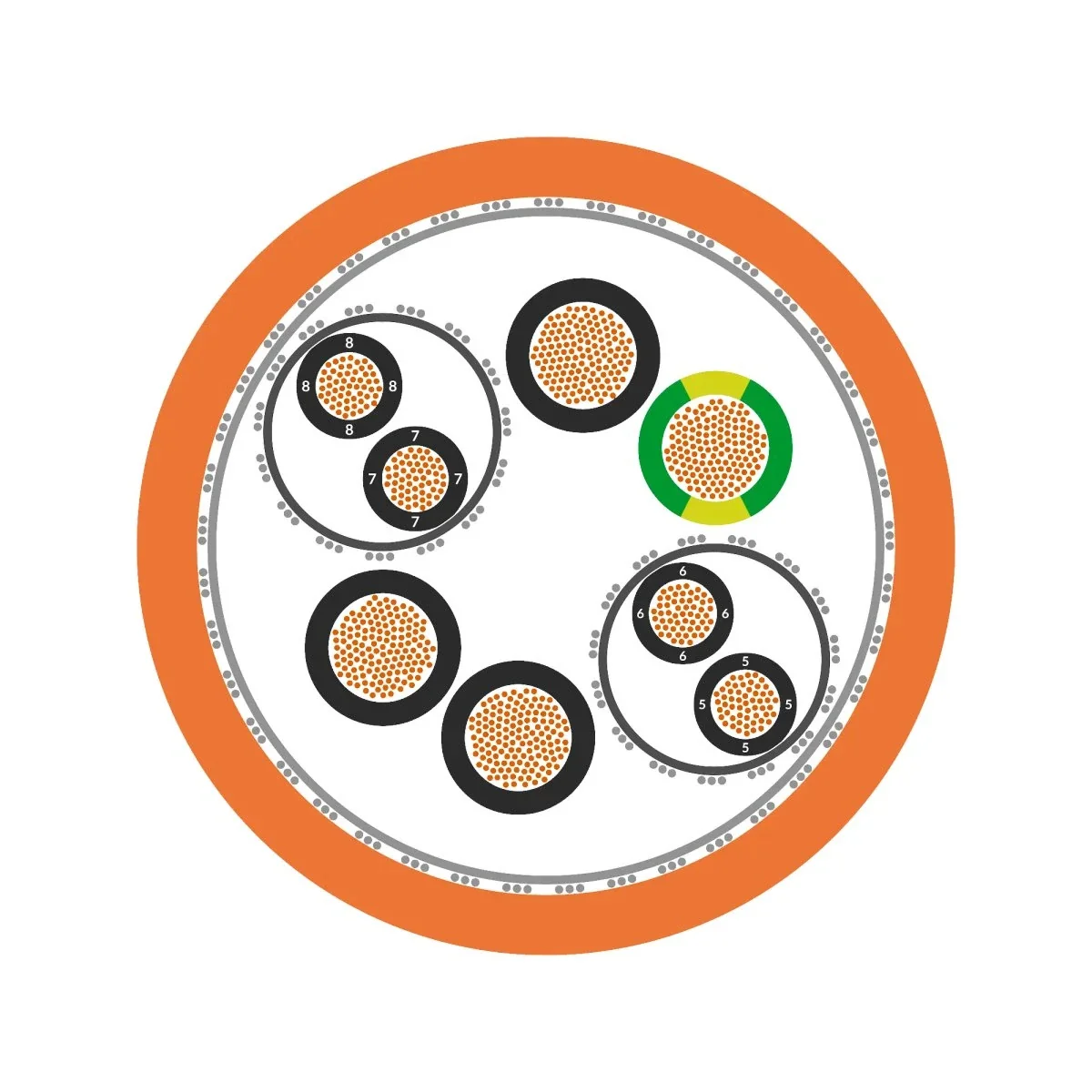

ÖLFLEX SERVO FD 796CP 4G16+2x(2x1.5); Cable 0027974

local index:
KSE103LAPP
Catalog number:
0027974
EAN code:
4044776105329
ÖLFLEX SERVO FD 796CP 4G16+2x(2x1.5); Cable
ÖLFLEX SERVO FD 796CP 4G16+2x(2x1.5); Cable
ÖLFLEX SERVO FD 796CP 4G16+2x(2x1.5); Cable
ÖLFLEX SERVO FD 796CP 4G16+2x(2x1.5); Cable

Click on the photo to enlarge

Manufacturer: LAPP KABEL
Price:
750,58 zł
gross / m.
(including VAT 23%)
Out of stock
On request
Add to inquiry
Print
Technical data Manufacturer details Files to download

Technical data

Other technical data

  • Conductor material
    Copper
  • AWG size
    6
  • Conductor category
    Class 6 = very flexible
  • Screen over stranding element
    Braiding
  • Screen over stranding
    Braiding
  • Specification core insulation
    Polypropylene (PP)
  • With protective conductor
    Yes
  • Specification material outer sheath
    Other
  • Screen
    Yes
  • Flame retardant according to IEC 60332-1-2
    Yes
  • Flame retardant according to IEC 60332-3-22 (Cat A)
    No
  • Flame retardant according to IEC 60332-3-24 (Cat C)
    No
  • Low smoke according to EN IEC 61034-2
    No
  • Halogen free according to EN IEC 60754-2
    No
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Outer diameter approx.
    25.5 mm
  • Min. permitted bending radius, moving application/free movement
    191.3 mm
  • Permitted cable outer temperature after assembling without vibration
    -50 ... 90 °C
  • Nominal voltage U
    1 V
  • Conductor surface
    Bare
  • Nominal cross section conductor
    16 mm²
  • Number of cores
    4
  • Stranding element
    Other
  • Material core insulation
    Other
  • Core identification according to HD 308 S2
    No
  • Material outer sheath
    Polyurethane (PUR)
  • Colour outer sheath
    Orange
  • Cable geometry
    Round
  • Flame retardant according to IEC 60332-3-21 (Cat A F/R)
    No
  • Flame retardant according to IEC 60332-3-23 (Cat B)
    No
  • Flame retardant according to IEC 60332-3-25 (Cat D)
    No
  • Halogen free according to EN IEC 60754-1
    No
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Oil resistant according to EN IEC 60811-404
    No
  • Min. permitted bending radius, moving application with forced guidance
    191.3 mm
  • Min. permitted bending radius, stationary application/permanent installation
    102 mm
  • Nominal voltage U0
    0.6 V
  • Weight
    1135 kg/km

Manufacturer details

  • Manufacturer
    Lapp Kabel Sp. z o.o.
  • Address
    55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
  • Tax identification number
    8971621588
