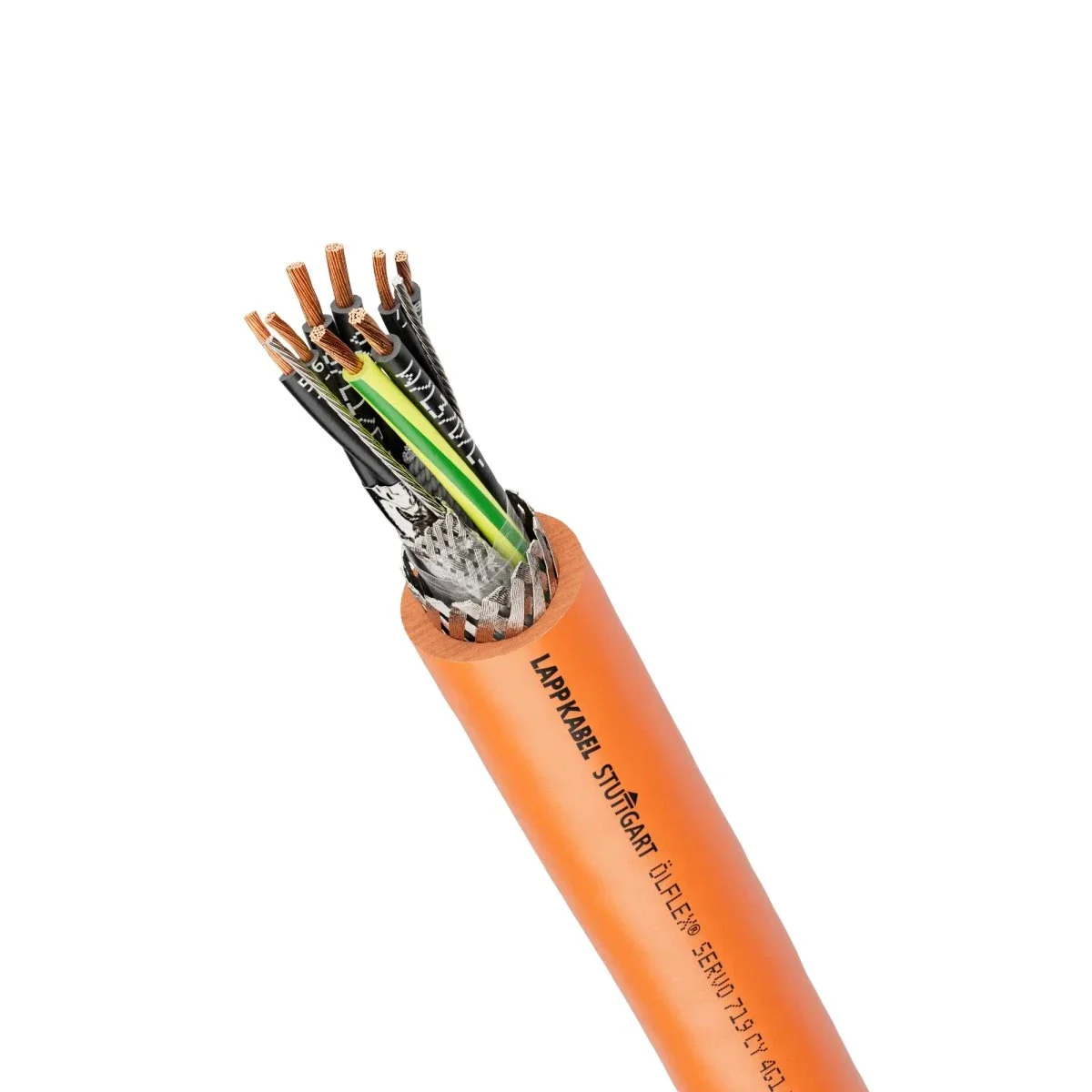

ÖLFLEX SERVO 719 CY 4G4+2x(2x1); Cable 1020027
Místní index:
KSA0C2LAPP
Katalogové číslo.:
1020027
EAN kód:
4044776768401
Výrobce:
LAPP KABEL
Cena:
217,17 zł
gross / bm.
(včetně DPH 23%)
Na zakázku
Přidat do žádosti o cenovou nabídku
Vytisknout
Dotaz na výrobek
Technické údaje
Další technické údaje
-
Conductor materialCopper
-
Nominal cross section conductor4 mm²
-
Number of cores4
-
Stranding elementOther
-
Material core insulationOther
-
Core identification according to HD 308 S2No
-
Material outer sheathPolyvinyl chloride (PVC)
-
Colour outer sheathOrange
-
Cable geometryRound
-
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
-
Flame retardant according to IEC 60332-3-23 (Cat B)No
-
Flame retardant according to IEC 60332-3-25 (Cat D)No
-
Halogen free according to EN IEC 60754-1No
-
Reaction-to-fire according to EN 13501-6: ClassNone
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application/free movement246 mm
-
Permitted cable outer temperature during assembling/handling-5 ... 70 °C
-
Nominal voltage U1 V
-
Conductor surfaceBare
-
Conductor categoryClass 5 = flexible
-
Screen over stranding elementBraiding
-
Screen over strandingBraiding
-
Specification core insulationPolypropylene (PP)
-
With protective conductorYes
-
Specification material outer sheathOther
-
ScreenYes
-
Flame retardant according to IEC 60332-1-2Yes
-
Flame retardant according to IEC 60332-3-22 (Cat A)No
-
Flame retardant according to IEC 60332-3-24 (Cat C)No
-
Low smoke according to EN IEC 61034-2No
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Outer diameter approx.16.4 mm
-
Min. permitted bending radius, stationary application/permanent installation98.4 mm
-
Nominal voltage U00.6 V
-
Weight452 kg/km
