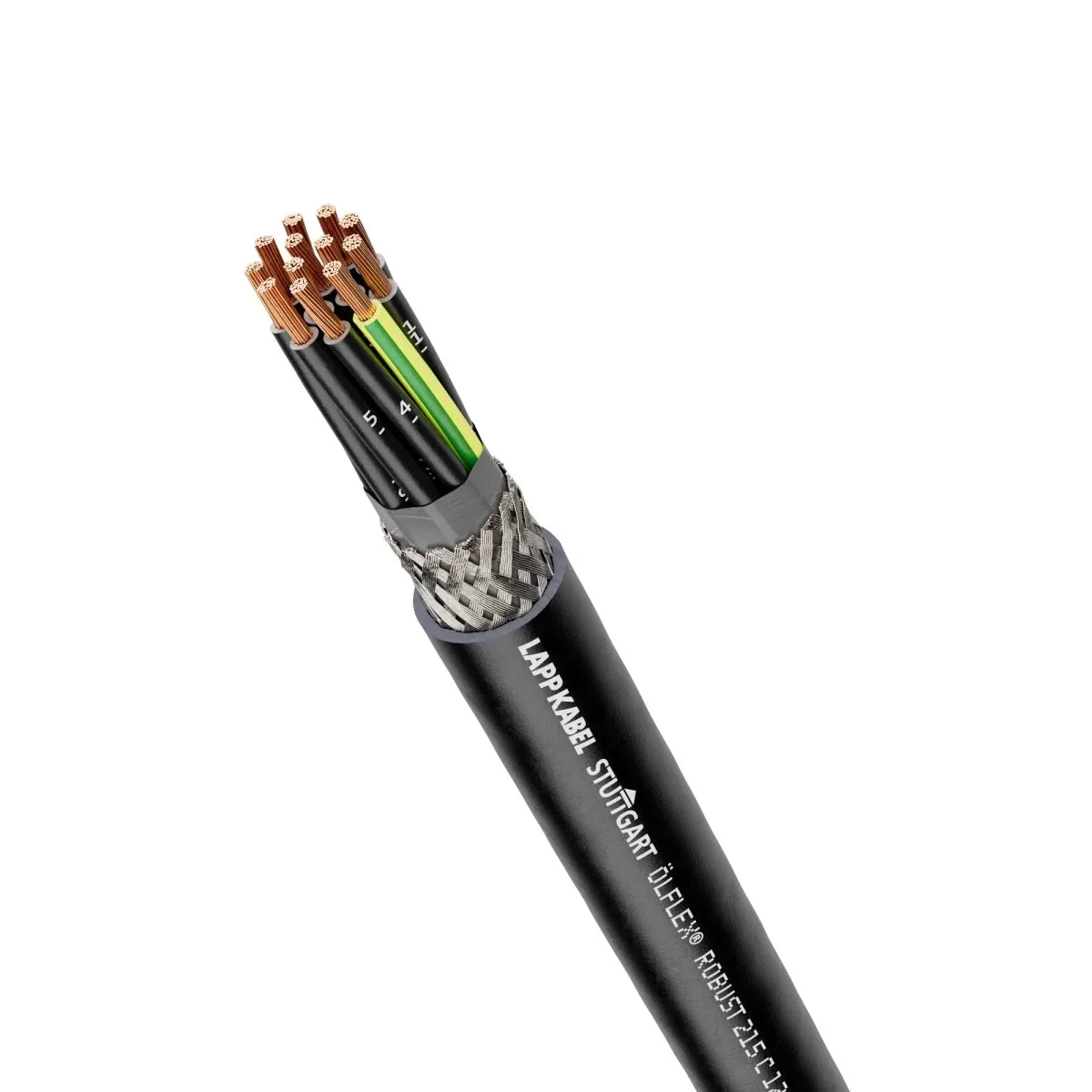

ÖLFLEX ROBUST 215 C 25G1; Cable 0022744
Lokaler Index:
KSA3G8LAPP
Katalognummer:
0022744
EAN-Code:
4044773503128
Hersteller:
LAPP KABEL
Preis:
273,54 zł
gross / lfm.
(inklusive MwSt 23%)
Auf Bestellung
Zur Angebotsanfrage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Technische Daten
Weitere technische Daten
-
Conductor materialCopper
-
Nominal cross section conductor1 mm²
-
Number of cores25
-
Stranding elementOther
-
Material core insulationOther
-
Core identification according to HD 308 S2No
-
With protective conductorYes
-
Specification material outer sheathOther
-
ScreenYes
-
Flame retardant according to IEC 60332-1-2No
-
Flame retardant according to IEC 60332-3-22 (Cat A)No
-
Flame retardant according to IEC 60332-3-24 (Cat C)No
-
Low smoke according to EN IEC 61034-2No
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Outer diameter approx.16.2 mm
-
Min. permitted bending radius, stationary application/permanent installation97.2 mm
-
Permitted cable outer temperature after assembling without vibration-50 ... 80 °C
-
Nominal voltage U500 V
-
Conductor surfaceBare
-
Conductor categoryClass 5 = flexible
-
Screen over stranding elementNone
-
Screen over strandingBraiding
-
Specification core insulationPolypropylene (PP)
-
Core identificationNumbers
-
Material outer sheathOther
-
Colour outer sheathBlack
-
Cable geometryRound
-
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
-
Flame retardant according to IEC 60332-3-23 (Cat B)No
-
Flame retardant according to IEC 60332-3-25 (Cat D)No
-
Halogen free according to EN IEC 60754-1No
-
Reaction-to-fire according to EN 13501-6: ClassNone
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application/free movement324 mm
-
Permitted cable outer temperature during assembling/handling-40 ... 80 °C
-
Nominal voltage U0300 V
-
Weight413 kg/km
Dane CPR (Construction Products Regulation)
-
Numer notyfikowanego laboratorium badawczego CE:0767
-
Numer referencyjny DoP (DWU)UILCPRDoP17_0037100-1_A
-
Oznaczenie produktuUNITRONIC LiHH 5x0,14
-
Reakcja na ogień:Eca
-
Zharmonizowana specyfikacja techniczna (norma):EN 50575:2014 + A1:2016
Hersteller-Details
-
HerstellerLapp Kabel Sp. z o.o.
-
Adresse55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
-
Steueridentifikationsnummer8971621588
